| Material | Cold Rolled Stainless Steel Sheet (SUS304) |
| Country of Origin | Japan |

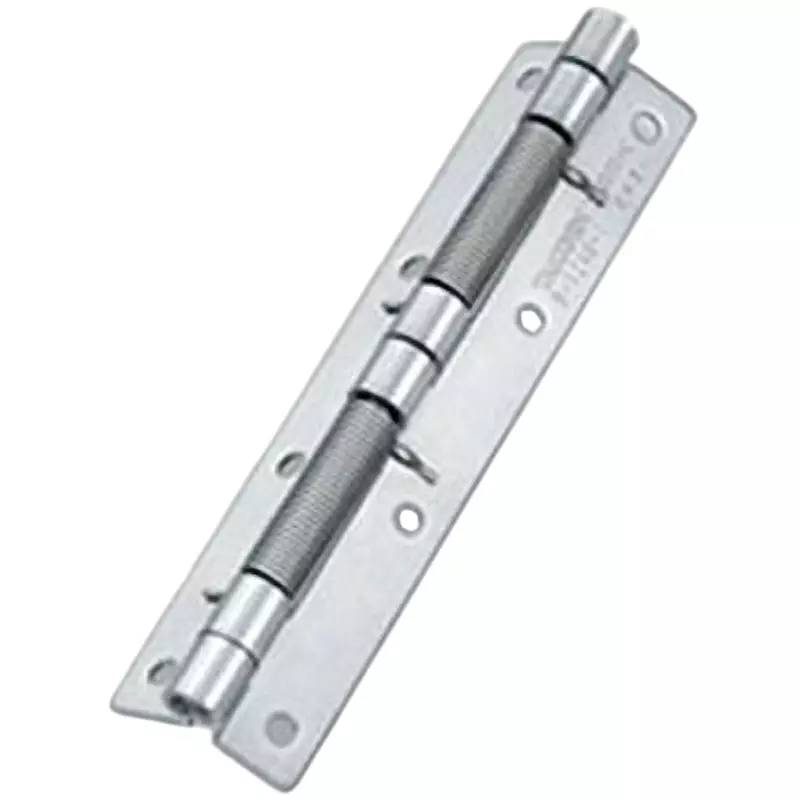

| Type of Product | Hinge with Spring |
| Model No | B-1246-1 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Material |
Cold Rolled Stainless Steel Sheet (SUS304) |
Country of Origin |
Japan |
Type of Product |
Hinge with Spring |
Model No |
B-1246-1 |
Weight |
222 g |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Surface Finish Type |
Glossy Barrel Polishing |
Monotaro ID |
61113264 |

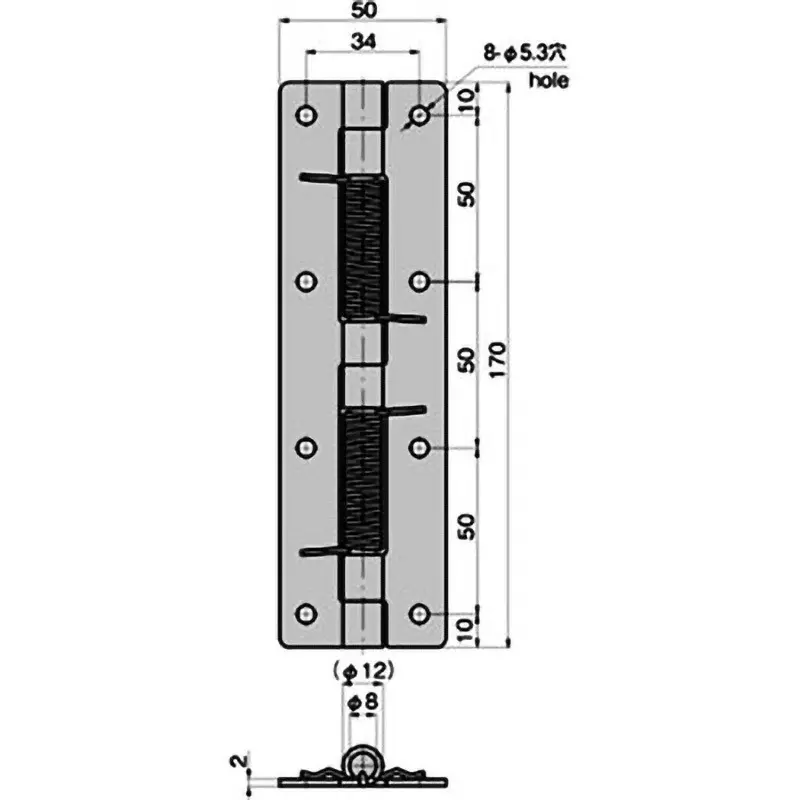

Dimensions w (mm) |
50 |
Dimension d2 (Φmm) |
12 |
Dimension L (mm) |
170 |
TAKIGEN Code |
13257 |
Dimensions T (mm) |
2 |
Dimension d1 (Φmm) |
8 |
Dimension P2 (mm) |
50 |
Dimension P1 (mm) |
50 |
Dimension P3 (mm) |
34 |
N |
8 |
Rated Torque (cNm) |
90°:40.4, 180°:20.1 |
