| Suitable For | Pan/Binding Screw |
| Country of Origin | Japan |
| Color | Ivory |

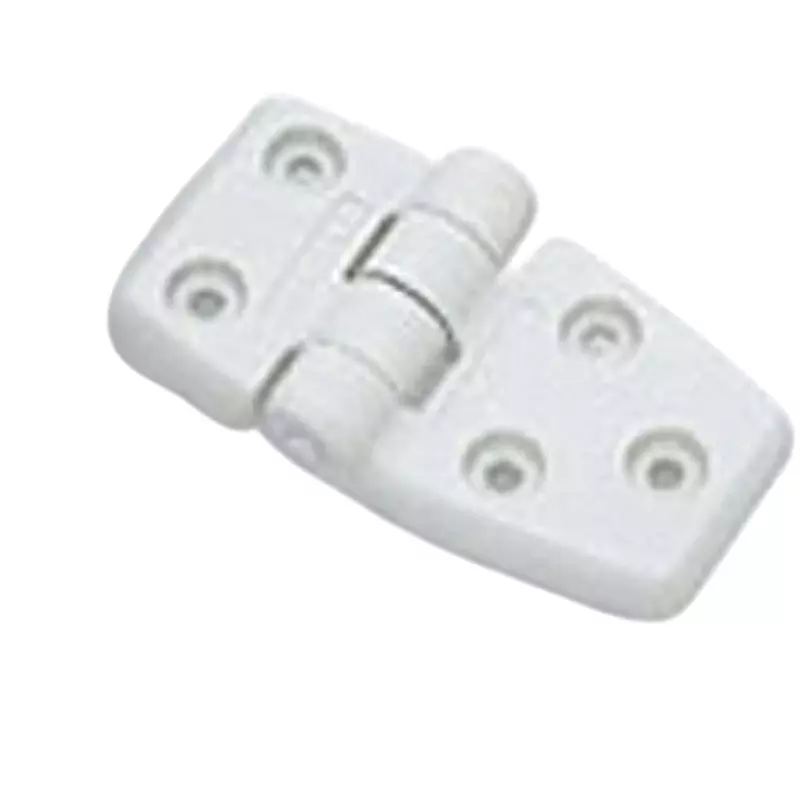

| Type of Product | Marine Hinge |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Suitable For |
Pan/Binding Screw |
Country of Origin |
Japan |
Color |
Ivory |
Type of Product |
Marine Hinge |
Model No |
BP-19-2-1-B-Ivory |
Weight |
10 g |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Monotaro ID |
62802757 |

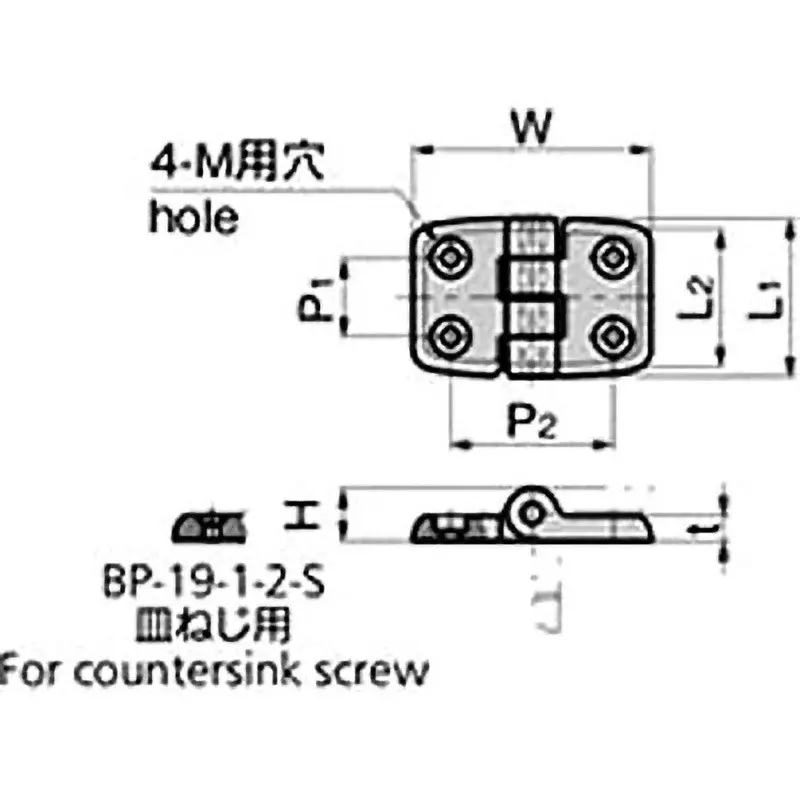

Dimensions T (mm) |
7.5 |
Dimensions L1 (mm) |
50 |
Dimensions l2 (mm) |
37 |
Dimension P2 (mm) |
50 |
Standard Color |
Ivory |
Dimension P1 (mm) |
30 |
Material (Fan Blade) |
Polyamide (PA) |
Dimensions H (mm) |
15.5 |
Dimension L3 (mm) |
45 |
Dimensions W2 (mm) |
40 |
Dimension P3 (mm) |
25 |
Dimension W3 (mm) |
60 |
Dimensions W1 (mm) |
100 |
