| Material | Stainless Steel Sheet (SUS304) |
| Country of Origin | Japan |
| Type of Product | Insertion/Extraction Hinge |
| Model No | B-1005-1-L |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Material |
Stainless Steel Sheet (SUS304) |
Country of Origin |
Japan |
Type of Product |
Insertion/Extraction Hinge |
Model No |
B-1005-1-L |
Weight |
25 g, 4 g (Reference Door When Using 2 Vertical) |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Surface Finish Type |
Mirror Buffing |
Monotaro ID |
62805322 |

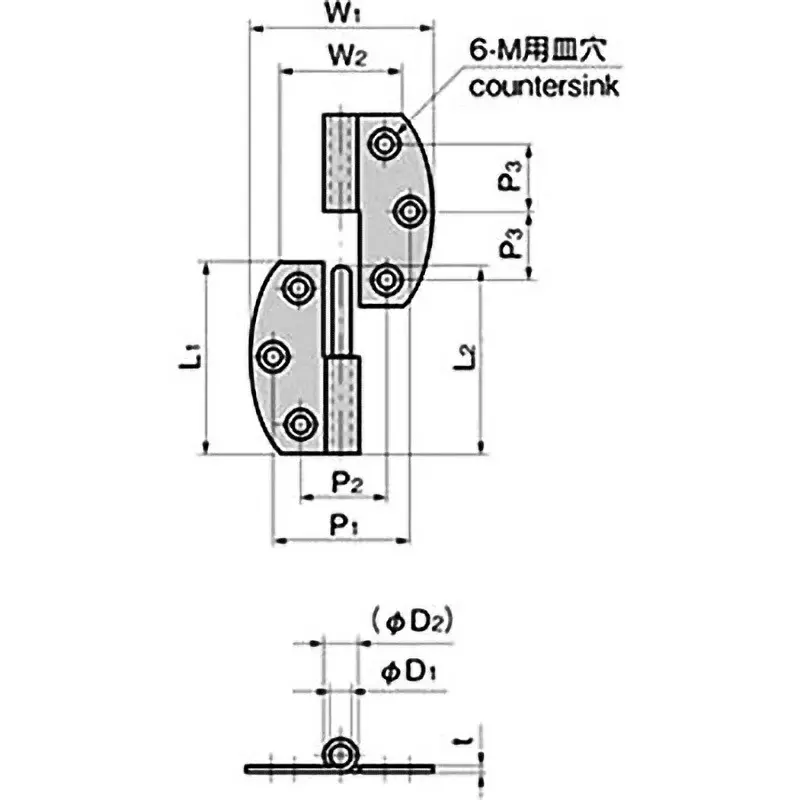

Dimension d2 (Φmm) |
6.6 |
TAKIGEN Code |
10569 |
Dimensions T (mm) |
1.2 |
Dimension d1 (Φmm) |
4 |
Dimensions L1 (mm) |
40 |
Dimensions l2 (mm) |
39 |
Dimension P2 (mm) |
18 |
Dimension M |
M3 |
Dimension P1 (mm) |
28 |
Dimensions W2 (mm) |
26 |
Dimension P3 (mm) |
14 |
Dimensions W1 (mm) |
38 |
Left or Right |
Left Type |
