| Country of Origin | Japan |

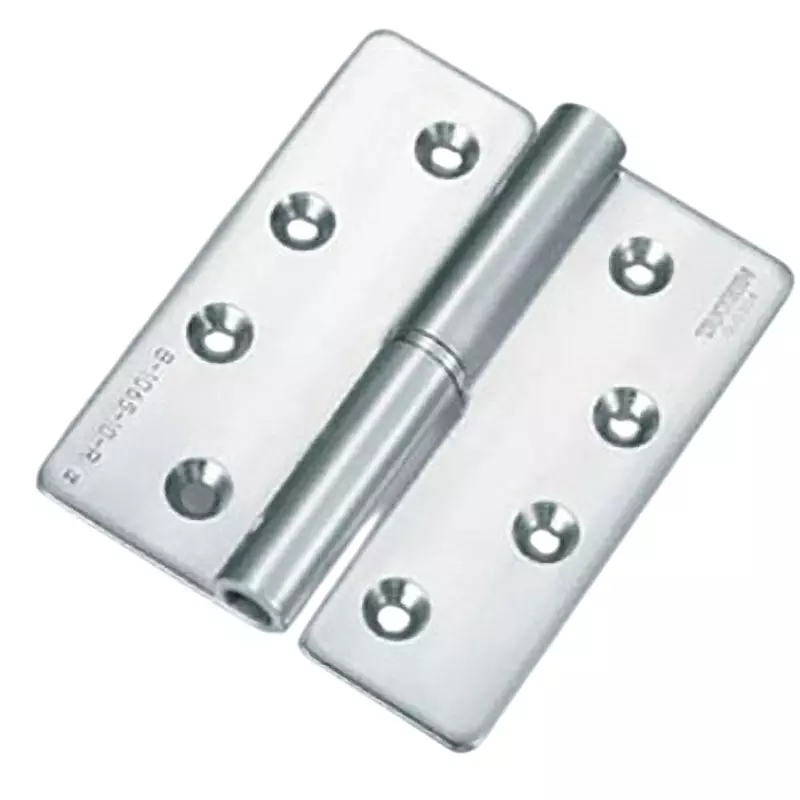

| Type of Product | Heavy Duty Hinge |
| Model No | B-1065-10-R |
| Weight | 60 Kg (Reference Door When Using 2 Vertical) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Type of Product |
Heavy Duty Hinge |
Model No |
B-1065-10-R |
Weight |
60 Kg (Reference Door When Using 2 Vertical) |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Surface Finish Type |
Mirror Buffing |
Monotaro ID |
61111733 |

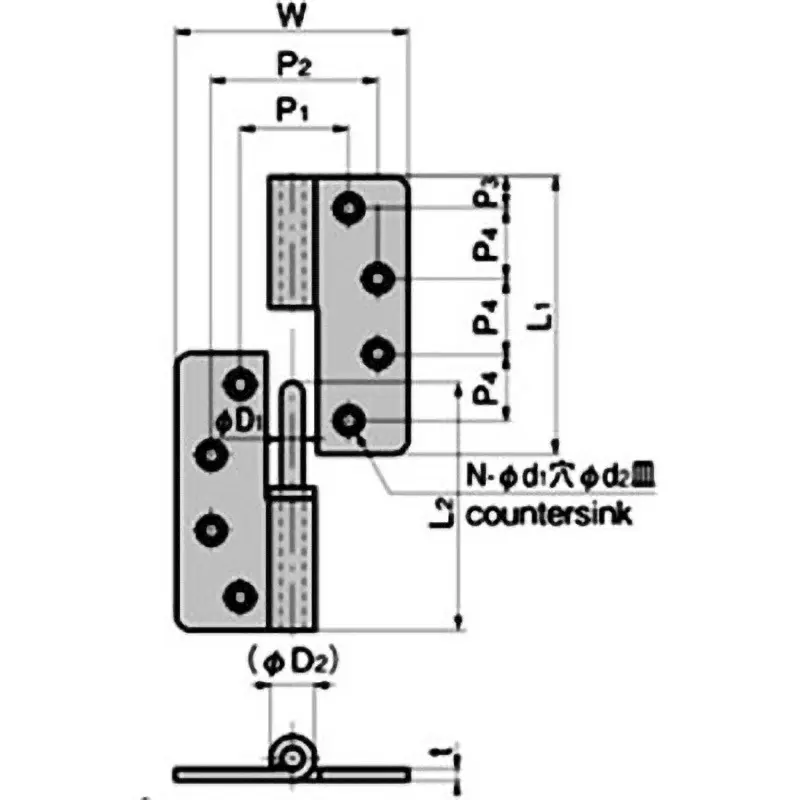

Dimensions w (mm) |
100 |
Dimension d2 (Φmm) |
17.5 |
TAKIGEN Code |
13036 |
Dimensions T (mm) |
4 |
Dimension d1 (Φmm) |
9 |
Dimensions L1 (mm) |
125 |
Dimensions l2 (mm) |
115 |
Dimension P4 (mm) |
30 |
Left or Right |
Right Type |
Number of Holes |
8 |
