| Country of Origin | Japan |

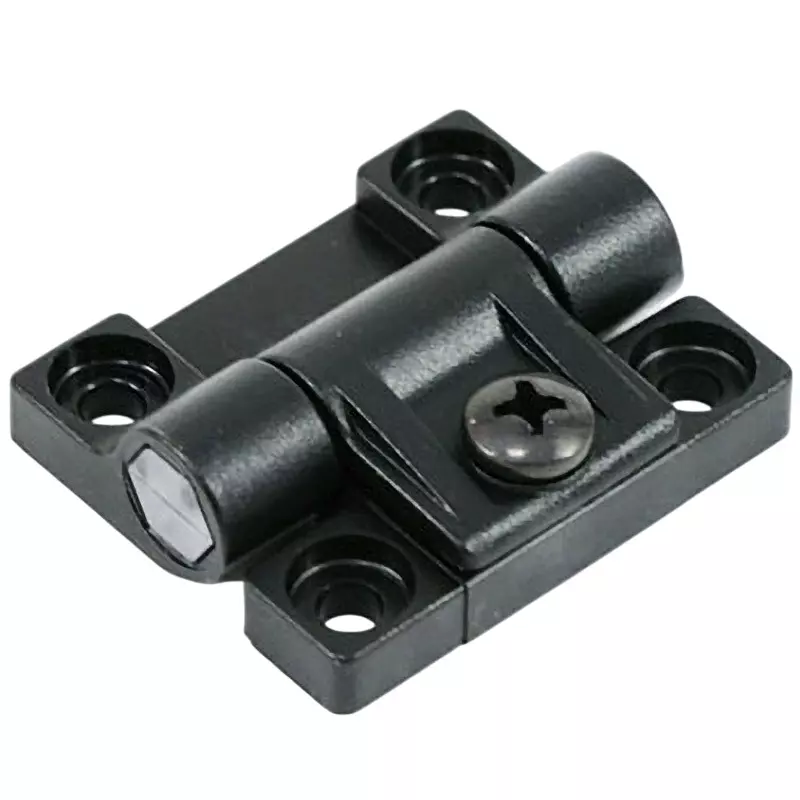

| Type of Product | Flat Torque Hinge |
| Model No | BP-148-2 |
| Weight | 15 g |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Type of Product |
Flat Torque Hinge |
Model No |
BP-148-2 |
Weight |
15 g |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Monotaro ID |
61107953 |

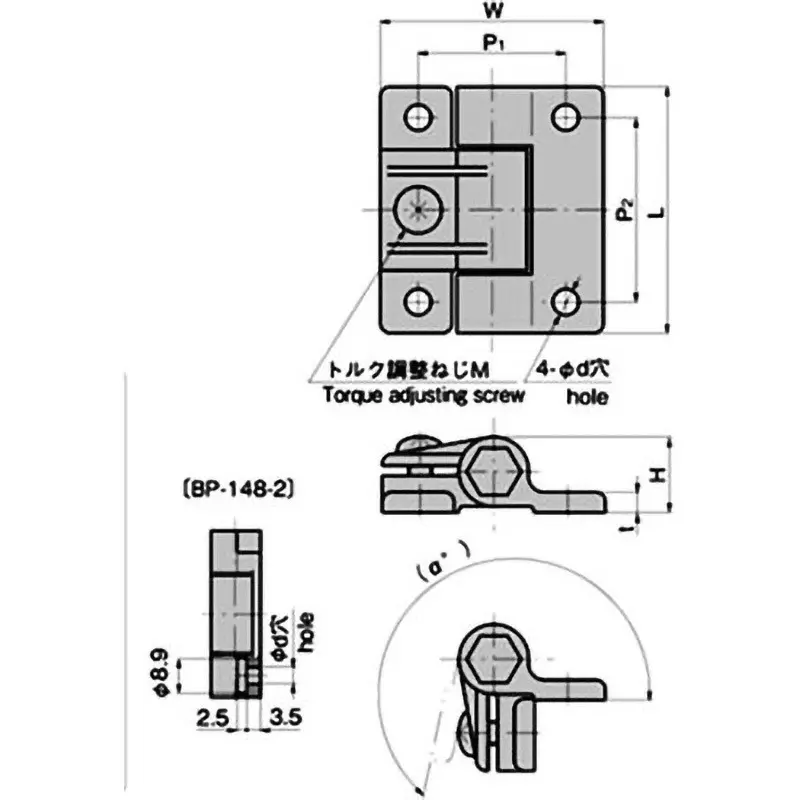

Dimensions w (mm) |
36.5 |
Dimension L (mm) |
43 |
TAKIGEN Code |
13135 |
Dimensions T (mm) |
6 |
Dimension P2 (mm) |
31.7 |
Dimension M |
M5 |
Dimension P1 (mm) |
25.5 |
Dimensions H (mm) |
12.7 |
Main Unit Material |
Polyacetal (POM / UL94-HB) |
Nut Material |
Stainless Steel (SUS) |
Screw Material |
Stainless Steel (SUS) |
Rated torque (Nm) |
0 to 0.8 |
Dimension α(°) |
260 |
