| Material | Zinc Alloy (ZDC) |
| Country of Origin | Japan |
| Type of Product | Vertical Insertion Hinge |
| Model No | B-66-4 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Material |
Zinc Alloy (ZDC) |
Country of Origin |
Japan |
Type of Product |
Vertical Insertion Hinge |
Model No |
B-66-4 |
Weight |
12 g |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Surface Finish Type |
Chrome Plating (MZCr) |
Monotaro ID |
61106185 |

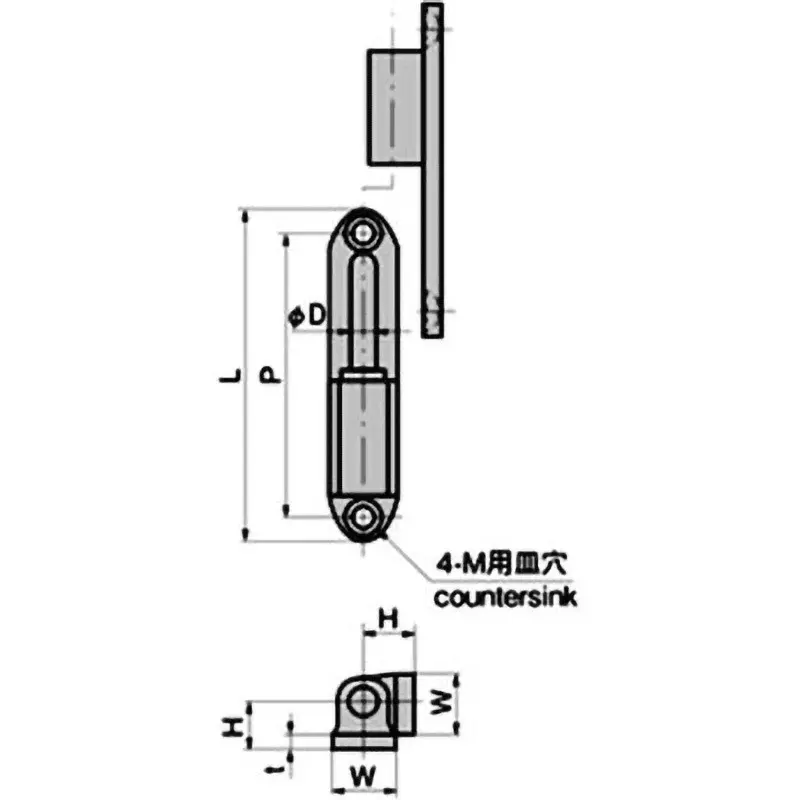

Dimensions w (mm) |
8 |
Dimension L (mm) |
35 |
TAKIGEN Code |
11193 |
Dimensions T (mm) |
2 |
Dimension D (Φmm) |
3 |
Dimension M |
M3 |
Dimensions H (mm) |
6 |
Dimensions P (mm) |
27 |
Allowable Load (kg) |
2 Kg (When Using 2 Vertical Positions) |
