| Country of Origin | Japan |

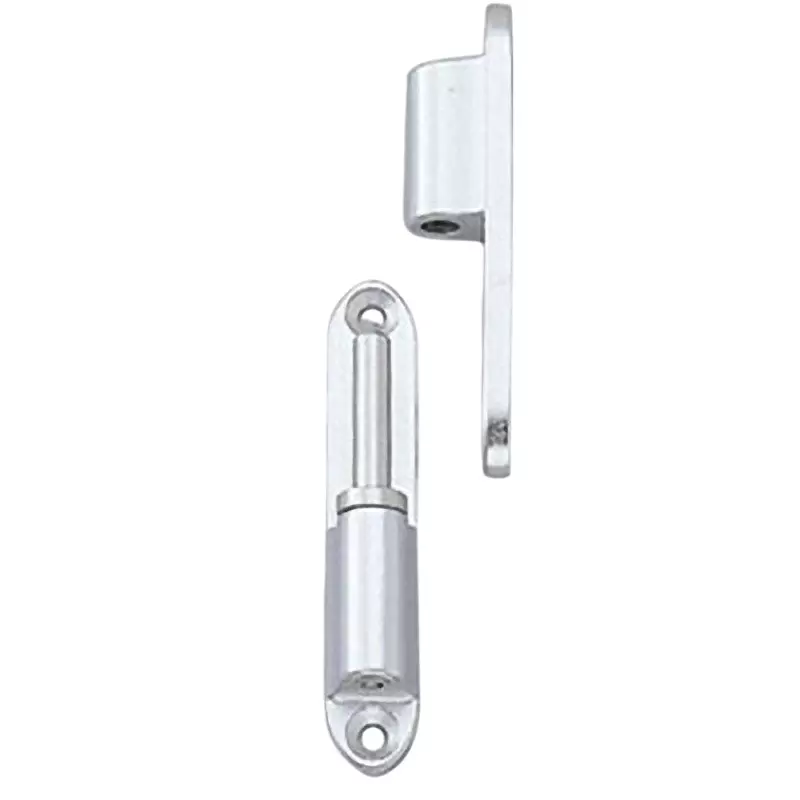

| Type of Product | Vertical Insertion Hinge |
| Model No | B-1066-1 |
| Weight | 95 g, 10 g (Reference Door When Using 2 Vertical) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Type of Product |
Vertical Insertion Hinge |
Model No |
B-1066-1 |
Weight |
95 g, 10 g (Reference Door When Using 2 Vertical) |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Surface Finish Type |
Gloss Barrel Polishing |
Monotaro ID |
61111828 |

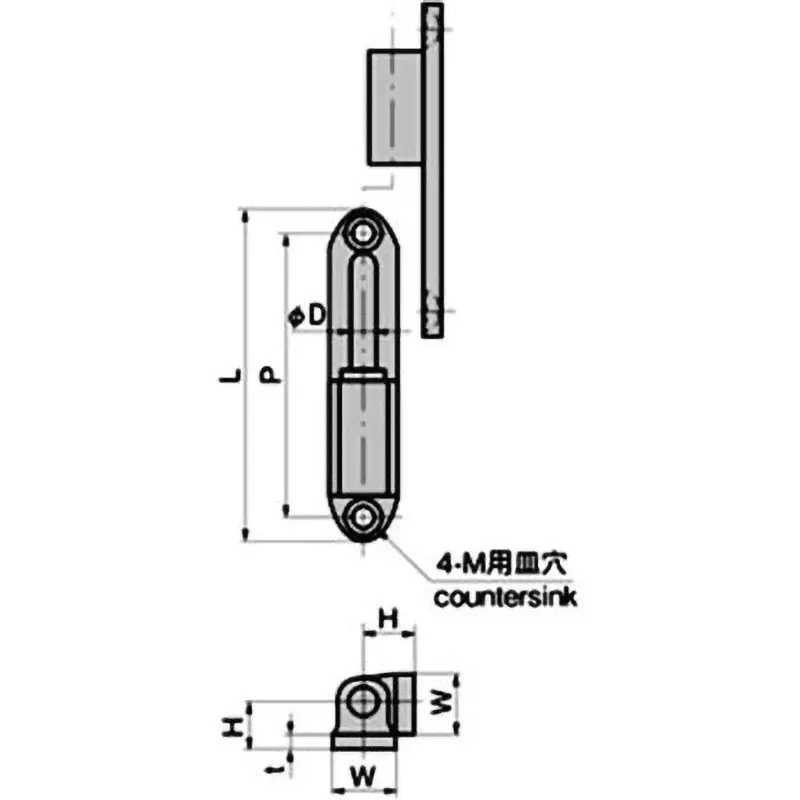

Dimensions w (mm) |
14.5 |
Dimension L (mm) |
80 |
TAKIGEN Code |
13060 |
Dimensions T (mm) |
4.5 |
Dimension D (Φmm) |
6 |
Dimension M |
M4 |
Dimensions H (mm) |
11.5 |
Main Unit Material |
Stainless Steel Casting (SUS316) |
Dimensions P (mm) |
68 |
