| Material | Body: Aluminum Alloy (ADC), Cosmetic Cover: ABS Resin with Antibacterial Agent |
| Country of Origin | Japan |
| Type of Product | Corner Lift Hinge (Antibacterial Type) |
| Model No | FB-744-1 (old number FB-744) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Material |
Body: Aluminum Alloy (ADC), Cosmetic Cover: ABS Resin with Antibacterial Agent |
Country of Origin |
Japan |
Type of Product |
Corner Lift Hinge (Antibacterial Type) |
Model No |
FB-744-1 (old number FB-744) |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Surface Finish Type |
Body: Antibacterial Baking |
Monotaro ID |
62820153 |

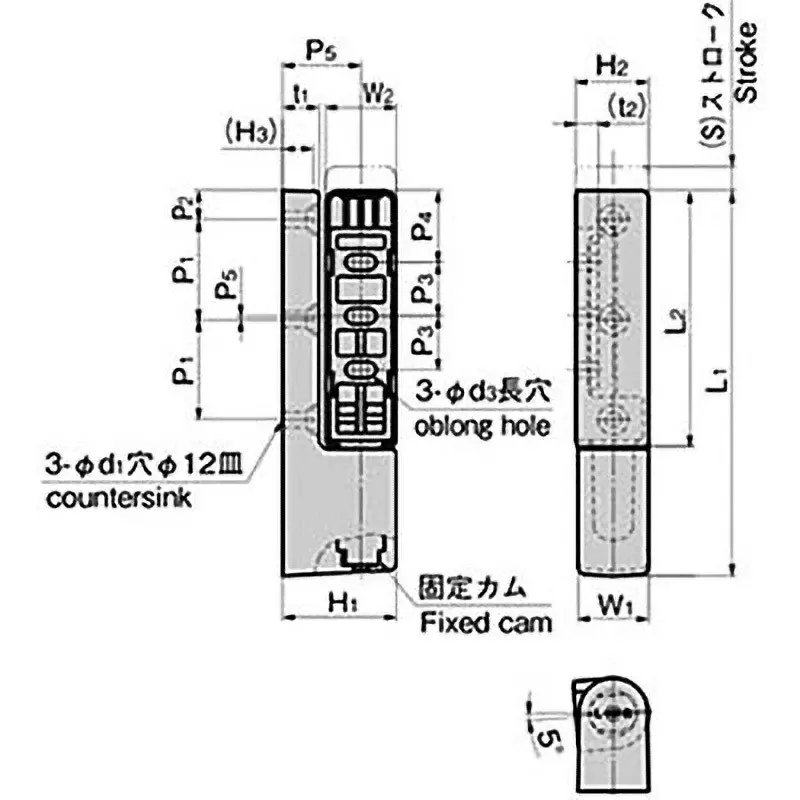

Dimensions L1 (mm) |
158 |
Dimensions l2 (mm) |
105 |
Dimensions W2 (mm) |
29 |
Dimension P4 (mm) |
29.5 |
Dimensions W1 (mm) |
28 |
Dimension P5 (mm) |
32 |
Dimensions H2 (mm) |
30 |
Dimensions H1 (mm) |
44.5 |
Dimension H3 (mm) |
13 |
Dimension t1 (mm) |
15 |
Dimension t2 (mm) |
9 |
Dimensions s (mm) |
10 |
