| Material | Steel Plate Cold Commercial (SPCC) |
| Country of Origin | Japan |

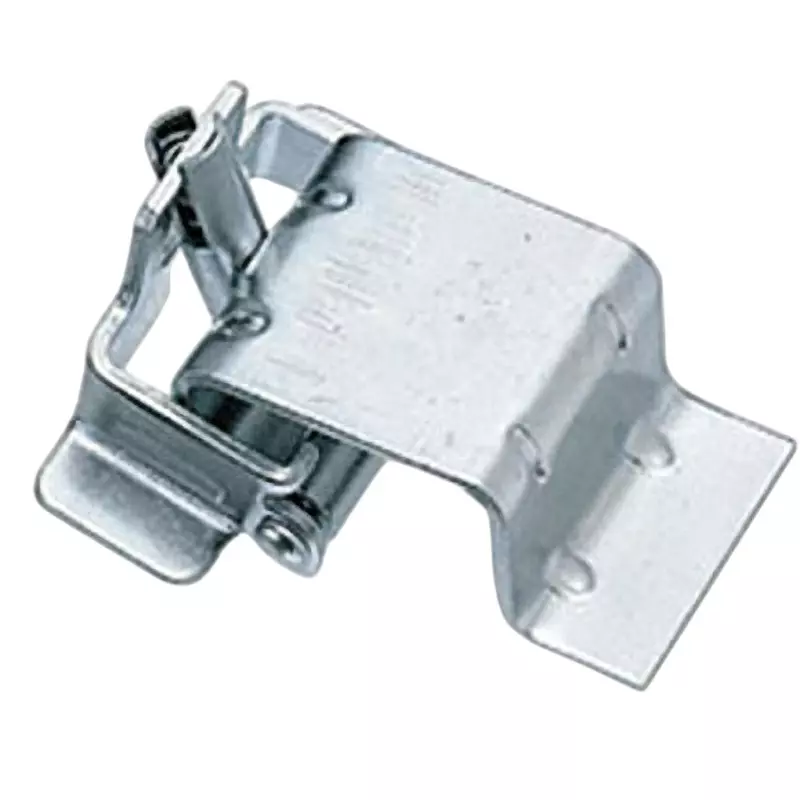

| Type of Product | Square Back Hinge with Spring |
| Model No | B-81-1 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Material |
Steel Plate Cold Commercial (SPCC) |
Country of Origin |
Japan |
Type of Product |
Square Back Hinge with Spring |
Model No |
B-81-1 |
Weight |
330 g, 20 g (Reference Door When Using 2 Vertical) |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Surface Finish Type |
Zinc Plating Chromate Treatment (MFZn-C) |
Monotaro ID |
61106544 |

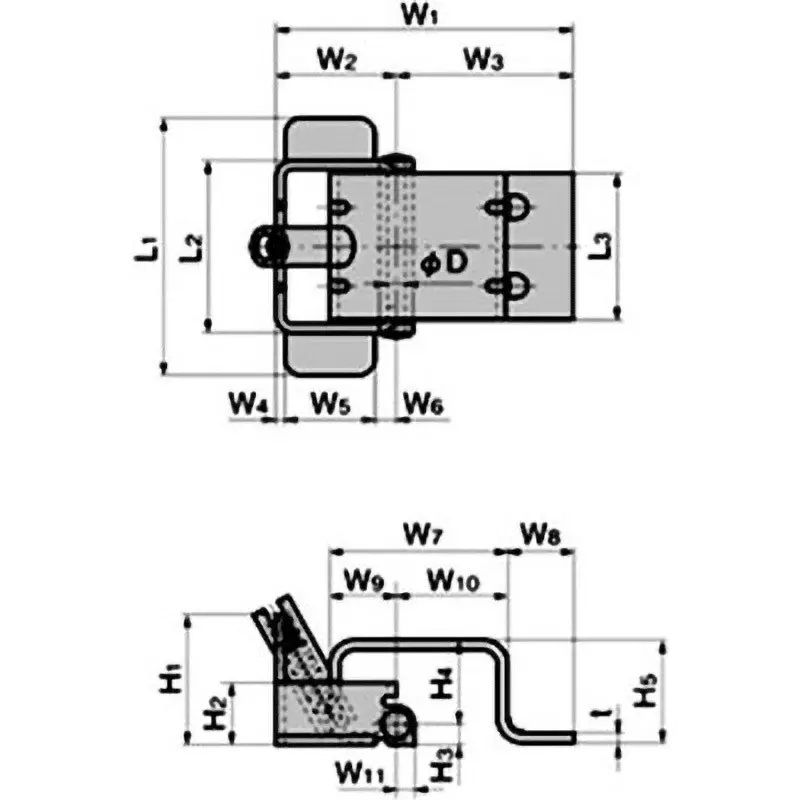

Dimensions T (mm) |
3.2 |
Dimension D (Φmm) |
6 |
Dimensions L1 (mm) |
86 |
Dimensions l2 (mm) |
59 |
Dimension L3 (mm) |
50 |
Dimensions W2 (mm) |
40 |
Dimension W3 (mm) |
58 |
Dimensions W1 (mm) |
98 |
Dimensions H2 (mm) |
21 |
Dimensions H1 (mm) |
44 |
Dimension W4 (mm) |
3 |
Dimension H3 (mm) |
7 |
Dimension W5 (mm) |
30 |
Dimension W6 (mm) |
7 |
Dimension H5 (mm) |
35 |
Dimension H4 (mm) |
28 |
