| Material | Aluminum Alloy (ADC) |
| Country of Origin | Japan |

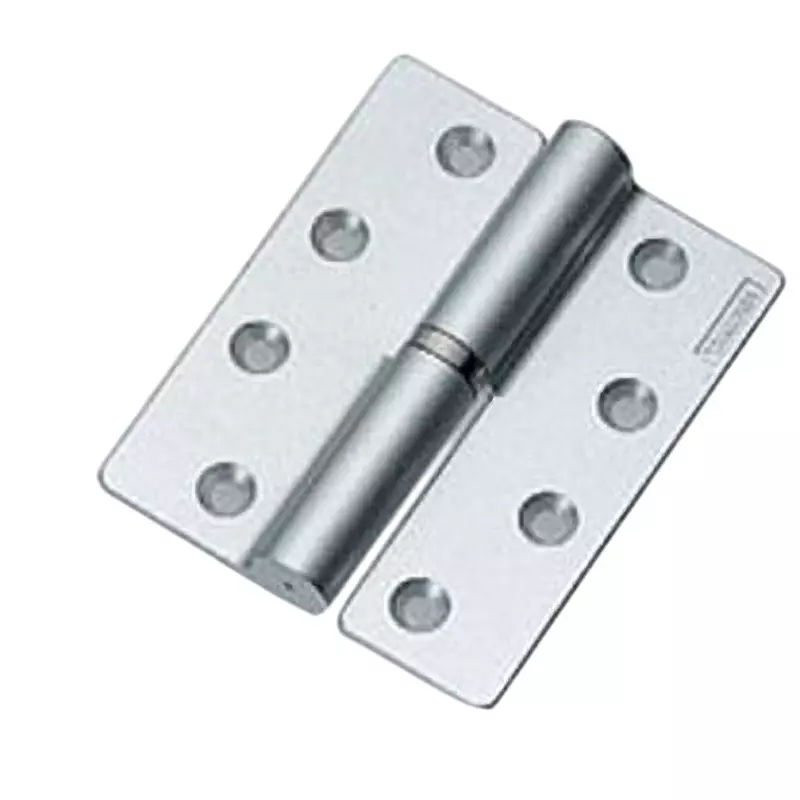

| Type of Product | Heavy Duty Insertion Hinge |
| Model No | B-67-1-L |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Material |
Aluminum Alloy (ADC) |
Country of Origin |
Japan |
Type of Product |
Heavy Duty Insertion Hinge |
Model No |
B-67-1-L |
Weight |
110 g, 30 g (Reference Door When Using 2 Vertical) |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Surface Finish Type |
Silver Satin Paint |
Monotaro ID |
61106194 |

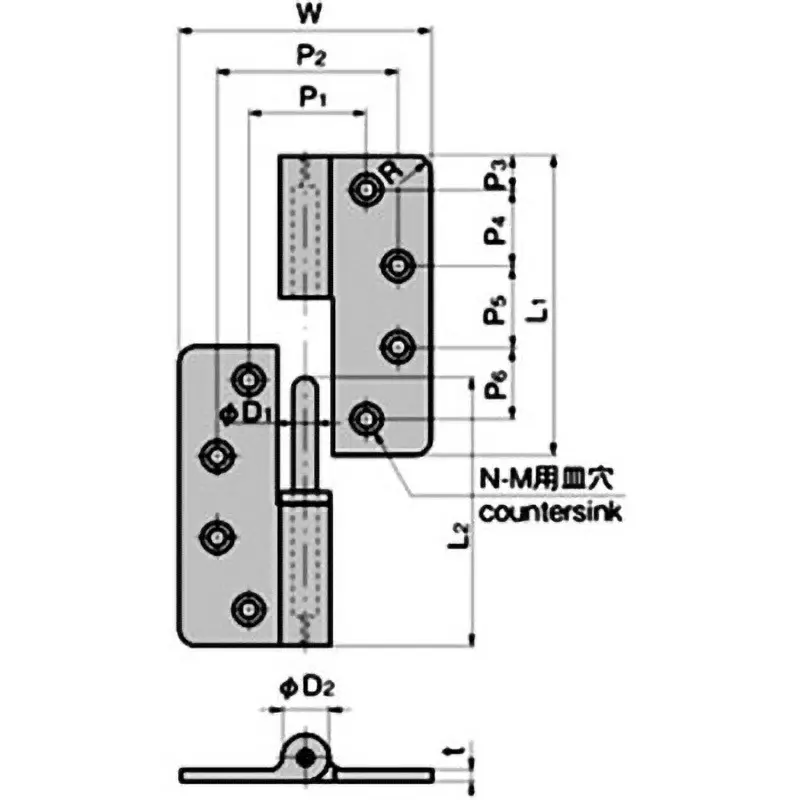

Dimensions w (mm) |
82 |
Dimension d2 (Φmm) |
16 |
Dimensions T (mm) |
4 |
Dimension d1 (Φmm) |
8 |
Dimensions L1 (mm) |
100 |
Dimensions l2 (mm) |
90 |
Dimension P2 (mm) |
60 |
Dimension M |
M5 |
Dimension P1 (mm) |
40 |
Dimension P3 (mm) |
11 |
Dimension P4 (mm) |
Φ26 |
Dimension n (mm) |
8 |
Left or Right |
Left Type |
Dimension P5 (mm) |
Φ26 |
Dimensions R (mm) |
3 |
Dimension P6 (mm) |
Φ26 |
