| Country of Origin | Japan |

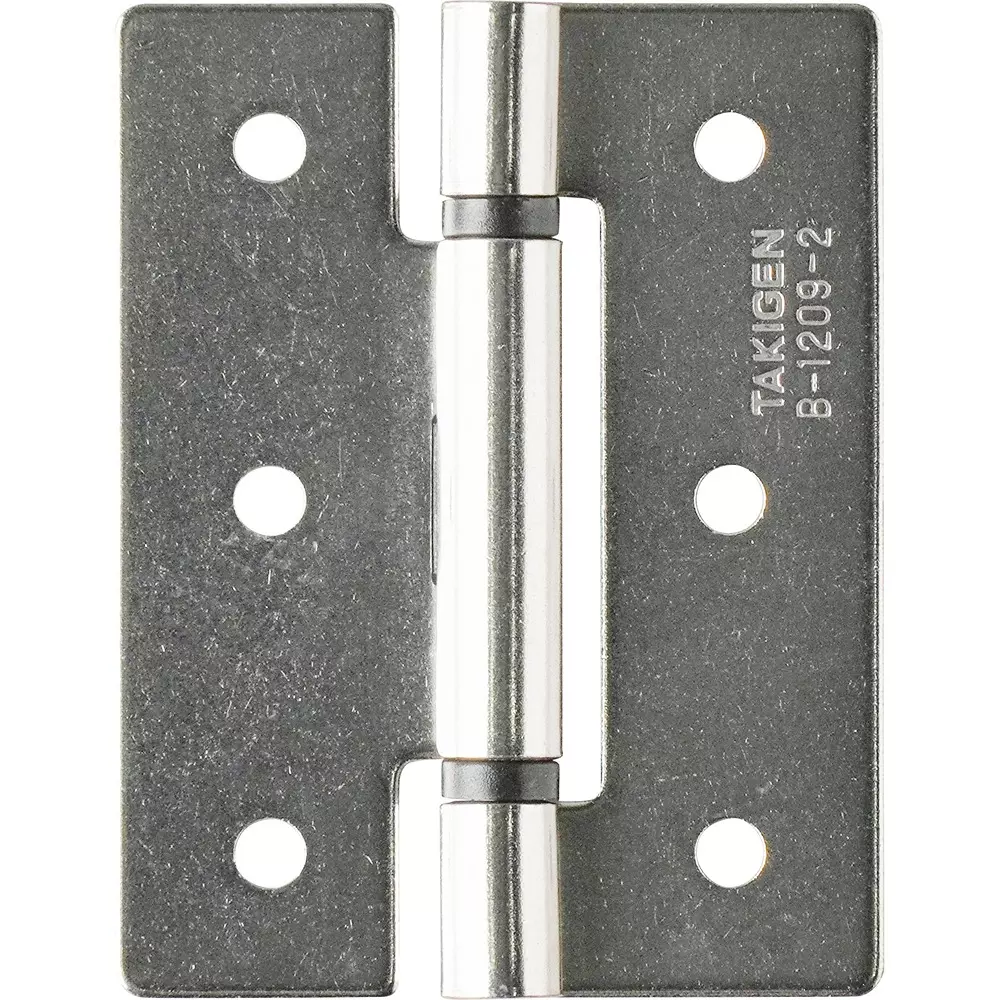

| Type of Product | Flat Torque Hinge |
| Model No | B-1209-2 |
| Weight | 50 g |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Type of Product |
Flat Torque Hinge |
Model No |
B-1209-2 |
Weight |
50 g |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Surface Finish Type |
Gloss Barrel Polishing |
Monotaro ID |
61113088 |
Dimensions w (mm) |
50 |
Dimension L (mm) |
65 |
TAKIGEN Code |
13265 |
Dimensions T (mm) |
1.5 |
Dimension D (Φmm) |
8 |
Dimension P2 (mm) |
23 |
Dimension P1 (mm) |
30 |
Material (Fan Blade) |
Cold Rolled Stainless Steel (SUS304) |
Dimensions H (mm) |
4 |
Dimension P3 (mm) |
23 |
Dimension n (mm) |
6 |
Plug Material |
Polyacetal (POM) |
Operating Temperature Range |
0 to 40 |
Rated Torque (cNm) |
(Load) 98 ± 20% |
Endurance Times |
20,000 times or more (at Rated Torque) |
