| Material | Blade: Aluminum Alloy Extruded Material (A6N01S), Shaft / Stainless Steel |
| Country of Origin | Japan |
| Type of Product | Extruded Flat Hinge |
| Model No | B-205-3 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Material |
Blade: Aluminum Alloy Extruded Material (A6N01S), Shaft / Stainless Steel |
Country of Origin |
Japan |
Type of Product |
Extruded Flat Hinge |
Model No |
B-205-3 |
Weight |
18 g |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Surface Finish Type |
Alumite Treatment |
Monotaro ID |
62803965 |

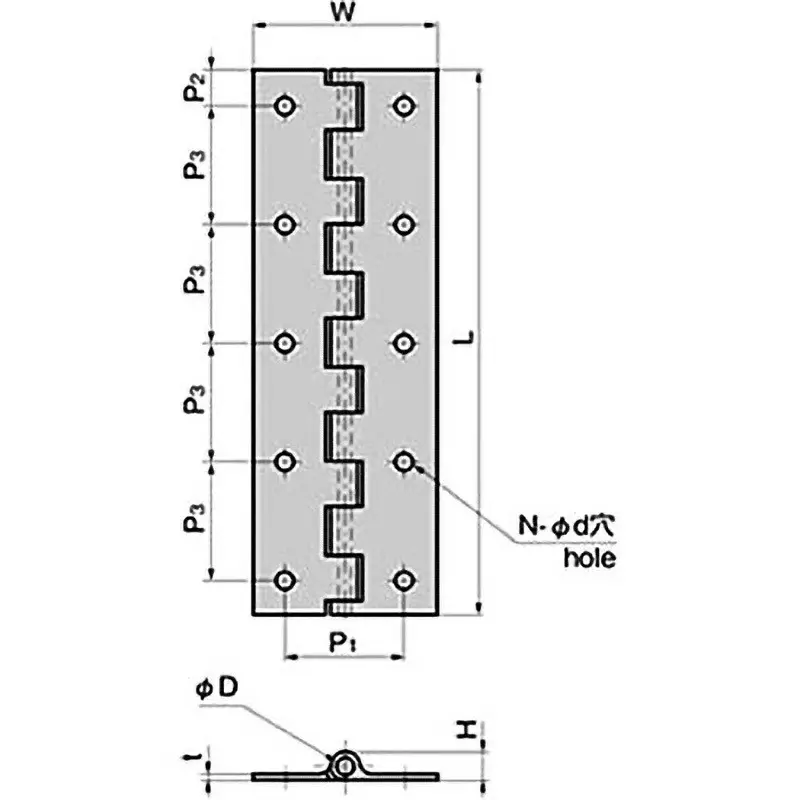

Dimensions w (mm) |
38 |
Dimension L (mm) |
100 |
TAKIGEN Code |
10407 |
Dimensions T (mm) |
1.2 |
Dimension D (Φmm) |
2 |
Dimension P2 (mm) |
9.5 |
Dimension P1 (mm) |
25 |
Dimensions H (mm) |
4.7 |
Dimension P3 (mm) |
27 |
Dimension n (mm) |
8 |
