| Material | Stainless Steel Sheet (SUS304) |
| Country of Origin | Japan |
| Type of Product | 3-Tube Type Hinge |
| Model No | B-1528-B-2 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Material |
Stainless Steel Sheet (SUS304) |
Country of Origin |
Japan |
Type of Product |
3-Tube Type Hinge |
Model No |
B-1528-B-2 |
Weight |
194 g |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Surface Finish Type |
Phosphate |
Monotaro ID |
62806652 |

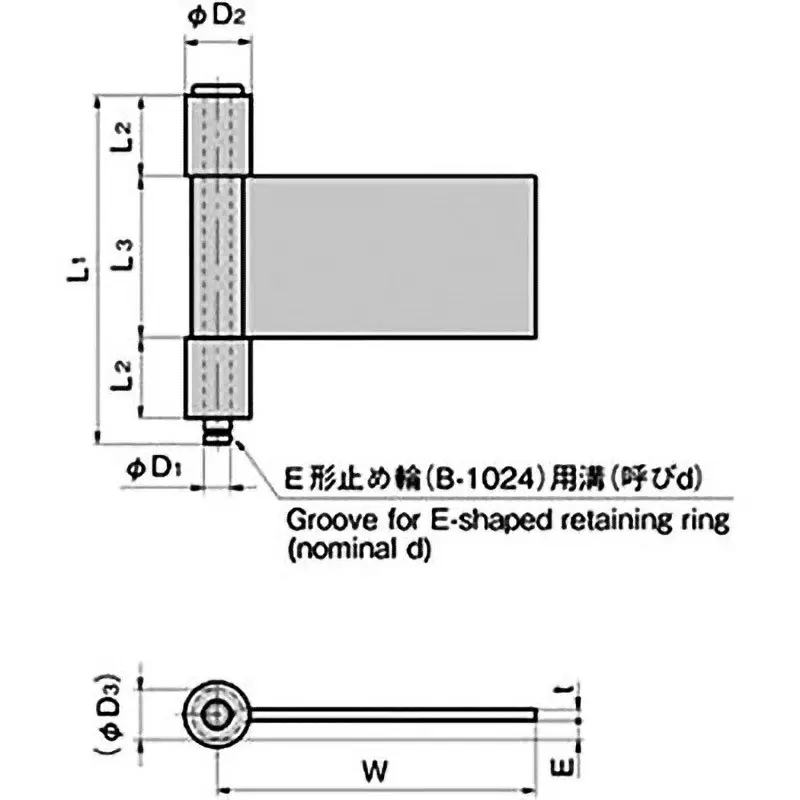

Dimensions w (mm) |
100 |
Dimension d2 (Φmm) |
14 |
TAKIGEN Code |
12992 |
Dimensions T (mm) |
3 |
Dimension d1 (Φmm) |
6 |
Door Dimensions, Height x Width (mm) |
600x300 |
Dimensions L1 (mm) |
85 |
Dimensions l2 (mm) |
20 |
Dimension L3 (mm) |
40 |
Dimension d3 (Φmm) |
12.2 |
Dimensions E (mm) |
4.7 |
