| Type | Non-Illuminated Type |
| Protection Class | Panel front: IP65 (IEC60529), Panel back: IP40, IP54 (when using terminal waterproof cover) (IEC60529) |
| Storage Temperature | -30-80°C (No Icing) |

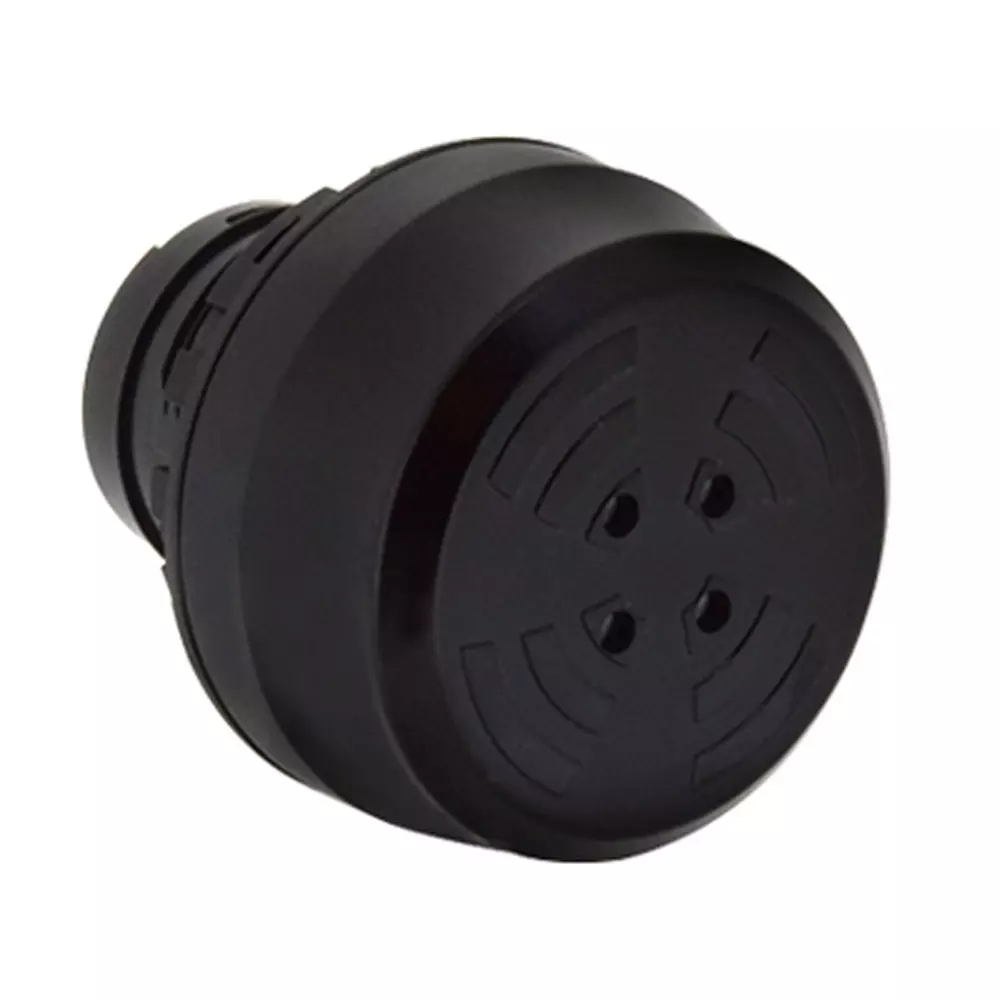

| Type of Product | HW1Z type illuminated/non-illuminated buzzer |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
Non-Illuminated Type |
Protection Class |
Panel front: IP65 (IEC60529), Panel back: IP40, IP54 (when using terminal waterproof cover) (IEC60529) |
Storage Temperature |
-30-80°C (No Icing) |
Type of Product |
HW1Z type illuminated/non-illuminated buzzer |
Model No |
HW1Z-2PQ4B |
Country of Origin |
Japan |
Monotaro ID |
48000760 |
Rated Operating Voltage (V) |
DC12 - 24 |
Terminal Shape |
Push-In Terminal |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Import Country |
Direct Import from Japan |
Specifications |
Intermittent Cycle (At 25°C): Approx. 105 Times/Min (Approx. 1.75Hz) |
Insulation_Resistance (MΩ) |
100 MΩ or more (with DC500V mega) |
Operation Ambient Temperature (°C) |
-20 To 50°C (But Not Freezing) |
Rated Insulation Voltage (V) |
30 V |
Operating Ambient Humidity (% RH) |
20 To 85 (No Condensation) |
Vibration Resistance (Malfunction) |
5-55 Hz, Single Amplitude 0.5 mm |
Impact Resistance (Malfunction) (m/s²) |
100 |
Impact Resistance (Durability) (m/s²) |
1000 |
Operations |
Continuous sound |
Inrush current (A) |
0.1 or less |
Acoustic Frequency (Hz) |
2200 - 2450(at 25℃) |
Sound Pressure Level (dB) |
Minimum 90 at 0.1m (value for stand-alone product, at 25°C, when 24V DC is applied), minimum 70 at 1m (value for stand-alone product, at 25°C, when 24V DC is applied, converted value), minimum 84 at 0.1m (value for stand-alone product, at 25°C, when 12V DC is applied), minimum 64 at 1m (value for stand-alone product, at 25°C, when 12V DC is applied, converted value) |
Connectable Wire (mm2) |
Solid wire, stranded wire, stranded wire with ferrules (without insulation cover): 0.2 to 1.5, AWG24-16 Stranded wire with ferrules (with insulation cover): 0.2 to 0.75, AWG24-18 |
Vibration Resistance (Destruction) |
5-55 Hz, Single Amplitude 0.5 mm |
Withstand voltage (V) |
Between live part and grounded metal: AC1000 for 1 minute |
