Height | 9.5 mm |
Depth | 21 mm |

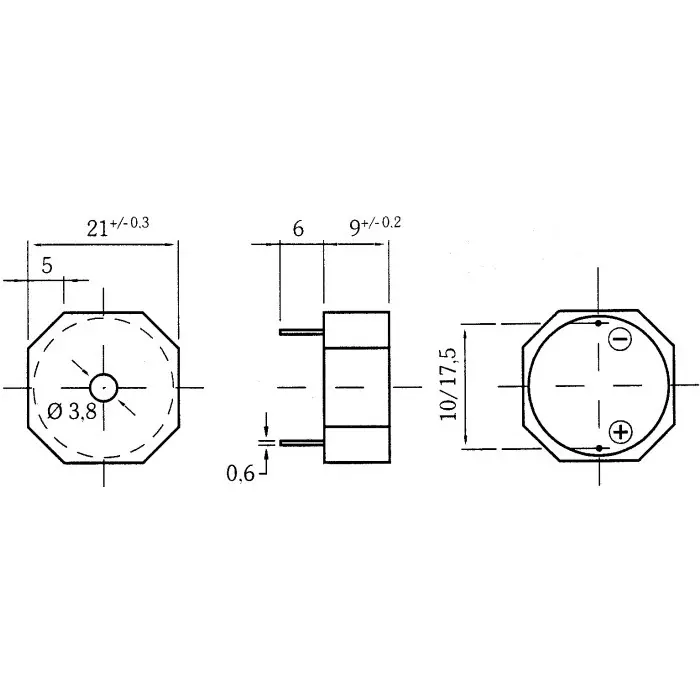

Dimension | 21x21x9.5 mm |
Mounting Type | Through Hole |
Height |
9.5 mm |
Depth |
21 mm |
Dimension |
21x21x9.5 mm |
Mounting Type |
Through Hole |
Type of Product |
Internal Buzzer |
Length |
21 mm |
Country of Origin |
Belgium |
Supply Current |
3.8 mA |
Drive Type |
Internal |
Maximum Operating Temperature |
+70°C |
Sound Level |
85dB |
Minimum Operating Temperature |
-20°C |
Tone Type |
Continuous |
Name of Manufacturer/Packer/Importer |
Sonitron |
Manufacturer Part Number |
SMA-21-P17.5 |
Maximum Supply Voltage |
15 V DC |
Minimum Supply Voltage |
1.5 V DC |
Product Code |
1895023 |
Distrelec Product Id |
13778834 |
Minimum Frequency |
3285Hz |
Maximum Frequency |
3.315 kHz |
