Height | 26 mm |
Dimension | 36.5 (Dia.)x26 mm |
Mounting Type | Panel Mount |

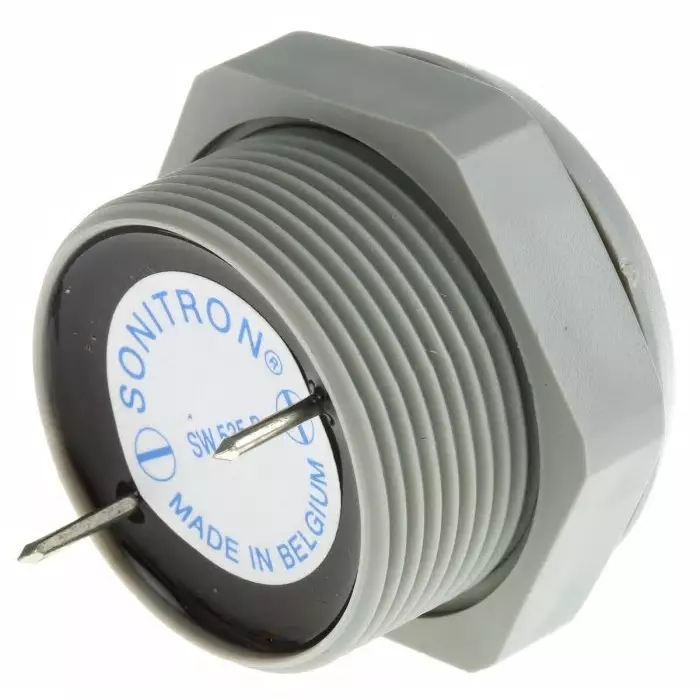

Type of Product | Internal Buzzer |
Height |
26 mm |
Dimension |
36.5 (Dia.)x26 mm |
Mounting Type |
Panel Mount |
Type of Product |
Internal Buzzer |
Country of Origin |
Belgium |
Supply Current |
10.6 mA |
Drive Type |
Internal |
Maximum Operating Temperature |
+75°C |
Sound Level |
87dB |
Minimum Operating Temperature |
-35°C |
Diameter |
36.5 mm |
Tone Type |
Warbler |
Name of Manufacturer/Packer/Importer |
Sonitron |
Manufacturer Part Number |
SW535B |
Maximum Supply Voltage |
35 V DC |
Minimum Supply Voltage |
5 V DC |
Product Code |
1784153 |
Minimum Frequency |
2975Hz |
Maximum Frequency |
4.025 kHz |
