Height | 8.5 mm |
Depth | 17.5 mm |

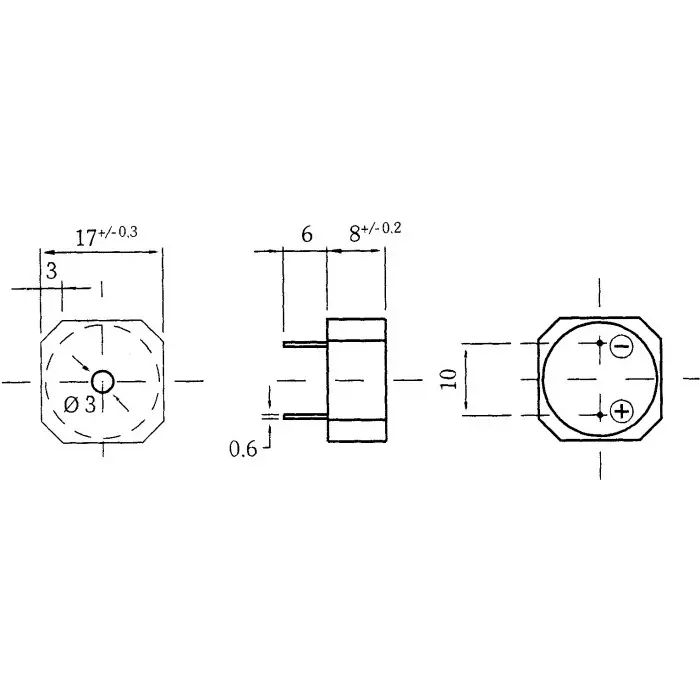

Dimension | 17.5x17.5x8.5 mm |
Mounting Type | Through Hole |
Height |
8.5 mm |
Depth |
17.5 mm |
Dimension |
17.5x17.5x8.5 mm |
Mounting Type |
Through Hole |
Type of Product |
Internal Buzzer |
Length |
17.5 mm |
Country of Origin |
United Kingdom |
Supply Current |
3.3 mA |
Drive Type |
Internal |
Maximum Operating Temperature |
+70°C |
Sound Level |
82dB |
Minimum Operating Temperature |
-20°C |
Tone Type |
Continuous |
Name of Manufacturer/Packer/Importer |
Sonitron |
Manufacturer Part Number |
SMA-17-P10 |
Maximum Supply Voltage |
24 V DC |
Minimum Supply Voltage |
1.5 V DC |
Product Code |
1783986 |
Distrelec Product Id |
13778818 |
Minimum Frequency |
2550Hz |
Maximum Frequency |
3.45 kHz |
