| Type of Product | Plarail Chain HPK Series |
| Material | Nylon 6 + glass 20% |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Nippon Pisco Co., Ltd. |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Plarail Chain HPK Series |
Material |
Nylon 6 + glass 20% |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Pisco Co., Ltd. |
Model No |
HPU408-R200 |
Import Country |
Direct Import from Japan |
Monotaro ID |
10413672 |
RoHS Directive |
Correspondence |
Operating Temperature Range |
-10 to 80°C |
Maximum Free Span (m) |
1.5 |
Cell Spacing (mm) |
45 |
Plarailchain Mass (kg/m) |
1.1000000000000001 |
Maximum Transfer Stroke (m) |
2.9 |
Maximum Cable / Hose Outer Diameter (mm) |
19 |

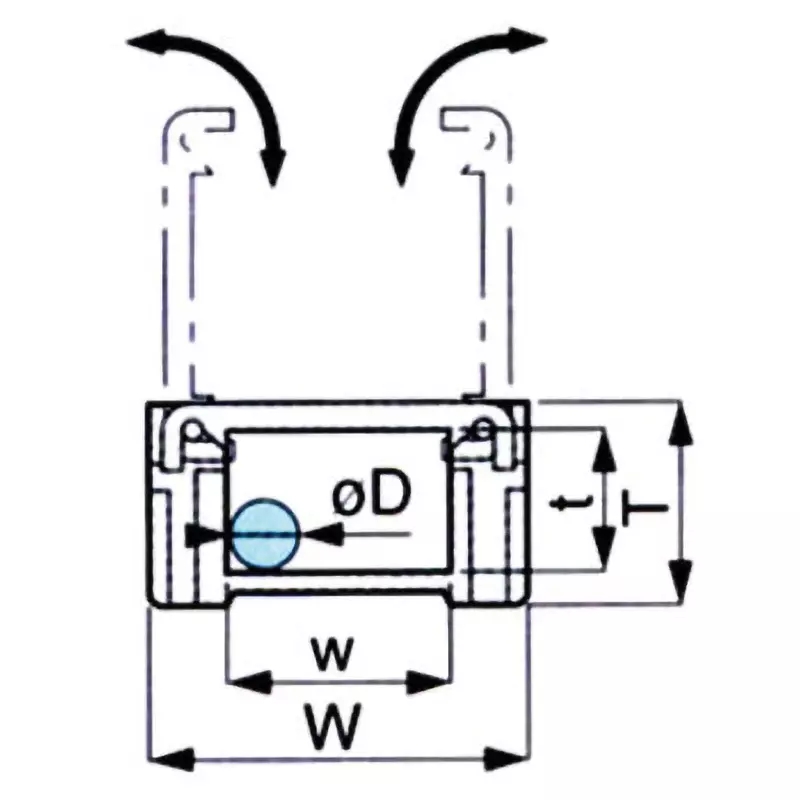

Dimension W |
78 mm |
Maximum Transfer Speed (m/sec) |
2.5 |
Minimum Bending Radius (mm) |
200 |
Number of Links (/m) |
23 |
Dimension T |
24.5 mm |
Maximum Cable / Hose Mass (kg/m) |
5 |
