| Type of Product | Plarail Chain HPK Series |
| Material | Nylon 6 + glass 20% |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Nippon Pisco Co., Ltd. |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Plarail Chain HPK Series |
Material |
Nylon 6 + glass 20% |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Pisco Co., Ltd. |
Model No |
HPK206-R38 |
Import Country |
Direct Import from Japan |
Monotaro ID |
10413487 |
RoHS Directive |
Correspondence |
Operating Temperature Range |
-10 to 80°C |
Maximum Free Span (m) |
0.86 |
Cell Spacing (mm) |
32 |
Plarailchain Mass (kg/m) |
0.51 |
Maximum Transfer Stroke (m) |
1.6 |
Maximum Cable / Hose Outer Diameter (mm) |
12 |

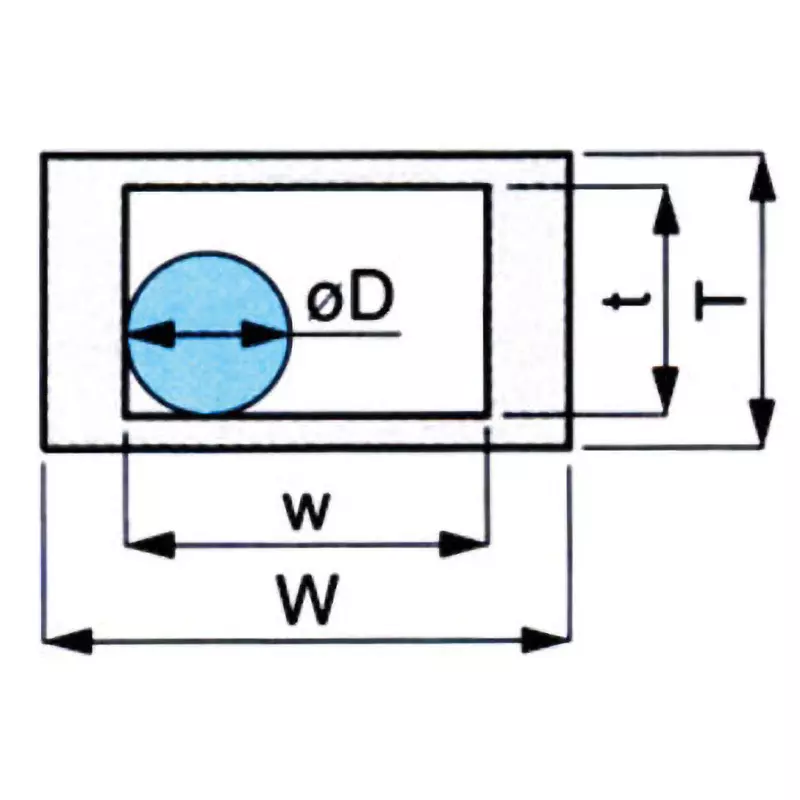

Dimension W |
59 mm |
Maximum Transfer Speed (m/sec) |
2.5 |
Minimum Bending Radius (mm) |
38 |
Number of Links (/m) |
32 |
Dimension T |
16 mm |
Maximum Cable / Hose Mass (kg/m) |
4.5 |
