| Model No | BMEM-E2 |
| Material | Nickel Plated Brass |

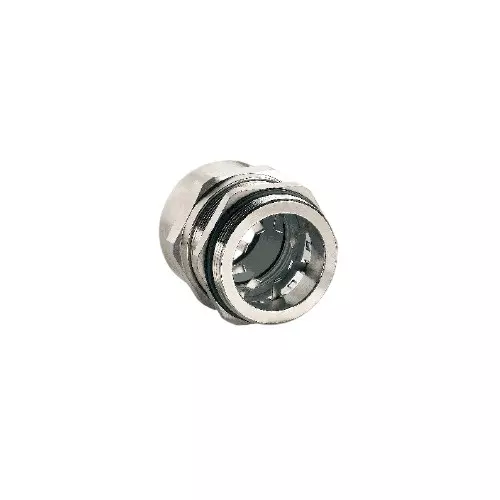

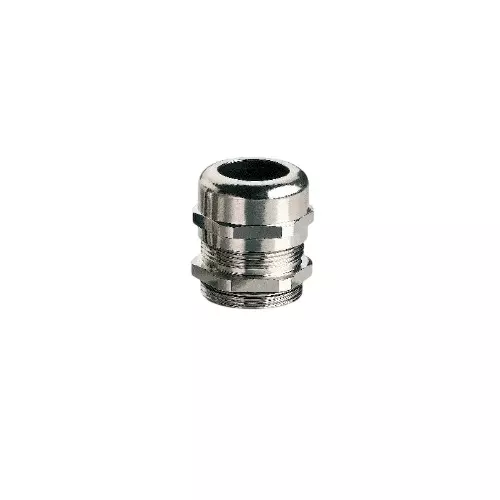

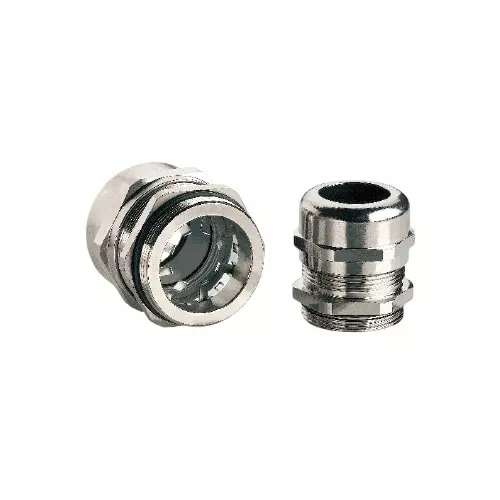

| Type of Product | EMC Brass Cable Glands |
| Clamping Range | 6 to 12 mm |
Model No |
BMEM-E2 |
Material |
Nickel Plated Brass |
Type of Product |
EMC Brass Cable Glands |
Clamping Range |
6 to 12 mm |
Size |
M20 x 1.5 |
Thread Type |
Metric Thread |
Generation |
4th Generation |
Temperature Range |
-20° C to +100°C Continuous, -40°C to +150°C Intermittent |
Thread Length |
8 mm |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Navkar Electric |
Protection Class |
IP 68-5 Bar, 30 min |
Spanner Size |
22 mm |
Thread Diameter |
20 mm |
O Ring |
Perbunan (NBR) |
Shield Diameter Range |
5.0 - 10.0 mm |
Sealing Ring |
CR-Chloroprene Rubber |
