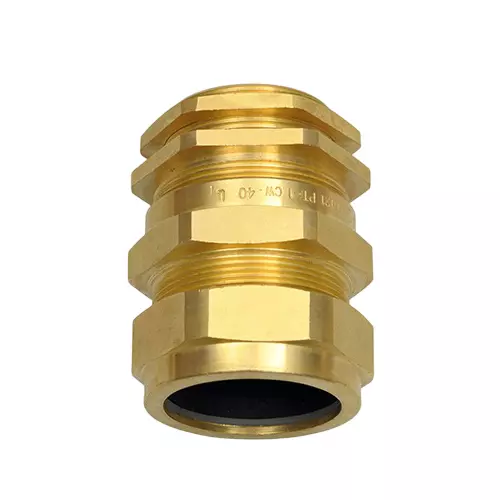

| Product Sub Type | Industrial Single Compression Cable Glands For Armoured Cables |
| Material | Brass |
| Features | Used For Both Indoor & Outdoor Application With All Types Of Steel Wire Armour (SWA) And Aluminium Wire Armour (AWA) Cable Providing Mechanical Cable Retention And Electrical Continuity Via Armour Wire Termination. |
| Type of Product | Cable Glands |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Product Sub Type |
Industrial Single Compression Cable Glands For Armoured Cables |
Material |
Brass |
Features |
Used For Both Indoor & Outdoor Application With All Types Of Steel Wire Armour (SWA) And Aluminium Wire Armour (AWA) Cable Providing Mechanical Cable Retention And Electrical Continuity Via Armour Wire Termination. |
Type of Product |
Cable Glands |
Thread |
M75L |
Entry Thread Length (mm) |
15 mm |
Across Corners (mm) |
102.2 mm |
Under Armour Diameter |
68 mm |
Country of Origin |
USA |
Part No |
DAA1101747 |
Application |
Industrial |
Seal Material |
Neoprene |
Name of Manufacturer/Packer/Importer |
M/s Anand Syndicats |
Protrusion Length |
75 mm |
Model Name |
CW (Category A) |
Shroud Material |
LSZH |
NPT Thread Type |
NPTS3 inch (N3L) |
Across Flats Hex Size (mm) |
91 mm |
Metric Thread |
M75 |
Entry Diameter |
75 mm |
Package Contains |
15 Pcs |
Cable Dia Range |
67 to 75.5 mm |
Armour Range |
2.5 to 3 mm |
Sealing Type |
Single Compression |
