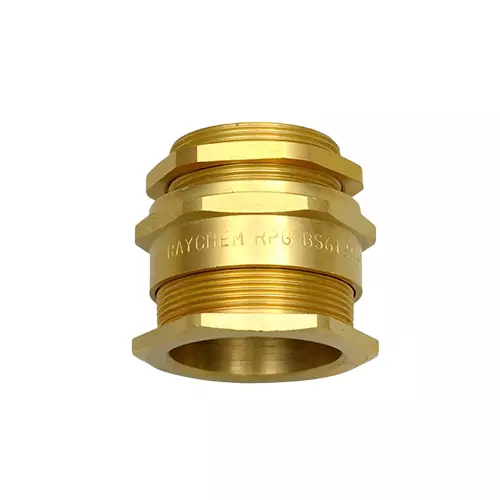

| Product Sub Type | Industrial Double Compression Cable Glands For Armoured Cables |
| Material | Brass |
| Features | Used For Both Indoor & Outdoor Application With Steel Wire Armour (SWA) Cable Providing An Environmental Seal On The Cable Inner Sheath And Cable Outer Sheath. |
| Type of Product | Cable Glands |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Product Sub Type |
Industrial Double Compression Cable Glands For Armoured Cables |
Material |
Brass |
Features |
Used For Both Indoor & Outdoor Application With Steel Wire Armour (SWA) Cable Providing An Environmental Seal On The Cable Inner Sheath And Cable Outer Sheath. |
Type of Product |
Cable Glands |
Thread |
M40L |
Entry Thread Length (mm) |
15 mm |
Across Corners (mm) |
57.5 mm |
Under Armour Diameter |
28 to 33.5 mm |
Country of Origin |
USA |
Part No |
DAA1101760 |
Application |
Industrial |
Seal Material |
Neoprene |
Name of Manufacturer/Packer/Importer |
M/s Anand Syndicats |
Protrusion Length |
60 mm |
Model Name |
E1W (Category A) |
Shroud Material |
LSZH |
NPT Thread Type |
NPT1-1/4 inch (N114L) |
Across Flats Hex Size (mm) |
51.5 mm |
Metric Thread |
M40 |
Entry Diameter |
40 mm |
Package Contains |
35 Pcs |
Cable Dia Range |
33.5 to 40 mm |
Armour Range |
1.6 to 2 mm |
Sealing Type |
Double Compression Sealing |
