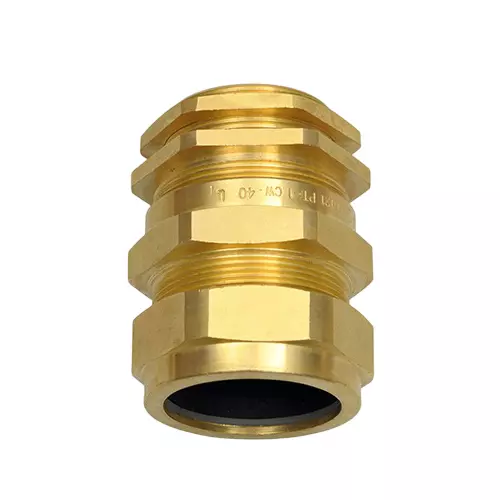

| Product Sub Type | Industrial Single Compression Cable Glands For Armoured Cables |
| Material | Brass |
| Features | Used For Both Indoor & Outdoor Application With All Types Of Steel Wire Armour (SWA) And Aluminium Wire Armour (AWA) Cable Providing Mechanical Cable Retention And Electrical Continuity Via Armour Wire Termination. |
| Type of Product | Cable Glands |
Product Sub Type |
Industrial Single Compression Cable Glands For Armoured Cables |
Material |
Brass |
Features |
Used For Both Indoor & Outdoor Application With All Types Of Steel Wire Armour (SWA) And Aluminium Wire Armour (AWA) Cable Providing Mechanical Cable Retention And Electrical Continuity Via Armour Wire Termination. |
Type of Product |
Cable Glands |
Thread |
M16L |
Entry Thread Length (mm) |
10 mm |
Across Corners (mm) |
22.7 mm |
Under Armour Diameter |
9 mm |
Country of Origin |
USA |
Part No |
DAA1100216 |
Application |
Industrial |
Seal Material |
Neoprene |
Name of Manufacturer/Packer/Importer |
M/s Anand Syndicats |
Protrusion Length |
40 mm |
Model Name |
CW (Category A) |
Shroud Material |
LSF |
Across Flats Hex Size (mm) |
20.50 mm |
Metric Thread |
M16 |
Entry Diameter |
16 mm |
Package Contains |
100 Pcs |
Cable Dia Range |
7 to 11 mm |
Armour Range |
0.8 to 1.25 mm |
Sealing Type |
Single Compression |
