Ships within 25 days
View
View
View
View
| Color | Body: Gray, Rubber packing: Black |
| Width | - |
| Material | Body, cap, lock nut: polyamide (combustion grade: 94V-0), rubber sleeve: flame retardant NBR, rubber packing: chloroprene rubber |

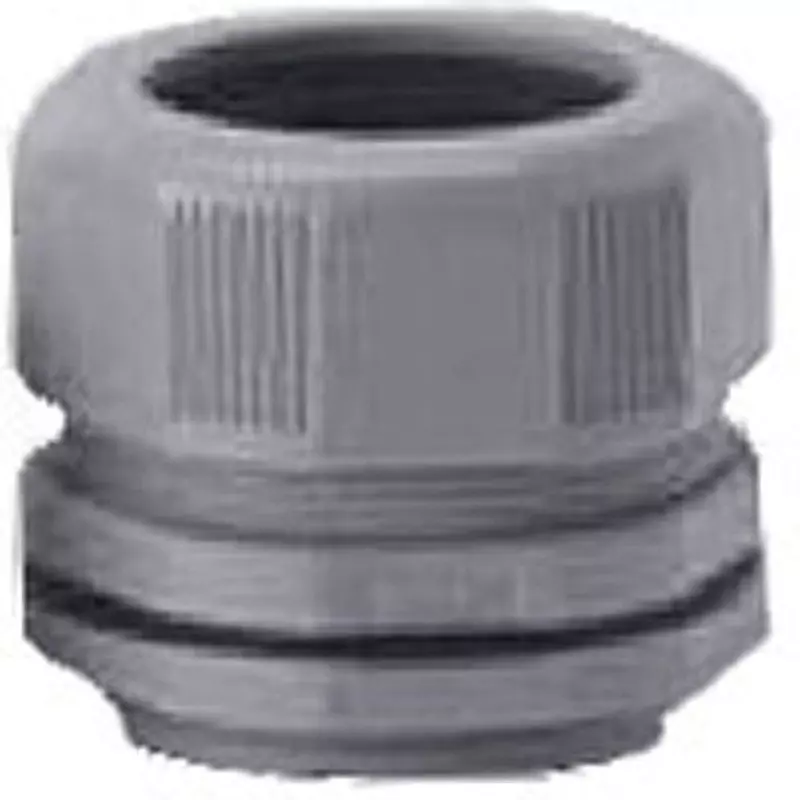

| Type of Product | S-Clock Flame-Retardant Type |
Color |
Body: Gray, Rubber packing: Black |
Width |
- |
Material |
Body, cap, lock nut: polyamide (combustion grade: 94V-0), rubber sleeve: flame retardant NBR, rubber packing: chloroprene rubber |
Type of Product |
S-Clock Flame-Retardant Type |
Model No |
SCL-18B |
Length |
- |
Country of Origin |
Japan |
Monotaro ID |
12601129 |
Pack of |
10 Pcs |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Mounting Hole Diameter |
Φ28 mm |
Import Country |
Direct Import from Japan |
Dimension B (Φmm) |
29.5 |
Dimension C (Φmm) |
15.7 |
Dimension E (Φmm) |
38 |
RoHS Directive |
Correspondence |
Dimension A (Φmm) |
40 |
Dimension D (Φmm) |
19.5 |
Installation Location |
Indoor / outdoor use |
Suitable Door Thickness to Mount (mm) |
Up to 4 |
Thickness (mm) |
(Rubber packing) 1.5 |
Suitable Cable Outer Dia. (Φmm) |
Φ16.5 to 18.5 |
Dimension H (Φmm) |
36 |
Dimension F (Φmm) |
36 |
Dimension K |
Φ26.4 mm |
Length L (mm) |
12 |
Dimension J (mm) |
5 |
Dimension G |
40 mm |
