| Color | Body: Gray, Rubber packing: Black |
| Width | - |
| Material | Body, cap, lock nut: polyamide (combustion grade: 94V-0), rubber sleeve: flame retardant NBR, rubber packing: chloroprene rubber |

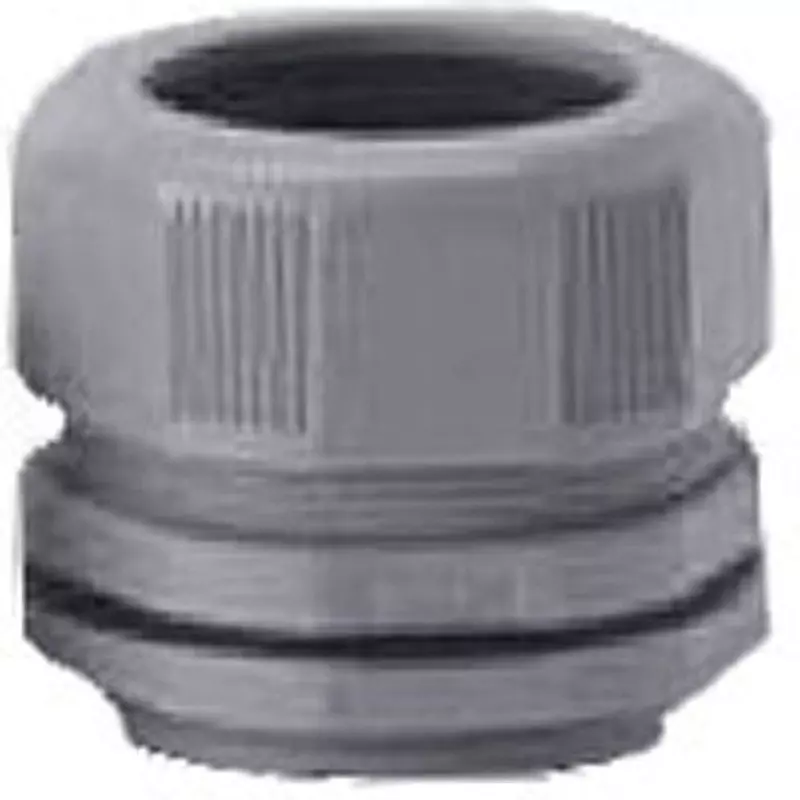

| Type of Product | S-Clock Flame-Retardant Type |
Color |
Body: Gray, Rubber packing: Black |
Width |
- |
Material |
Body, cap, lock nut: polyamide (combustion grade: 94V-0), rubber sleeve: flame retardant NBR, rubber packing: chloroprene rubber |
Type of Product |
S-Clock Flame-Retardant Type |
Model No |
SCL-22A |
Length |
- |
Country of Origin |
Japan |
Monotaro ID |
12601138 |
Pack of |
5 Pcs |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Mounting Hole Diameter |
Φ34 mm |
Import Country |
Direct Import from Japan |
Dimension B (Φmm) |
32.5 |
Dimension C (Φmm) |
16.7 |
Dimension E (Φmm) |
43 |
RoHS Directive |
Correspondence |
Dimension A (Φmm) |
43 |
Dimension D (Φmm) |
24 |
Installation Location |
Indoor / outdoor use |
Suitable Door Thickness to Mount (mm) |
Up to 4 |
Thickness (mm) |
(Rubber packing) 2.0 |
Suitable Cable Outer Dia. (Φmm) |
Φ18.5 to 20.5 |
Dimension H (Φmm) |
41 |
Dimension F (Φmm) |
41 |
Dimension K |
Φ33.2 mm |
Length L (mm) |
12.5 |
Dimension J (mm) |
5 |
Dimension G |
44 mm |
