| Connection | converter |

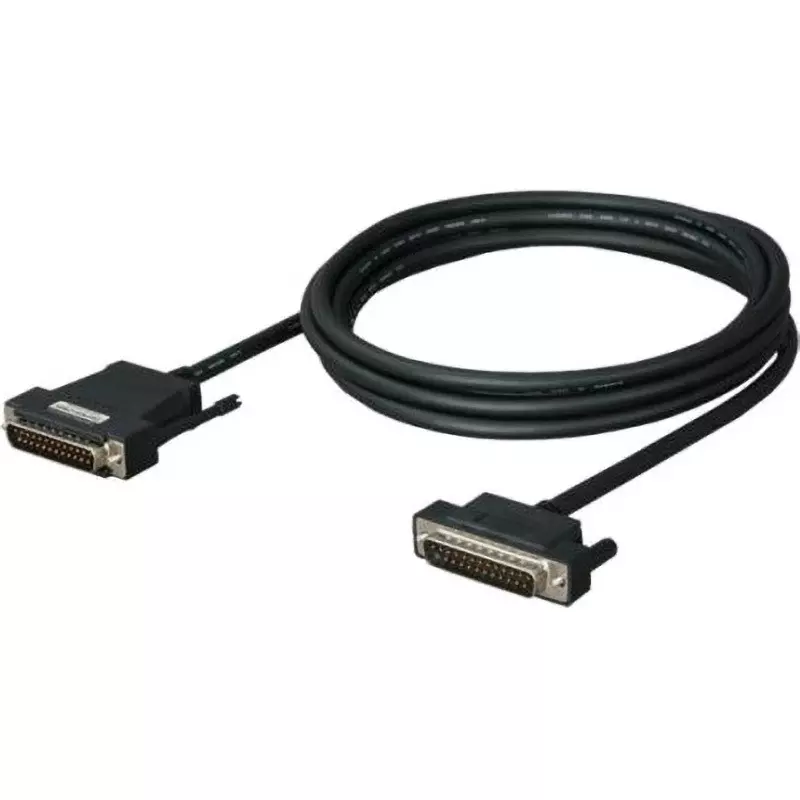

| Type of Product | Interface Converter Cable |
| Model No | DAFXIH-CAB(5M)(VS75) |
| Color | Black |
Connection |
converter |
Type of Product |
Interface Converter Cable |
Model No |
DAFXIH-CAB(5M)(VS75) |
Color |
Black |
Country of Origin |
Japan |
Standard |
RS-422 to RS-232C converter |
Monotaro ID |
49692668 |
Cable Length (m) |
5 |
Storage Temperature |
-20 to 60℃ |
Voltage |
DC 5 V |
Name of Manufacturer/Packer/Importer |
Dia Trend Co., Ltd. |
Import Country |
Direct Import from Japan |
Insulation Resistance (MOhm) |
Between connector, terminal, and case 5 mΩ or more at DC 500 V with insulation resistance meter |
Terminal |
DAFxIH-CAB: D-SUB25P male, D-SUB25P male |
Weight-resistance noise |
Noise voltage 1500V.PP Noise width 1μs (by noise simulator) |
Withstand Voltage |
Between connector, terminal batch and case AC500V for 1 minute |
Operating Temperature (c) |
0 to 45℃ |
Communication speed |
to 38.4 Kbps |
Operating Humidity (％) |
10-80% RH, no condensation |
Cooling Method |
Self-cooling |
Storage Humidity (%) |
10-80% RH, no condensation |
Set Contents |
D-SUB25P → D-SUB9P conversion cable, D-SUB25P → A1SD75 (dedicated half pitch 14P) conversion cable |
Operation Environment |
There is no corrosive gas and there is not much dust. |
Current Consumption (mA) |
100 |
Outer Dimensions |
D-SUB25P (FA equipment side): 58x65x15 mm, D-SUB25P (PC side): 55x37x16.5 mm |
