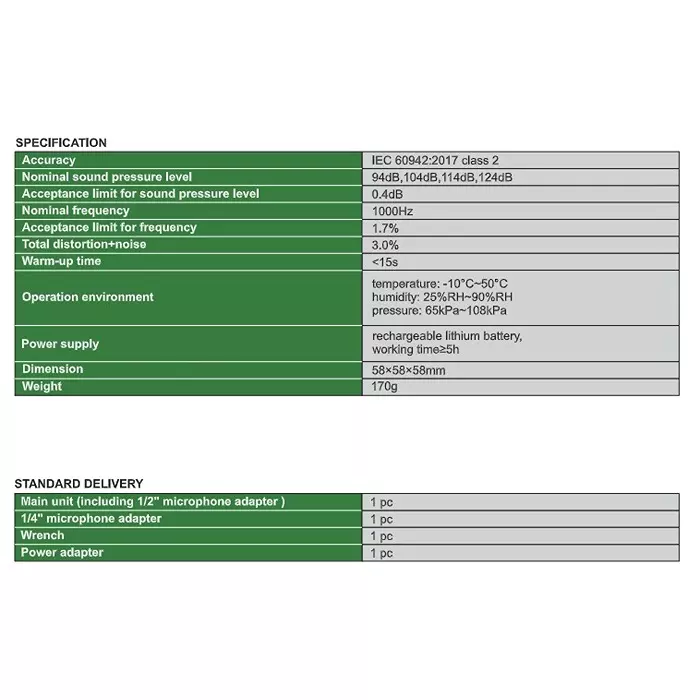

| Type of Product | Sound Calibrator |
| Accuracy | IEC 60942:2017 Class 2 |
| Operating Temperature | -10°C to 50°C |
| Weight | 170 g |
Type of Product |
Sound Calibrator |
Accuracy |
IEC 60942:2017 Class 2 |
Operating Temperature |
-10°C to 50°C |
Weight |
170 g |
Package Contains |
Main Unit, 1/4 inch Microphone Adapter, 1 Wrench, 1 Power Adapter |
Dimension |
58x58x58 mm |
Model No |
0012-SC20 |
Standard |
IEC 60942:2017 |
Frequency |
1000 Hz |
Power Source |
Rechargeable Lithium Battery |
Distortion |
0.03 |
Operating Humidity |
25% RH to 90% RH |
Country of Origin |
China |
Name of Manufacturer/Packer/Importer |
INSZIE |
Usage For |
Calibrate and test the sound pressure sensitivity of class 2 sound level meter,check and adjust the overall sensitivity of acoustic measuring device or system |
Working Time |
>= 5 Hours |
Limit |
Acceptable For Sound Pressure Level: 0.4 dB, For Frequency: 1.7% |
Warm up Time |
<15 second |
Operating Pressure |
65 kPa to 108 kPa |
Sound Pressure Level |
Nominal: 94, 104, 114, 124 dB |
