| Type of Product | Pillow Block Unit, Oil Supply Type |
| Model No | UCP206 |
| Material | Bearing: High carbon chromium steel, Bearing housing: Gray cast iron |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Pillow Block Unit, Oil Supply Type |
Model No |
UCP206 |
Material |
Bearing: High carbon chromium steel, Bearing housing: Gray cast iron |
Country of Origin |
Japan |
Shape |
Pillow type |
Monotaro ID |
21334558 |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Mass (Kg) |
1.32 |

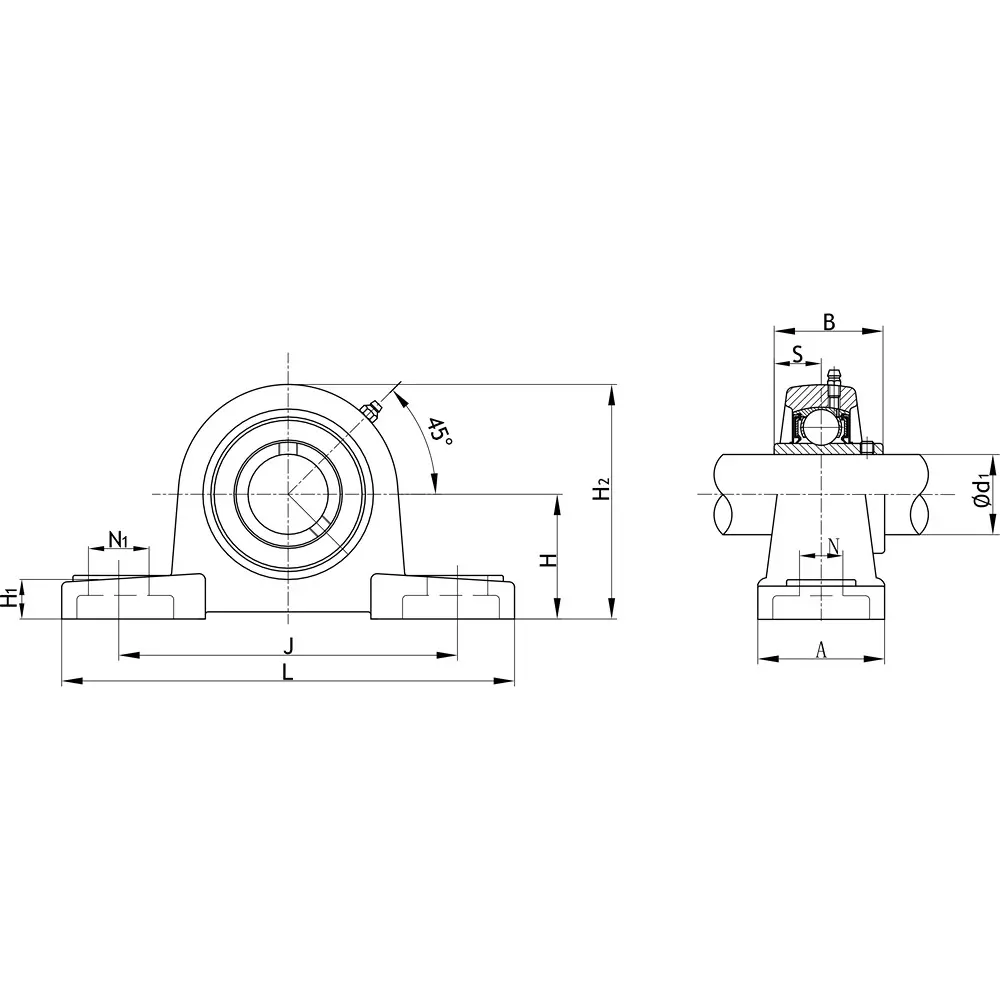

Dimension L (mm) |
165 |
Dimensions A (mm) |
48 |
Dimensions B (mm) |
38.1 |
Dimension H1 |
17 mm |
Dimension H2 |
83 mm |
Dimension J (mm) |
121 |
Nominal Size of Mounting Bolt |
M14 |
Shank Diameter (Φmm) |
30 |
Dimension S |
15.9 mm |
Dimension N1 (mm) |
21 |
Dimensions H (mm) |
42.9 |
Basic Static Load Rating (kN) |
11.2 |
Basic Dynamic Load Rating (kN) |
19.399999999999999 |
