| Type of Product | Pillow Block Unit, Oil Supply Type |
| Model No | UCP209 |
| Material | Bearing: High carbon chromium steel, Bearing housing: Gray cast iron |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Pillow Block Unit, Oil Supply Type |
Model No |
UCP209 |
Material |
Bearing: High carbon chromium steel, Bearing housing: Gray cast iron |
Country of Origin |
Japan |
Shape |
Pillow type |
Monotaro ID |
21334585 |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Mass (Kg) |
2.4500000000000002 |

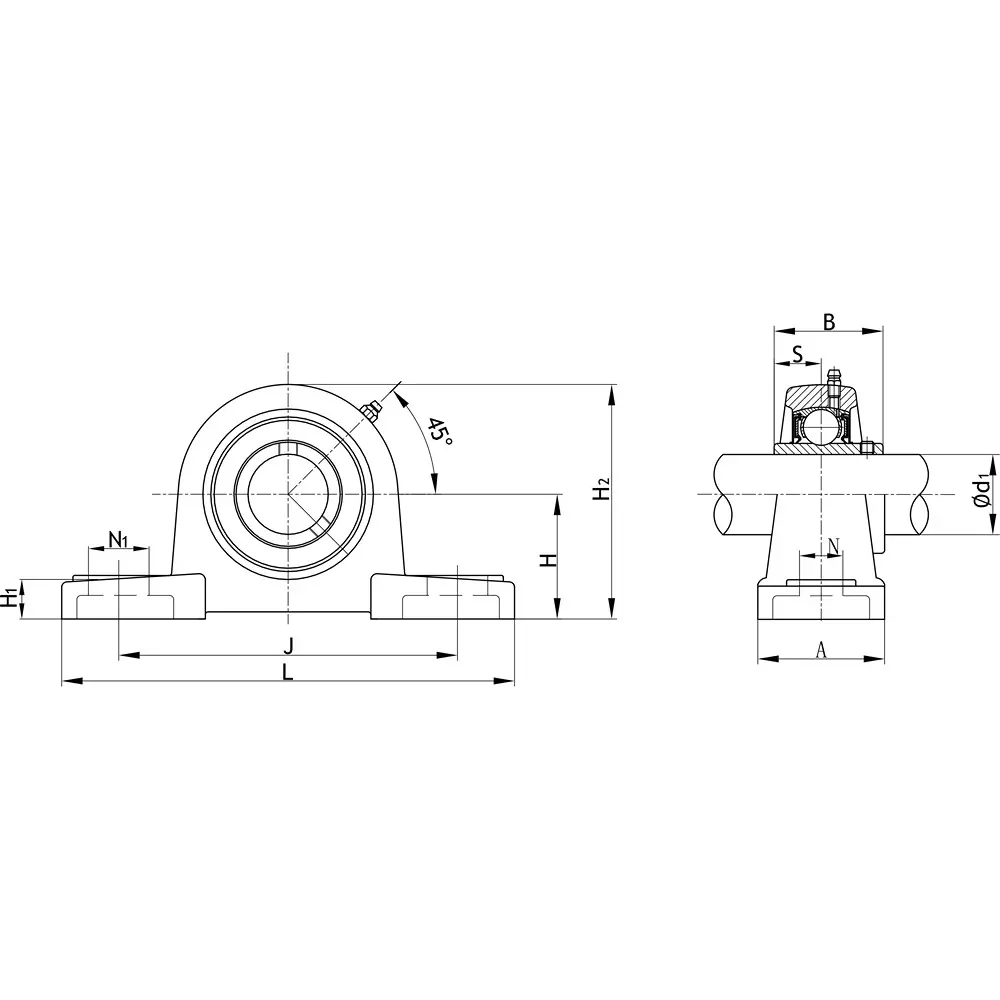

Dimension L (mm) |
190 |
Dimensions A (mm) |
54 |
Dimensions B (mm) |
49.2 |
Dimension H1 |
20 mm |
Dimension H2 |
106 mm |
Dimension J (mm) |
146 |
Nominal Size of Mounting Bolt |
M14 |
Shank Diameter (Φmm) |
45 |
Dimension S |
19 mm |
Dimension N1 (mm) |
21 |
Dimensions H (mm) |
54 |
Basic Static Load Rating (kN) |
20.399999999999999 |
Basic Dynamic Load Rating (kN) |
32.700000000000003 |
