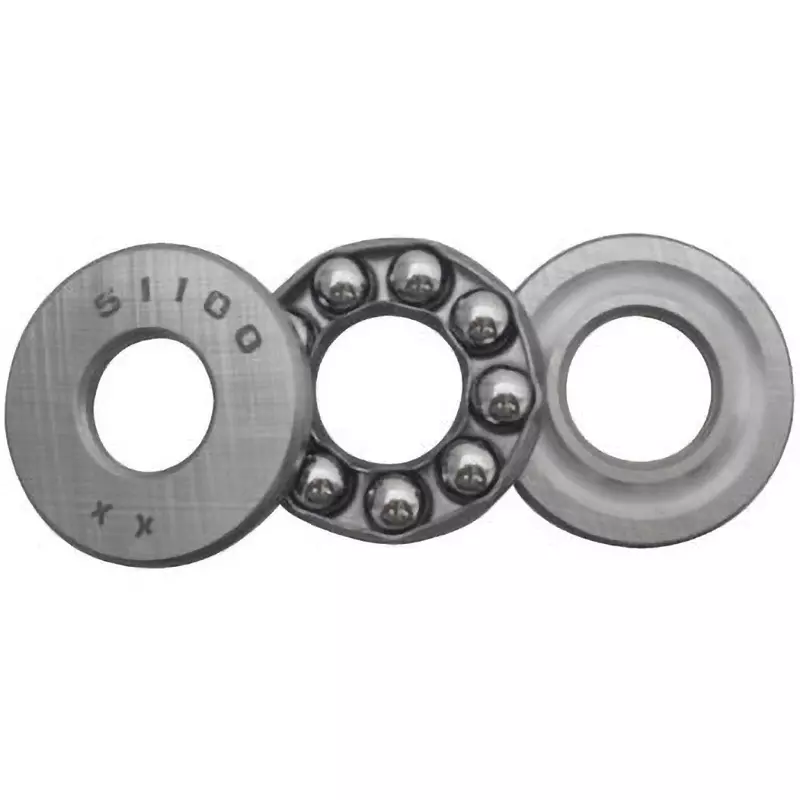

| Type of Product | Single Direction Thrust Ball Bearing 51100 Series |
| Model No | 51112 |
| Material | High carbon chromium bearing steel |
| Country of Origin | China |
Type of Product |
Single Direction Thrust Ball Bearing 51100 Series |
Model No |
51112 |
Material |
High carbon chromium bearing steel |
Country of Origin |
China |
Monotaro ID |
17661866 |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |

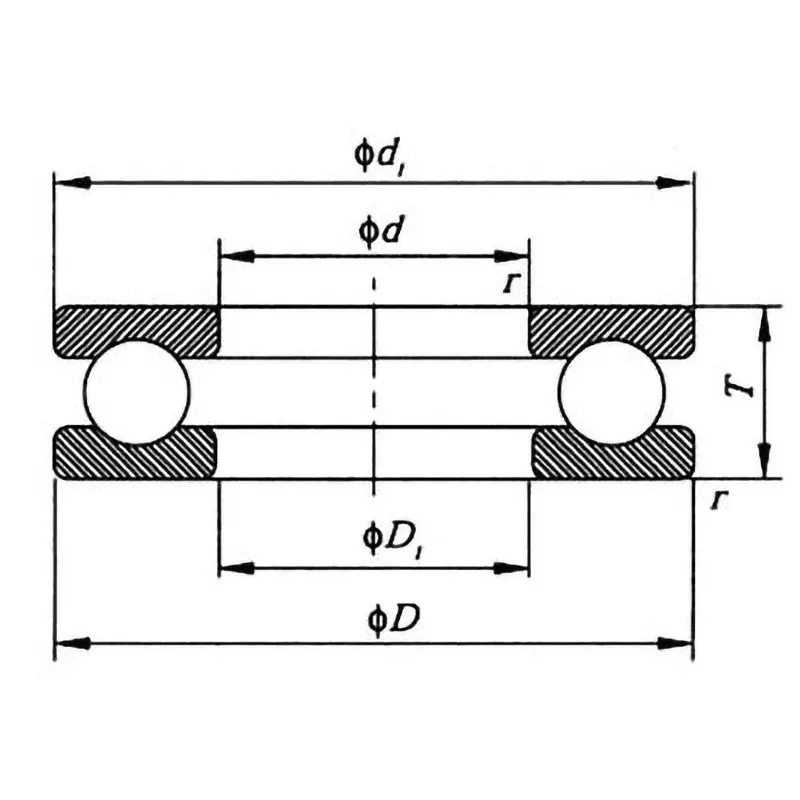

Outer Diameter D (Φmm) |
85 |
Race ring shape |
Thrust ball bearing |
Shield Shape |
Open type |
Load direction |
Thrust |
Rolling element material |
High carbon chromium bearing steel |
Chamfer Dimension r (mm) |
1 |
Basic dynamic load rating Cr (N) |
41400 |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
2600 |
Basic static load rating Cor (N) |
113000 |
No. of Track Trains |
Single row |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
4000 |
Inner Diameter d (Φmm) |
60 |
JIS grade |
0 |
Width T (mm) |
17 |
