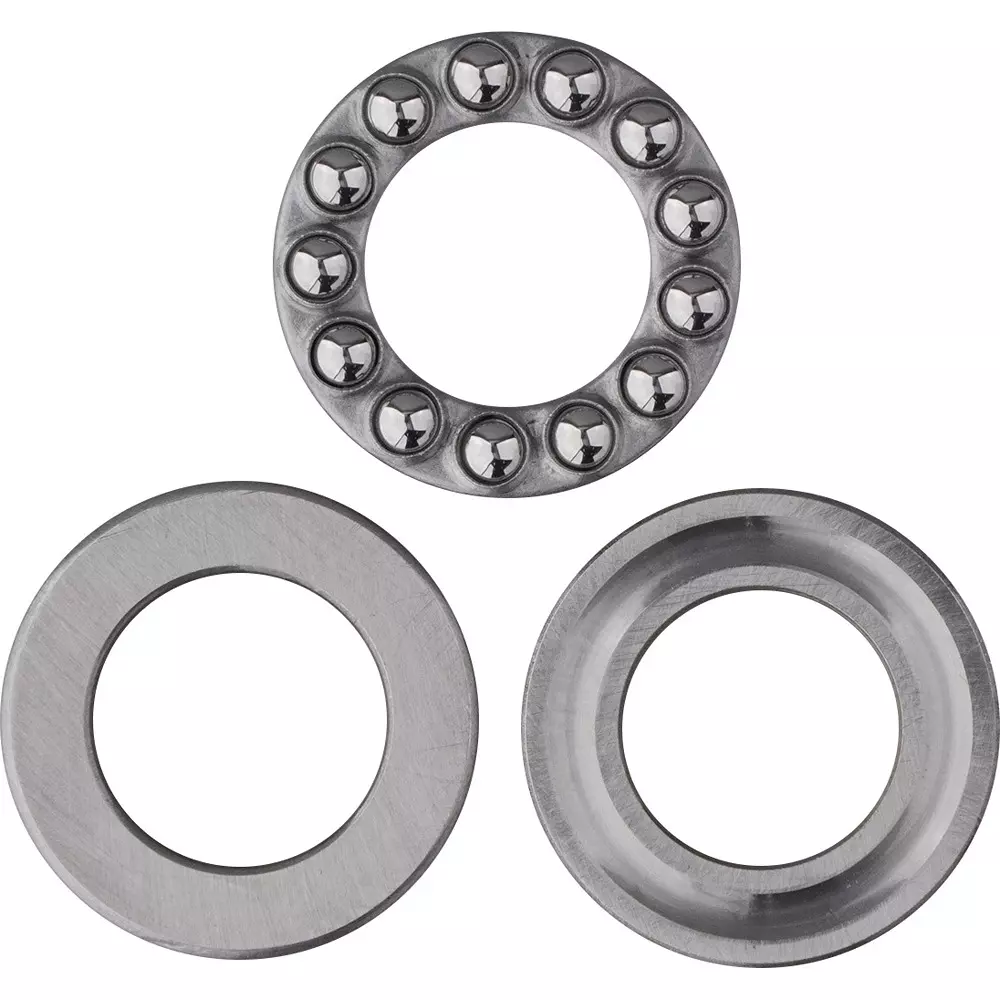

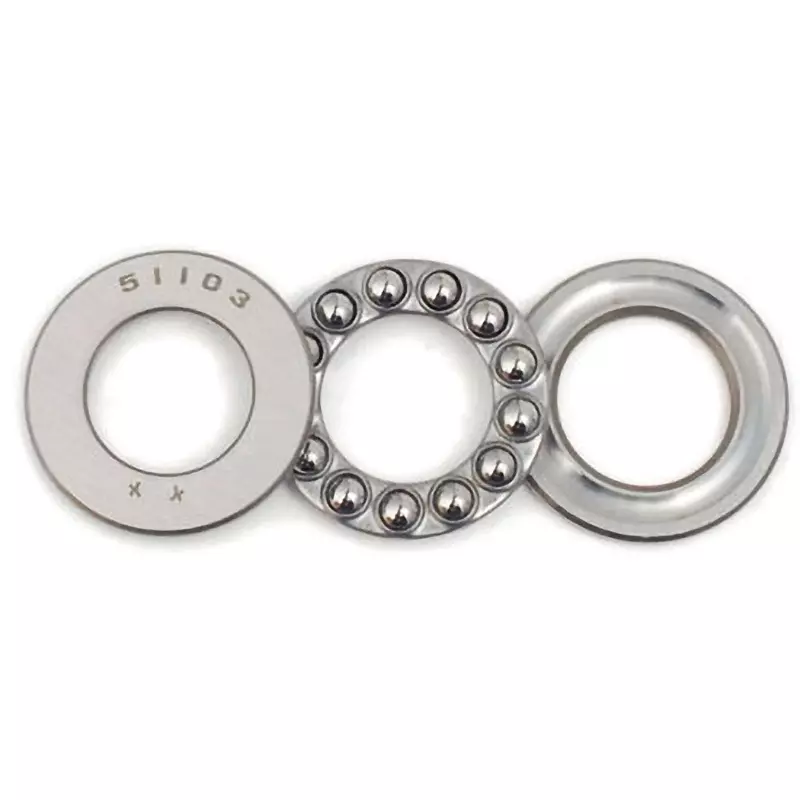

| Type of Product | Single Direction Thrust Ball Bearing 51100 Series |
| Model No | 51103 |
| Material | High carbon chromium bearing steel |
| Country of Origin | CHINA |
Type of Product |
Single Direction Thrust Ball Bearing 51100 Series |
Model No |
51103 |
Material |
High carbon chromium bearing steel |
Country of Origin |
CHINA |
Monotaro ID |
35628765 |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |

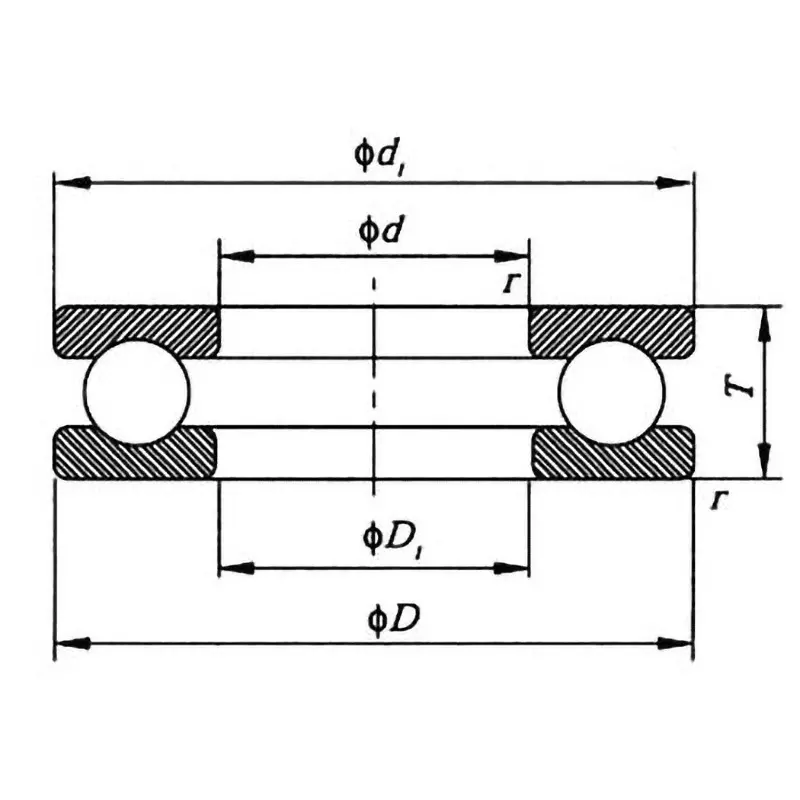

Outer Diameter D (Φmm) |
30 |
Race ring shape |
Thrust ball bearing |
Load direction |
Thrust |
Rolling element material |
High carbon chromium bearing steel |
Chamfer Dimension r (mm) |
(Minimum) 0.3 |
Basic dynamic load rating Cr (N) |
10800 |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
6000 |
Basic static load rating Cor (N) |
18200 |
No. of Track Trains |
Single row |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
8500 |
Inner Diameter d (Φmm) |
17 |
Outer ring type |
Flat |
JIS grade |
0 |
Width T (mm) |
9 |
Dimension d1 (Φmm) |
(Minimum) 18 |
