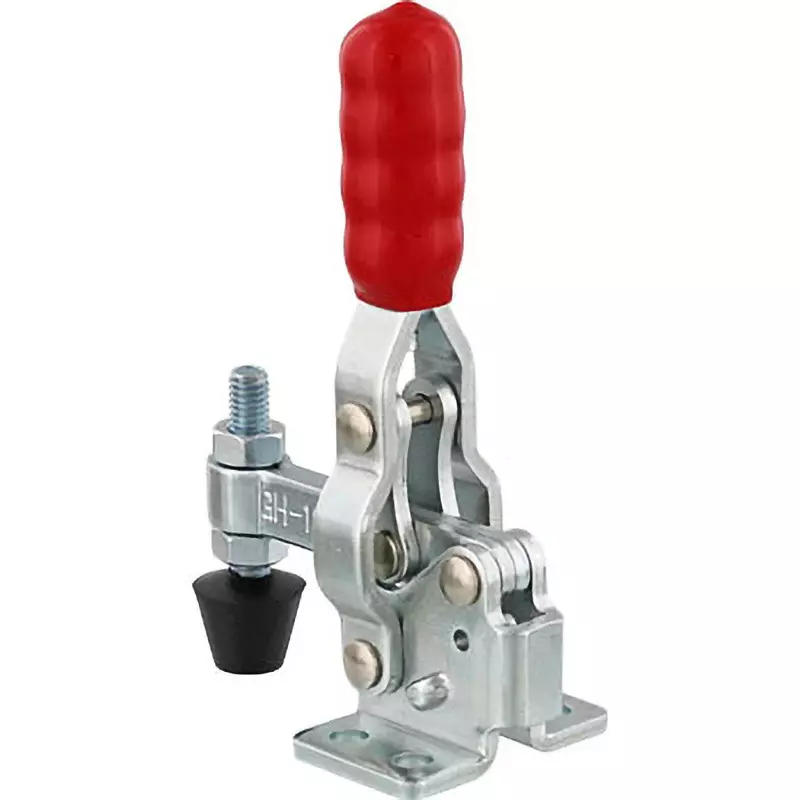

| Type of Product | Downward Holding Type Toggle Clamp 91K |
| Model No | GH-12050 |
| Material | SS400 (Unichrome) |
| Type | Downward holding type |
Type of Product |
Downward Holding Type Toggle Clamp 91K |
Model No |
GH-12050 |
Material |
SS400 (Unichrome) |
Type |
Downward holding type |
Country of Origin |
TAIWAN |
Handle Material |
PVC |
Monotaro ID |
4885414 |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |

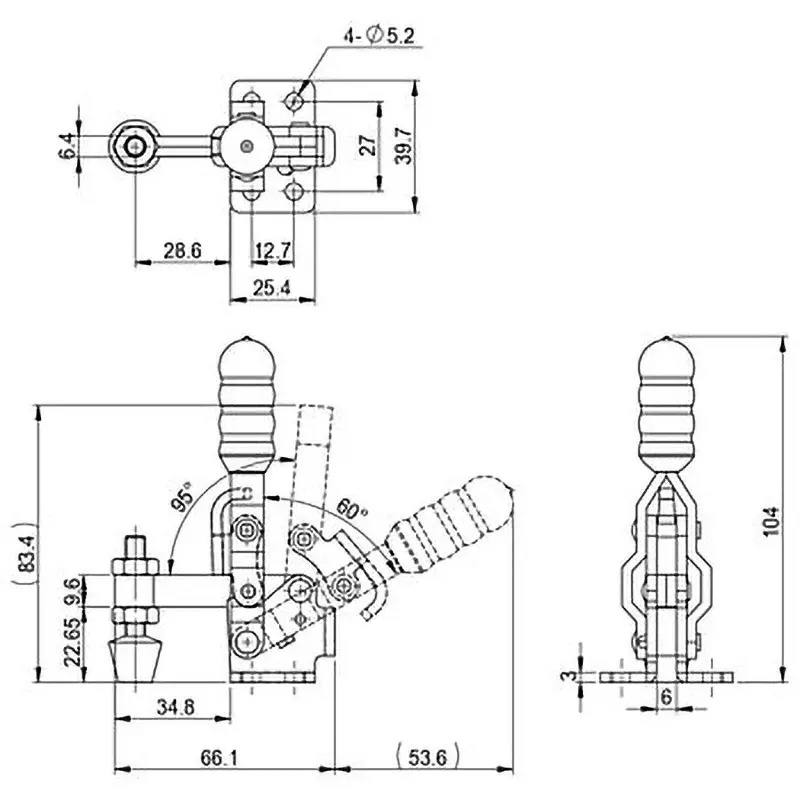

Handle Operation Angle (°) |
60 |
Clamp Arm Movement Angle (°) |
95 |
Maximum Height (mm) |
104 |
Spindle |
Spindle M6 x 44 P = 1.0 |
Mass (g) |
159 |
Clamping Pressure (kN [kgf]) |
0.91[91] |
Maximum Length (mm) |
119.7 |
Base |
Flange |
