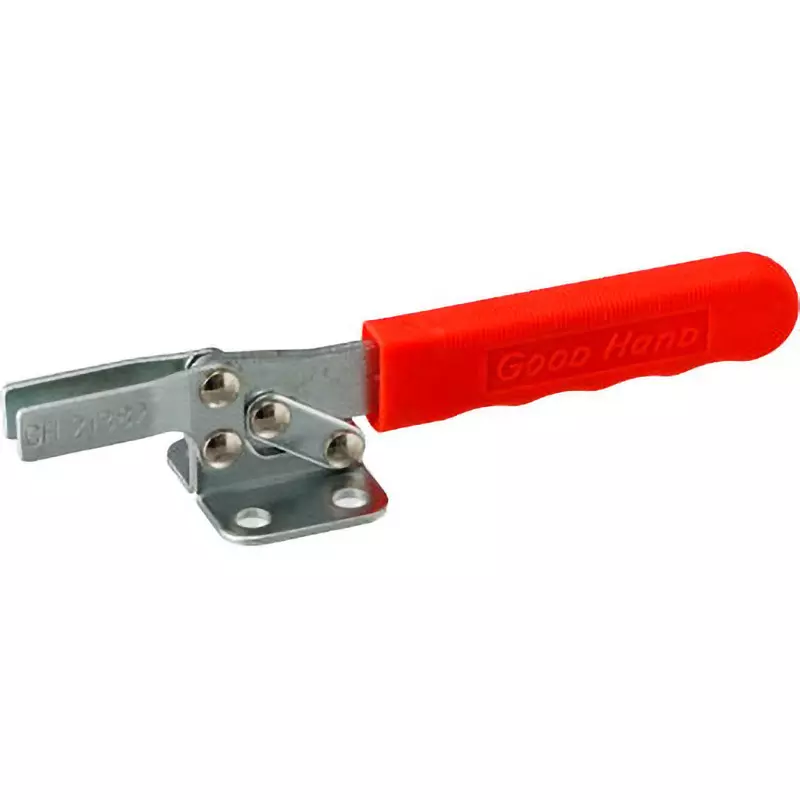

| Type of Product | Downward Pressing Toggle Clamp 250K |
| Model No | GH21382 |
| Material | SS400 (Unichrome) |
| Type | Down pressure type |
Type of Product |
Downward Pressing Toggle Clamp 250K |
Model No |
GH21382 |
Material |
SS400 (Unichrome) |
Type |
Down pressure type |
Country of Origin |
TAIWAN |
Included Components |
Spindle (M6 x 50 P = 1.0) |
Handle Material |
PVC |
Monotaro ID |
7069237 |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Handle Operation Angle (°) |
85 |
Clamp Arm Movement Angle (°) |
77 |
Maximum Height (mm) |
167.6 |
Spindle |
Spindle (M6 x 50 P = 1.0) |
Mass (g) |
190 |
Clamping Pressure (kN [kgf]) |
2.5[250] |
Maximum Length (mm) |
199 |
Base |
Flange |
