| Type of Product | Tapered Roller Bearing 30200 Series |
| Model No | 4T-30210 |
| Material | High carbon chromium bearing steel |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Tapered Roller Bearing 30200 Series |
Model No |
4T-30210 |
Material |
High carbon chromium bearing steel |
Country of Origin |
Japan |
Monotaro ID |
17661823 |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |

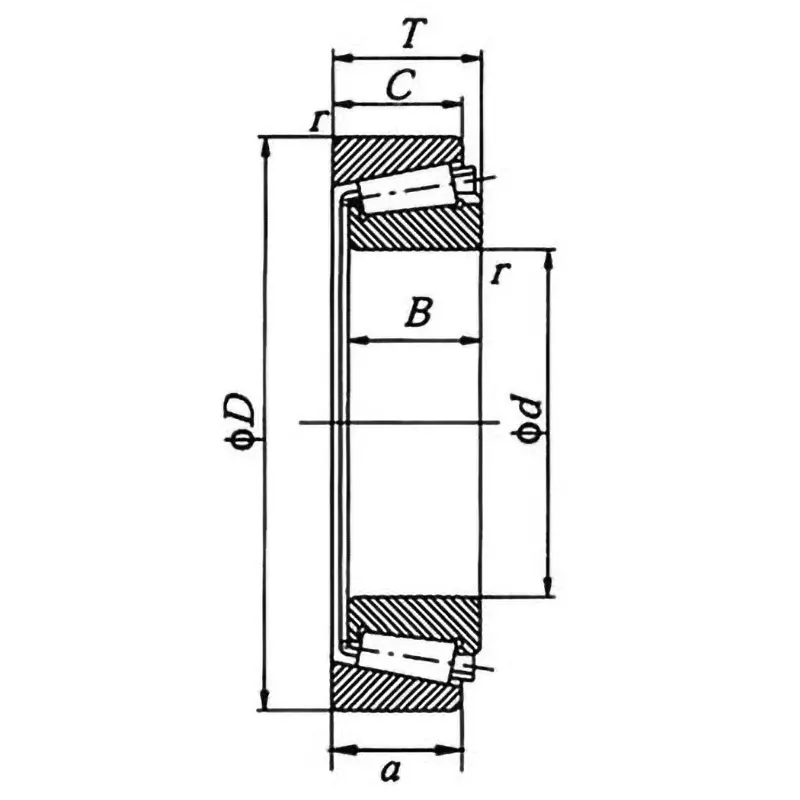

Thickness t (mm) |
21.75 |
Outer Diameter D (Φmm) |
90 |
Race ring shape |
Tapered roller bearing |
Dimensions C (mm) |
17 |
Shield Shape |
Open type |
Load direction |
Radial |
Rolling element material |
High carbon chromium bearing steel |
Chamfer Dimension r (mm) |
(Minimum) 1.5 |
Basic dynamic load rating Cr (N) |
76500 |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
4300 |
Width B (mm) |
20 |
Basic static load rating Cor (N) |
91700 |
No. of Track Trains |
Single row |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
5700 |
Inner Diameter d (Φmm) |
50 |
Dimensions A (mm) |
20.100000000000001 |
Outer ring type |
Flat |
