| Type of Product | Pillow Block Unit, Oil Supply Type |
| Model No | UCP207 |
| Material | Bearing: High carbon chromium steel, Bearing housing: Gray cast iron |
| Country of Origin | CHINA |
Type of Product |
Pillow Block Unit, Oil Supply Type |
Model No |
UCP207 |
Material |
Bearing: High carbon chromium steel, Bearing housing: Gray cast iron |
Country of Origin |
CHINA |
Shape |
Pillow type |
Monotaro ID |
21334567 |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Mass (Kg) |
1.72 |

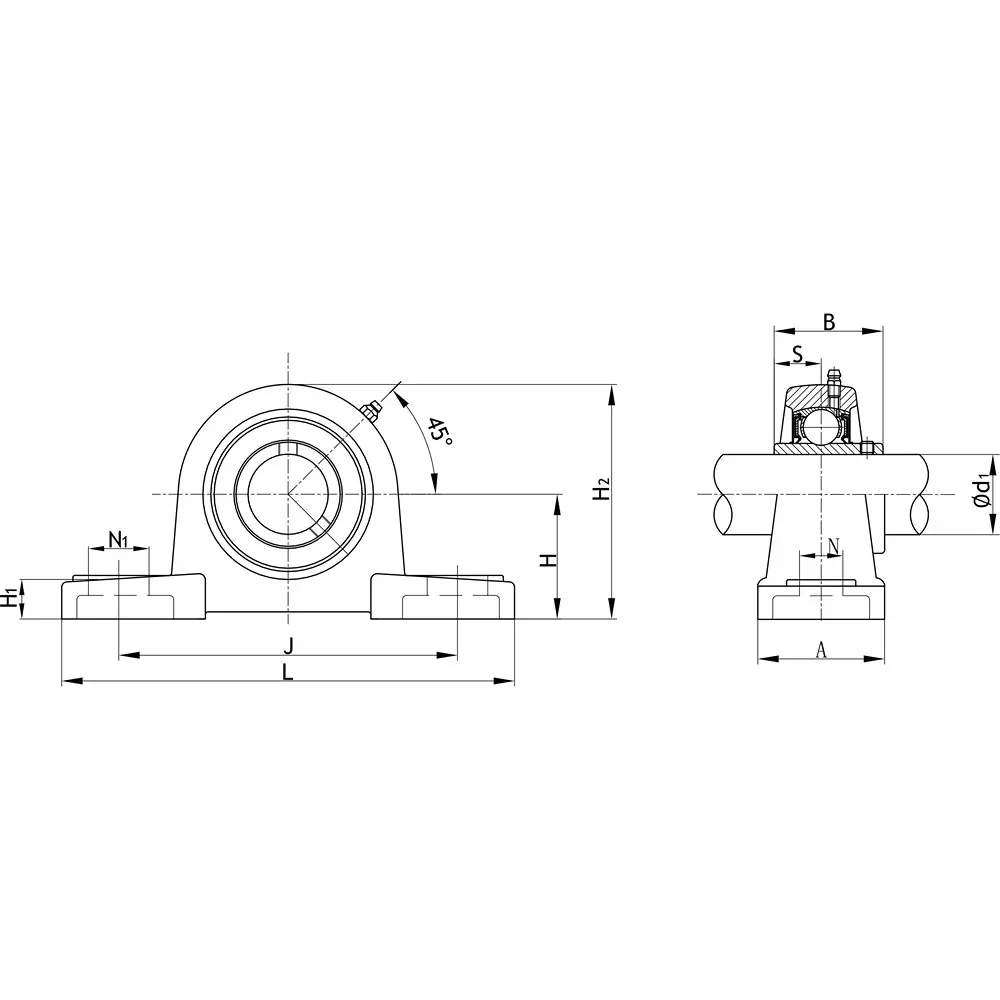

Dimension L (mm) |
167 |
Dimensions A (mm) |
48 |
Dimensions B (mm) |
42.9 |
Dimension H1 |
18 mm |
Dimension H2 |
93 mm |
Dimension J (mm) |
127 |
Nominal Size of Mounting Bolt |
M14 |
Shank Diameter (Φmm) |
35 |
Dimension S |
17.5 mm |
Dimension N1 (mm) |
21 |
Dimensions H (mm) |
47.6 |
Basic Static Load Rating (kN) |
15.2 |
Basic Dynamic Load Rating (kN) |
25.6 |
