Ships within 25 days
View
View
View
View

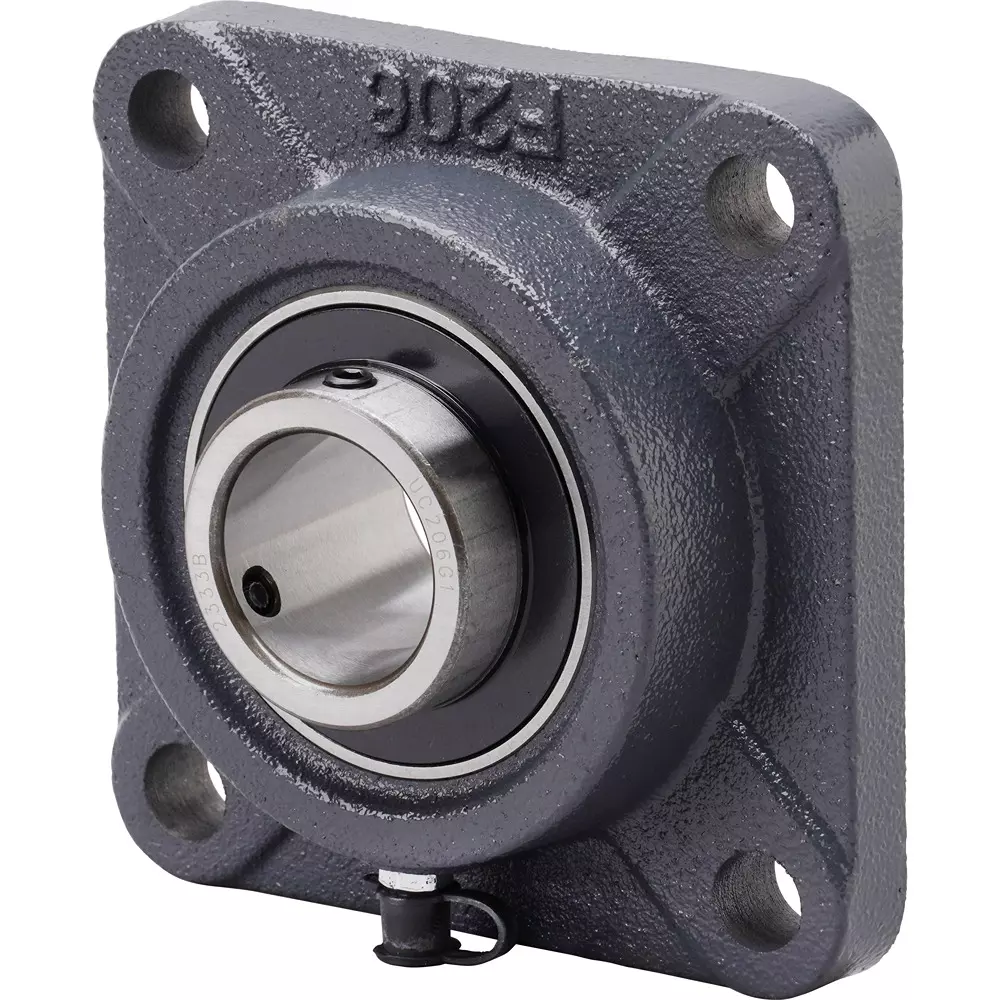

| Type of Product | Square Flange Unit, Oil Supply Type |
| Model No | UCF206 |
| Material | Bearing: High carbon chromium steel, Bearing housing: Gray cast iron |
| Country of Origin | CHINA |
Type of Product |
Square Flange Unit, Oil Supply Type |
Model No |
UCF206 |
Material |
Bearing: High carbon chromium steel, Bearing housing: Gray cast iron |
Country of Origin |
CHINA |
Shape |
Square flange type |
Monotaro ID |
21334628 |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Mass (Kg) |
1.1299999999999999 |

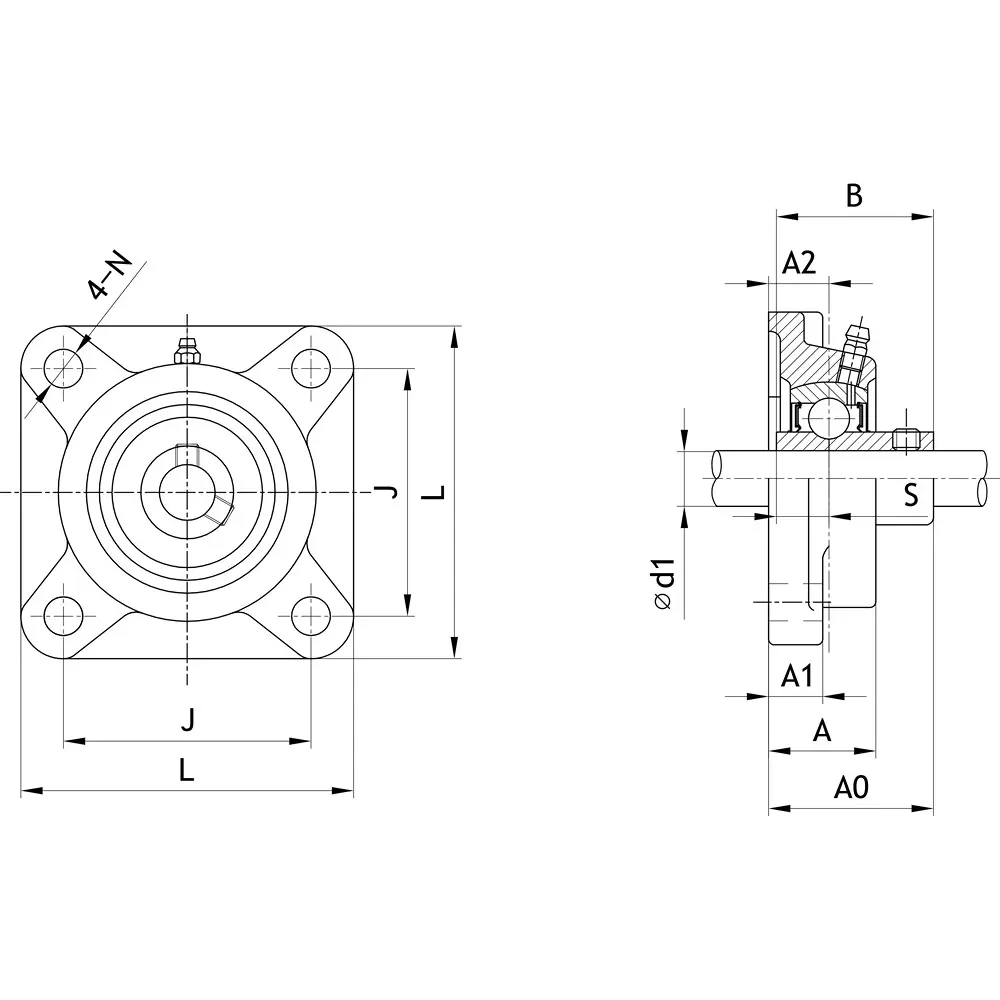

Dimension L (mm) |
108 |
Dimensions A (mm) |
31 |
Dimensions B (mm) |
38.1 |
Nominal Size of Mounting Bolt |
M10 |
Shank Diameter (Φmm) |
30 |
Dimension S |
15.9 mm |
Basic Static Load Rating (kN) |
11.2 |
Basic Dynamic Load Rating (kN) |
19.399999999999999 |
Dimension n (mm) |
12 |
Dimension A1 |
13 mm |
Dimension A0 (mm) |
40.200000000000003 |
Dimension A2 (mm) |
18 |
