| Type of Product | Diamond Flange Unit, Oil Supply Type |
| Model No | UCFL205 |
| Material | Bearing: High carbon chromium steel, Bearing housing: Gray cast iron |
| Country of Origin | CHINA |
Type of Product |
Diamond Flange Unit, Oil Supply Type |
Model No |
UCFL205 |
Material |
Bearing: High carbon chromium steel, Bearing housing: Gray cast iron |
Country of Origin |
CHINA |
Shape |
Diamond shape flange type |
Monotaro ID |
21334689 |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Mass (Kg) |
0.64 |

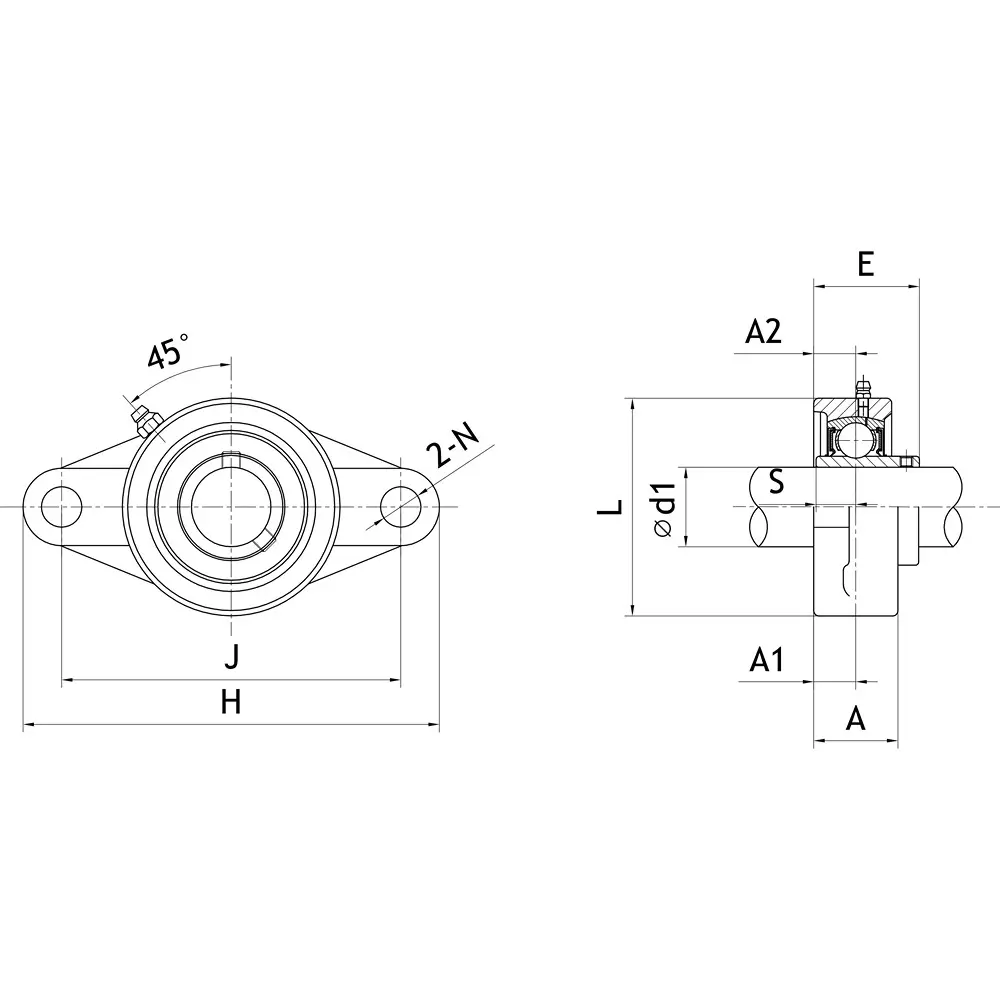

Dimension L (mm) |
68 |
Dimensions A (mm) |
27 |
Dimension J (mm) |
99 |
Nominal Size of Mounting Bolt |
M14 |
Shank Diameter (Φmm) |
25 |
Dimension S |
14.3 mm |
Dimensions H (mm) |
130 |
Basic Static Load Rating (kN) |
7.8 |
Basic Dynamic Load Rating (kN) |
14 |
Dimension A1 |
13 mm |
Dimension A2 (mm) |
16 |
Dimensions E (mm) |
35.799999999999997 |
