Ships within 25 days
View
View
View
View

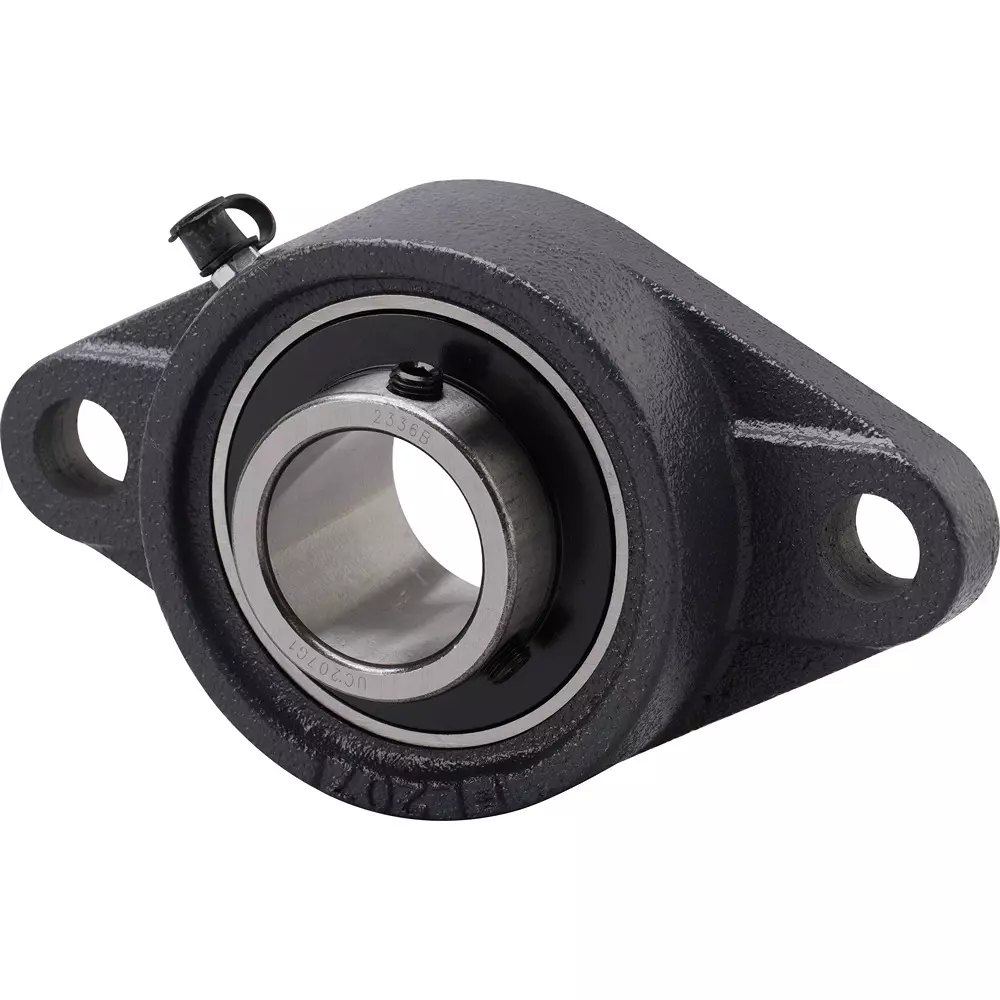

| Type of Product | Diamond Flange Unit, Oil Supply Type |
| Model No | UCFL207 |
| Material | Bearing: High carbon chromium steel, Bearing housing: Gray cast iron |
| Country of Origin | CHINA |
Type of Product |
Diamond Flange Unit, Oil Supply Type |
Model No |
UCFL207 |
Material |
Bearing: High carbon chromium steel, Bearing housing: Gray cast iron |
Country of Origin |
CHINA |
Shape |
Diamond shape flange type |
Monotaro ID |
21334707 |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Mass (Kg) |
1.2 |

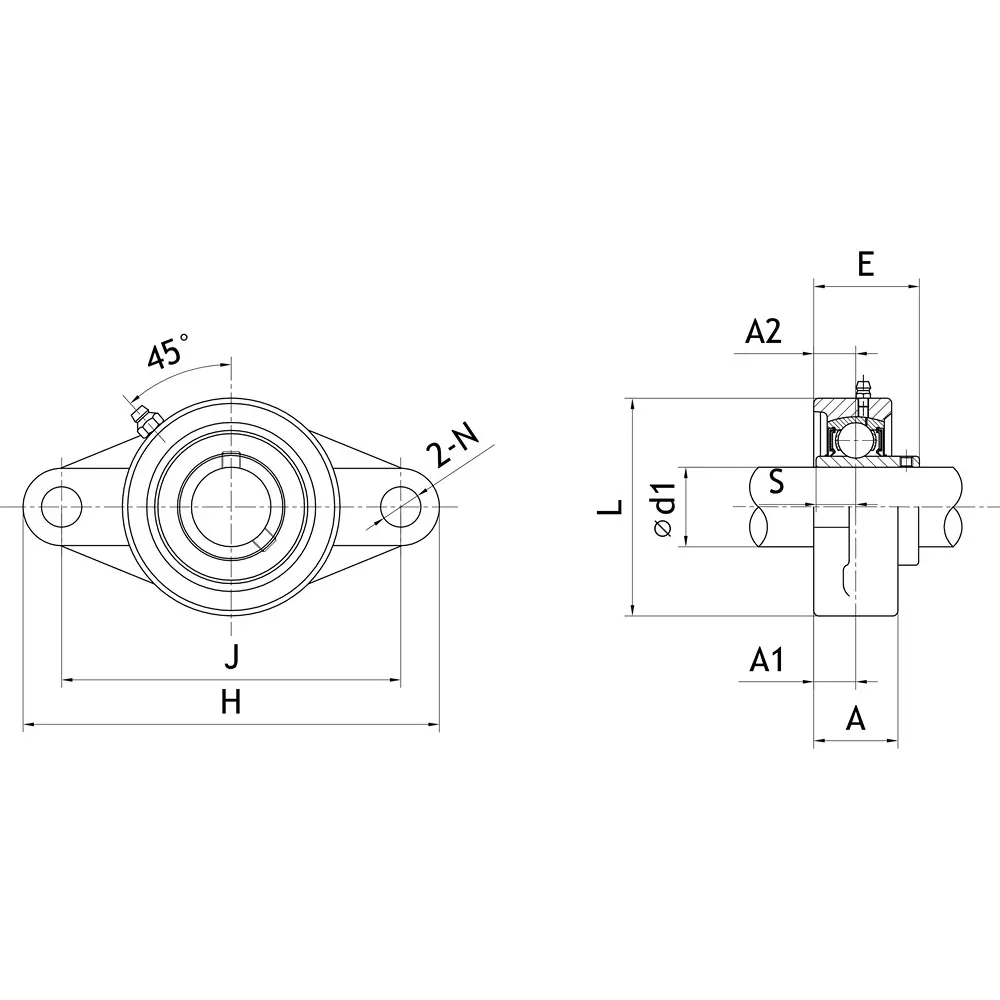

Dimension L (mm) |
90 |
Dimensions A (mm) |
34 |
Dimension J (mm) |
130 |
Nominal Size of Mounting Bolt |
M14 |
Shank Diameter (Φmm) |
35 |
Dimension S |
17.5 mm |
Dimensions H (mm) |
161 |
Basic Static Load Rating (kN) |
15.2 |
Basic Dynamic Load Rating (kN) |
25.6 |
Dimension A1 |
15 mm |
Dimension A2 (mm) |
19 |
Dimensions E (mm) |
44.4 |
