| Type of Product | Standard Roller Chain |
| Model No | 35-1x3m |
| Material | Iron |
| Type | Roller chain |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Standard Roller Chain |
Model No |
35-1x3m |
Material |
Iron |
Type |
Roller chain |
Country of Origin |
Japan |
Included Components |
With 1 connecting link |
Monotaro ID |
8205942 |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |

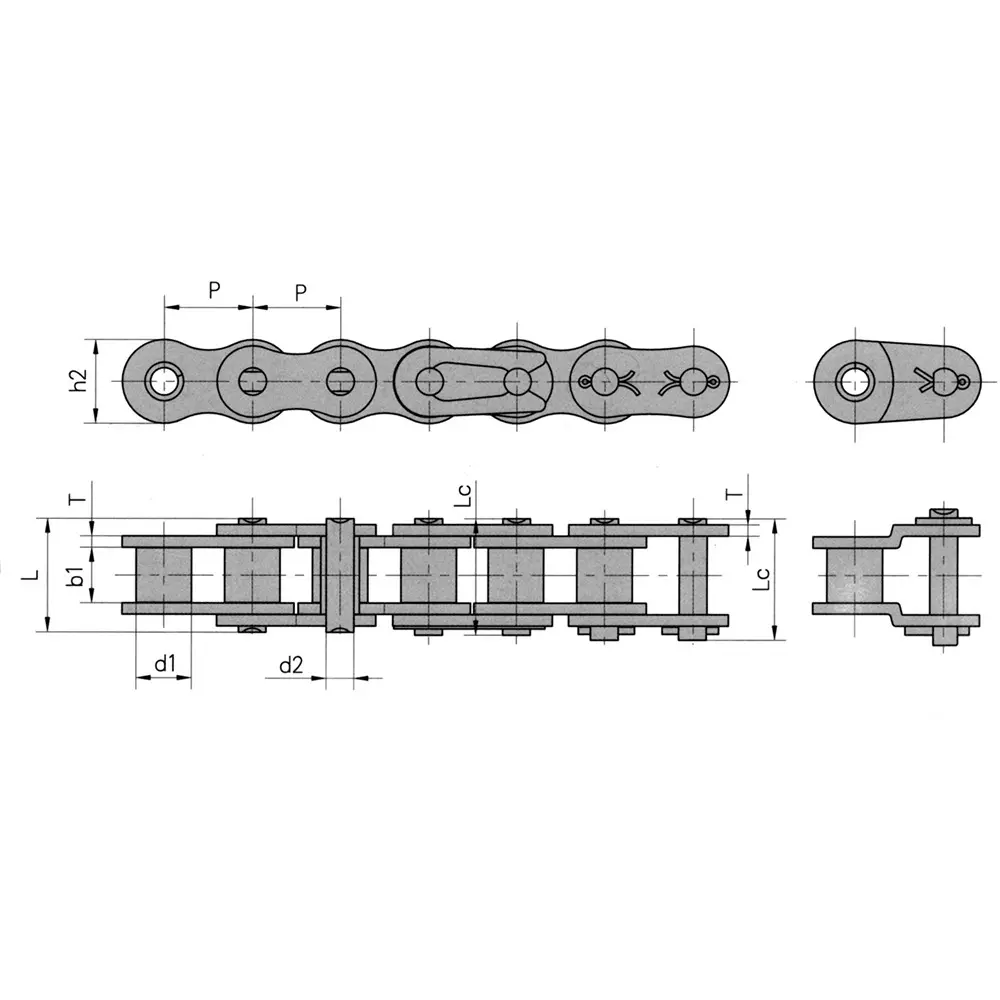

Link Inner Width (mm) |
4.7699999999999996 |
Pin Diameter d2 (mm) |
3.58 |
Pin Type |
Riveted type |
Average Tensile Strength (kN) |
10.8 |
Roller Width b1 (mm) |
4.7699999999999996 |
Dimension LC |
13.17 mm |
Cell Spacing (mm) |
9.5250000000000004 |
Width h2 (mm) |
9 |
Mass of Main Unit (kg) |
0.99 |
Thickness t (mm) |
1.3 |
Single or Double Strand |
1 |
Dimension L (mm) |
12.4 |
Number of Unit Links |
315 |
Roller Diameter d1 (mm) |
5.08 |
Minimum Tensile Strength (kN) |
7.9 |
