| Type of Product | Pillow Block Unit, Oil Supply Type |
| Model No | UCP203 |
| Material | Bearing: High carbon chromium steel, Bearing housing: Gray cast iron |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Pillow Block Unit, Oil Supply Type |
Model No |
UCP203 |
Material |
Bearing: High carbon chromium steel, Bearing housing: Gray cast iron |
Country of Origin |
Japan |
Shape |
Pillow type |
Monotaro ID |
21334524 |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Mass (Kg) |
0.75 |

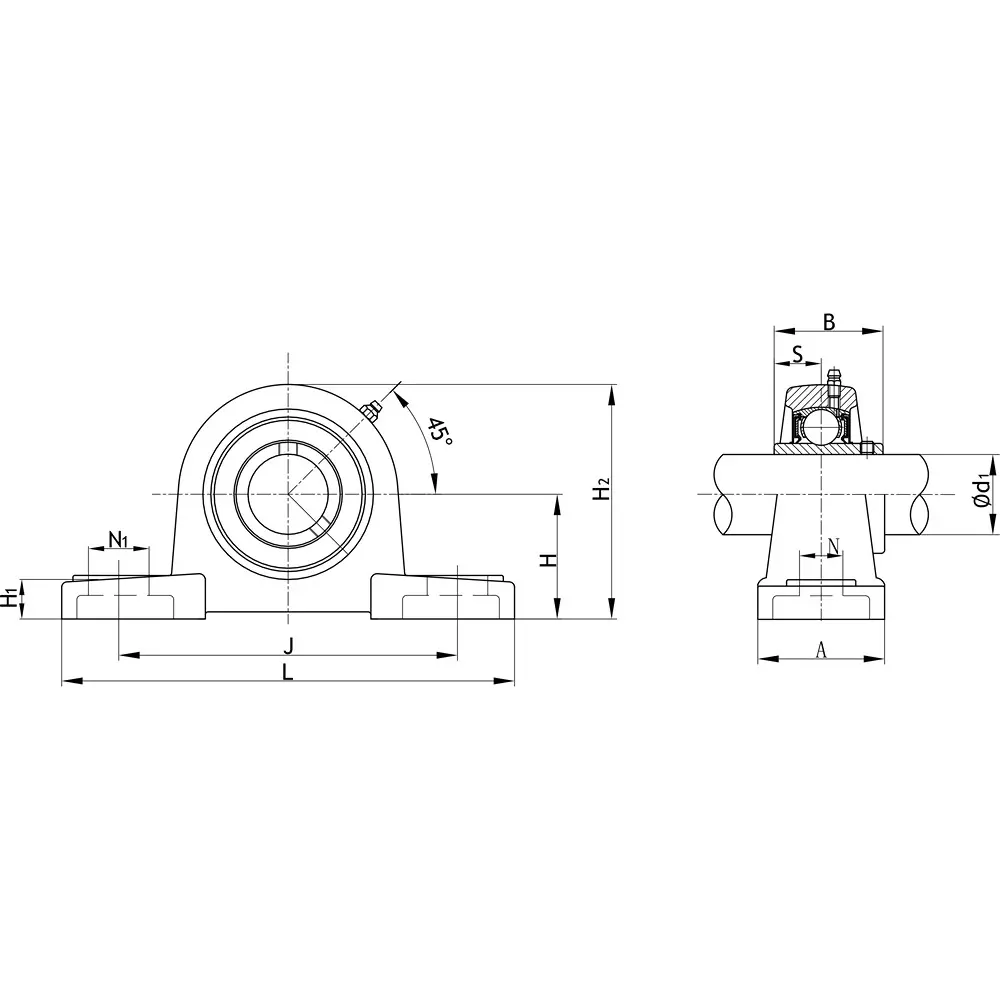

Dimension L (mm) |
127 |
Dimensions A (mm) |
38 |
Dimensions B (mm) |
31 |
Dimension H1 |
13 mm |
Dimension H2 |
60 mm |
Dimension J (mm) |
95 |
Nominal Size of Mounting Bolt |
M10 |
Shank Diameter (Φmm) |
17 |
Dimension S |
12.7 mm |
Dimension N1 (mm) |
19 |
Dimensions H (mm) |
30.2 |
Basic Static Load Rating (kN) |
6.6 |
Basic Dynamic Load Rating (kN) |
12.8 |
