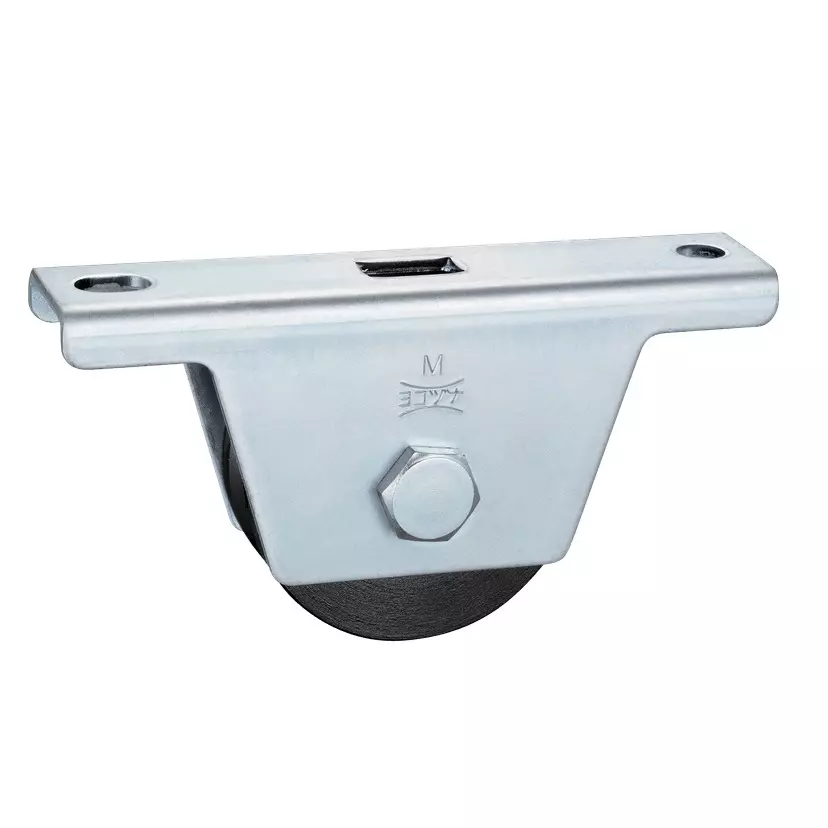

| Type of Product | Heavy-Duty Door Roller |
| Model No | K-20-90 |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Heavy-Duty Door Roller |
Model No |
K-20-90 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Wheel Material |
Cast Iron (FC) |
Dimensions W2 (mm) |
27 |
Monotaro ID |
53466937 |
Weight |
1.645 Kg |
Dimensions H (mm) |
100 |
TAKIGEN Code |
30762 |
Dimensions T (mm) |
4 |
Surface Finish Type |
Frame: Zinc Plated Chromate Treatment (MFZn-C), Wheels: Baked Paint (Black) |
Allowable Load (kN) |
(Per Two) 4.9 |
Dimension L (mm) |
180 |
Dimensions W1 (mm) |
38 |
Usage/Application |
Gates, Food Machinery and Outdoor Equipment |
Dimension d2 (Φmm) |
72 |
Dimension W4 (mm) |
6 |
Dimension W5 (mm) |
66 |
Dimension W3 (mm) |
12 |
Dimensions P (mm) |
146 |
Dimension d1 (Φmm) |
90 |
Bearing Material |
High Carbon Chromium Bearing Steel (SUJ) |
Frame Material |
Hot-Rolled Steel Plate (SPHC) |
