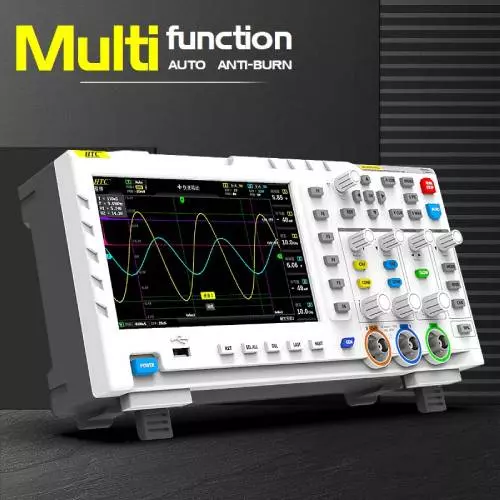

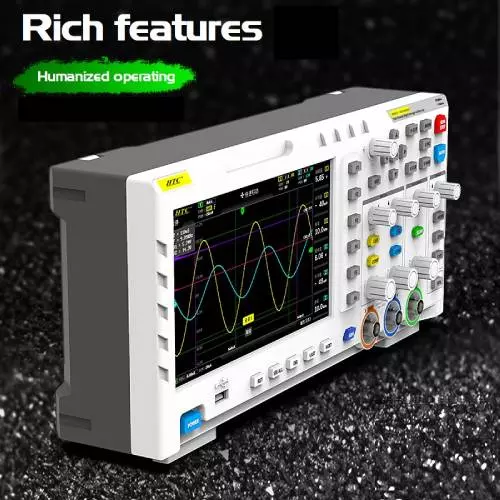

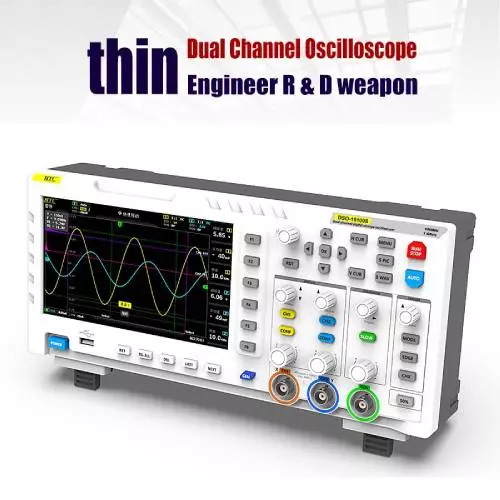

| Type of Product | Portable Oscilloscope |
| Bandwidth | 100 MHz |
| Model No | HTC-U9 |
| Trigger Mode | Single, Normal, Auto |
Type of Product |
Portable Oscilloscope |
Bandwidth |
100 MHz |
Model No |
HTC-U9 |
Trigger Mode |
Single, Normal, Auto |
Height |
145mm |
Width |
310mm |
Vertical Sensitivity |
50mV/div~500V/div |
Real-time |
1GS/s |
Trigger Edge |
Rising Edge / Falling Edge |
Horizontal Time Base Range |
50S/div ~ 10nS/div |
Power Consumption |
To be less than 30VA |
Coupling |
AC/DC |
Fuse |
F1, 6AL, 250V |
Maximum Test Voltage |
40V(1xprobe), 400V(10xprobe) |
Part No |
DSO-10100S |
Accessories |
100M Probe *2, USB Adapter, User Manual |
Power Voltage |
100~240VACRMS, 45~60Hz, CAT II |
Depth |
70mm |
Input Resistance |
1MΩ |
