| Type of Product | Digital Oscilloscope |
| Bandwidth | 100 MHz |
| Vertical Resolution | 14 Bit |
| Amplitude | 0.005 Vpp - 3 Vpp |
Type of Product |
Digital Oscilloscope |
Bandwidth |
100 MHz |
Vertical Resolution |
14 Bit |
Amplitude |
0.005 Vpp - 3 Vpp |

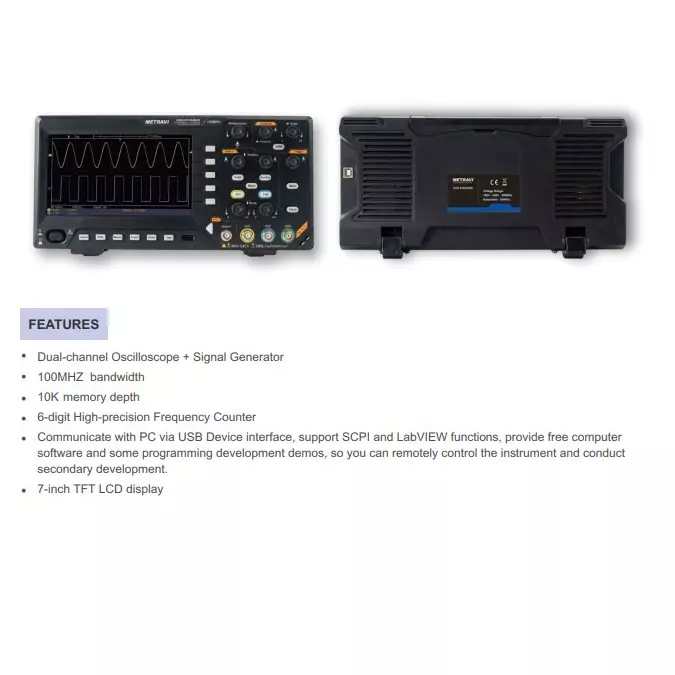

Features |
Dual-channel Oscilloscope + Signal Generator 100MHZ bandwidth 10K memory depth 6-digit High-precision Frequency Counter Communicate with PC via USB Device interface, support SCPI and LabVIEW functions, provide free computer software and some programming development demos, so you can remotely control the instrument and conduct secondary development. 7-inch TFT LCD display |
Model No |
DSO-9100AWG |
Waveform |
Standard Waveforms: Sine wave, Square wave, Ramp wave, Pulse wave, Arbitrary wave Arbitrary Waveforms: Sine, Exponential rise, Exponential decline, Gaussian more than 16 kinds Sine: 0.1 Hz - 10 MHz Square: 0.1 Hz - 2 MHz Ramp: 0.1 Hz - 1 MHz Arbitrary Waveform: 0.1 Hz - 1 MHz |
Trigger Type |
Edge, Video |
Input Impedance |
1M Ω± 2%, in parallel with 20 pF± 5 pF |
Interface |
USB Host and Device |
Length |
Waveform: 8 k |
Type |
With Arbitrary Function Generator |
Dimension |
301 mm × 152 mm × 70 mm |
Input Coupling |
DC, AC , Ground |
Weight |
1.1 Kg |
Sampling time |
Max 1 GSa/Sec |
Country of Origin |
India |
Record Length |
10K |
Color |
Black |
Attenuation |
Probe: 1X , 10X , 100X , 1000X |
Name of Manufacturer/Packer/Importer |
METRAVI |
Acquisition Model |
Normal, Peak Detect, Averaging |
Warranty Details |
1 Year Against Manufacturing Defects |
Warranty Duration |
1 Year |
Load impedance |
50 Ω |
