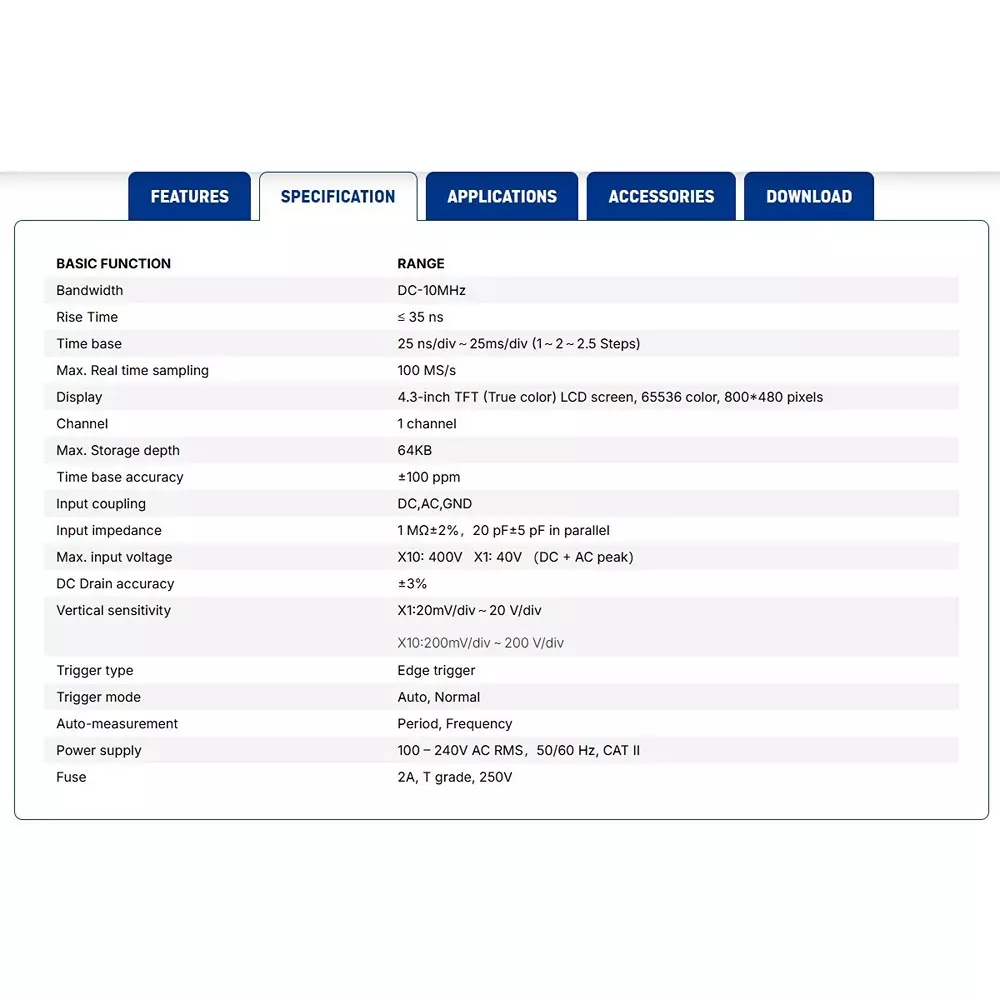

| Type of Product | Digital Storage Oscilloscope |
| Bandwidth | DC-10 MHz |
| Rise Time | ≤ 35 ns |
| Power Supply | 100 – 240 V AC RMS, 50/60 Hz, CAT II |
Type of Product |
Digital Storage Oscilloscope |
Bandwidth |
DC-10 MHz |
Rise Time |
≤ 35 ns |
Power Supply |
100 – 240 V AC RMS, 50/60 Hz, CAT II |
Model No |
DSO-5010 |
Trigger Mode |
Auto, Normal |
Trigger Type |
Edge Trigger |
Input Impedance |
1 MΩ ± 2%，20 pF ± 5 pF in parallel |
Time Base |
25 ns/div - 25 ms/div (1 - 2 - 2.5 Steps), Accuracy: ±100 ppm |
Vertical Sensitivity |
X1:20 mV/div - 20 V/div, X10:200 mV/div - 200 V/div |
Input Coupling |
DC, AC , Ground |
Package Contains |
1 x Digital Storage Oscilloscope, 1 x Probe, 1 x Power Cord, 1 x Manual. |
No. of Channels |
1 |
Fuse |
2 A, T grade, 250 V |
Display Type |
4.3-inch (109.22 mm) TFT (True color) LCD screen, 65536 color, 800x480 pixels |
Sampling time |
100 MS/s |
Country of Origin |
India |
Accuracy |
DC Drain: ±3% |
Name of Manufacturer/Packer/Importer |
METRAVI |
Maximum Input Voltage |
X10: 400 V X1: 40 V （DC + AC peak） |
Storage |
64 KB |
Parameters Measured |
Period, Frequency |
