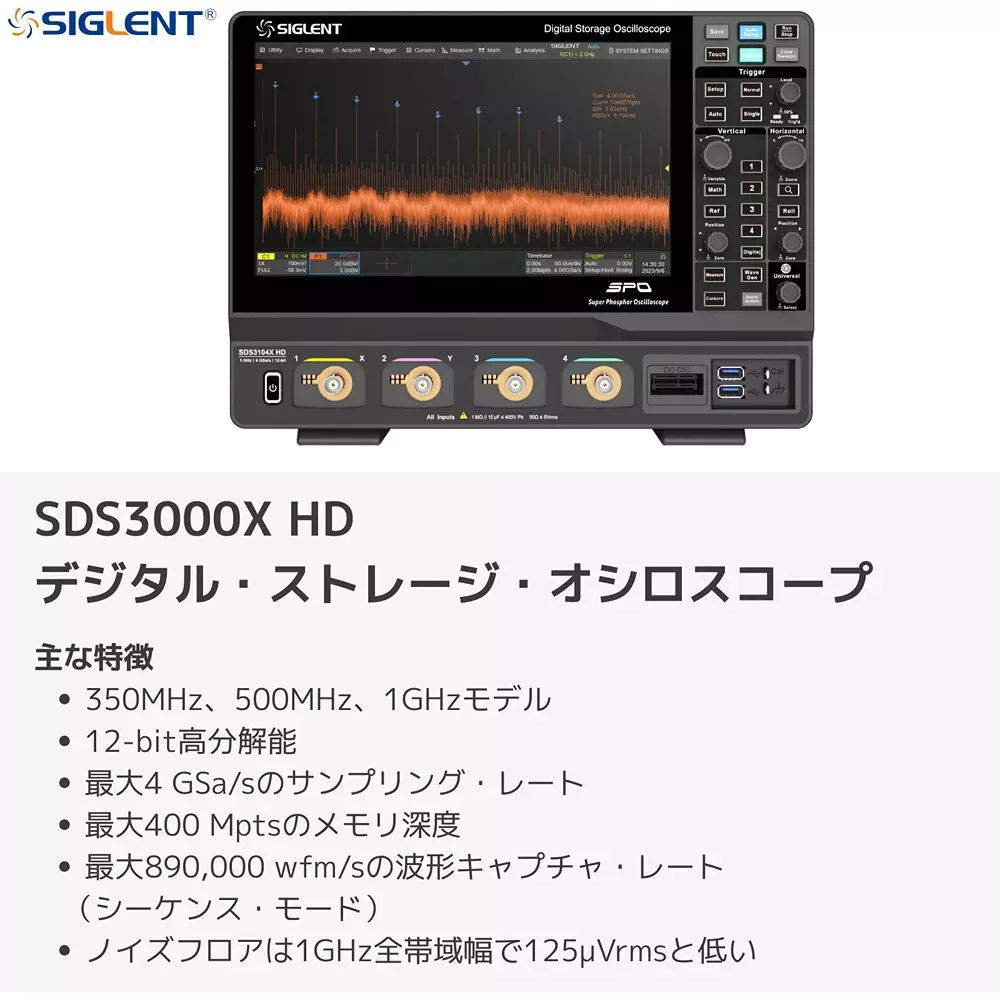

| Type of Product | Oscilloscope |
| Model No | SDS3054X HD |
| No. of Channels | 4ch |

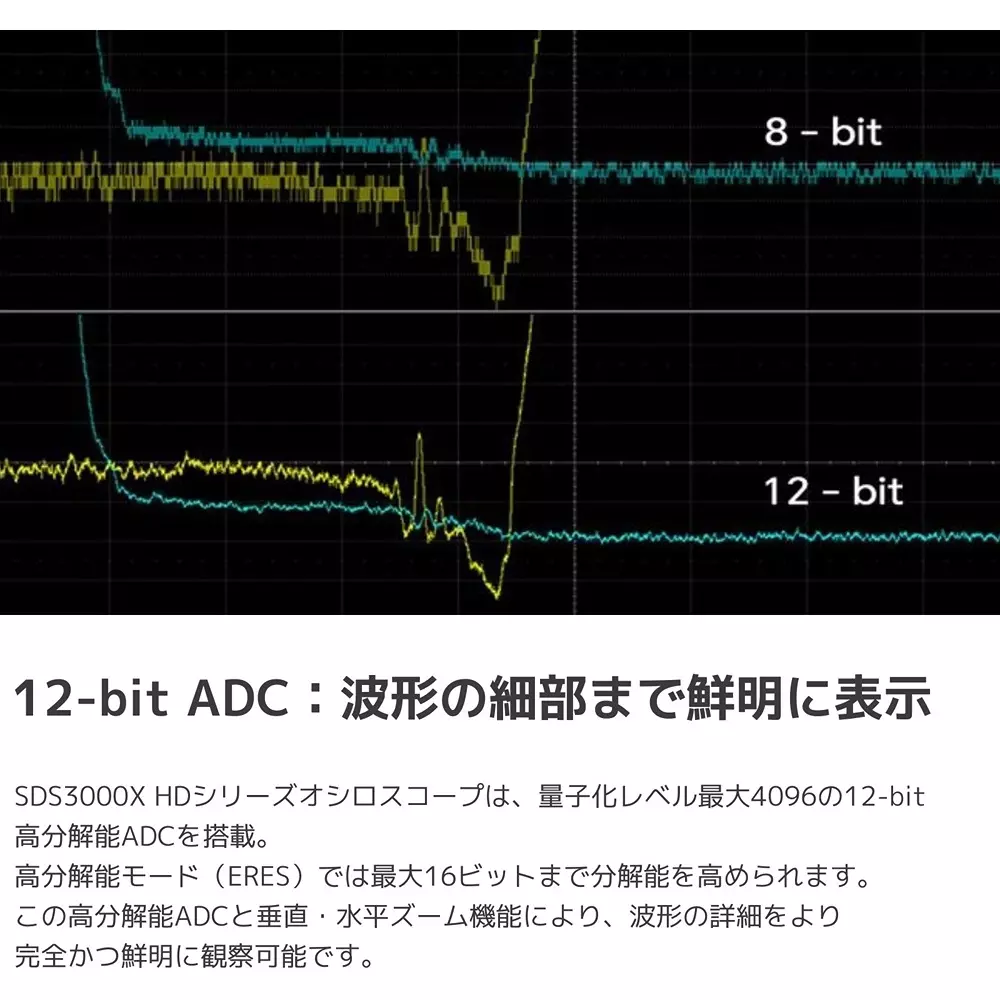

| Resolution | 12-16 bit |
Type of Product |
Oscilloscope |
Model No |
SDS3054X HD |
No. of Channels |
4ch |
Resolution |
12-16 bit |
Country of Origin |
Japan |
Monotaro ID |
7435009 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
SIGLENT |

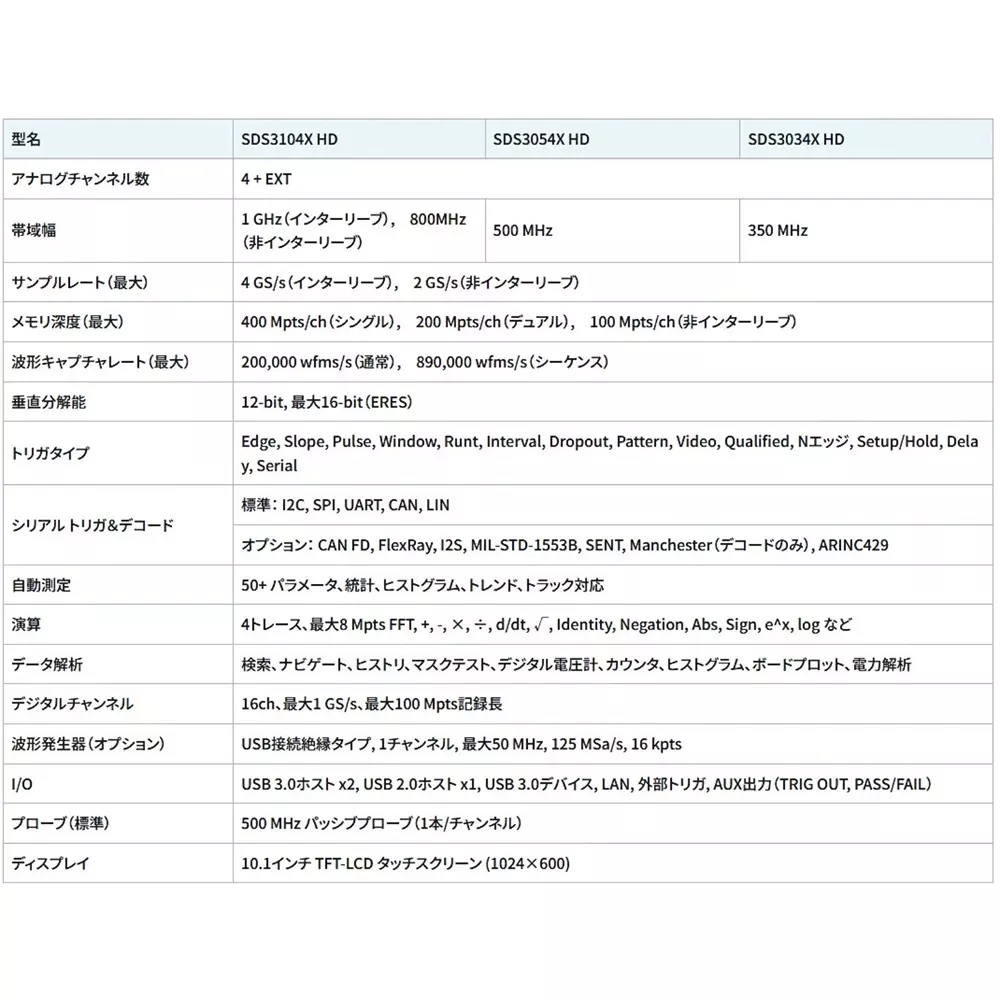

Specifications |

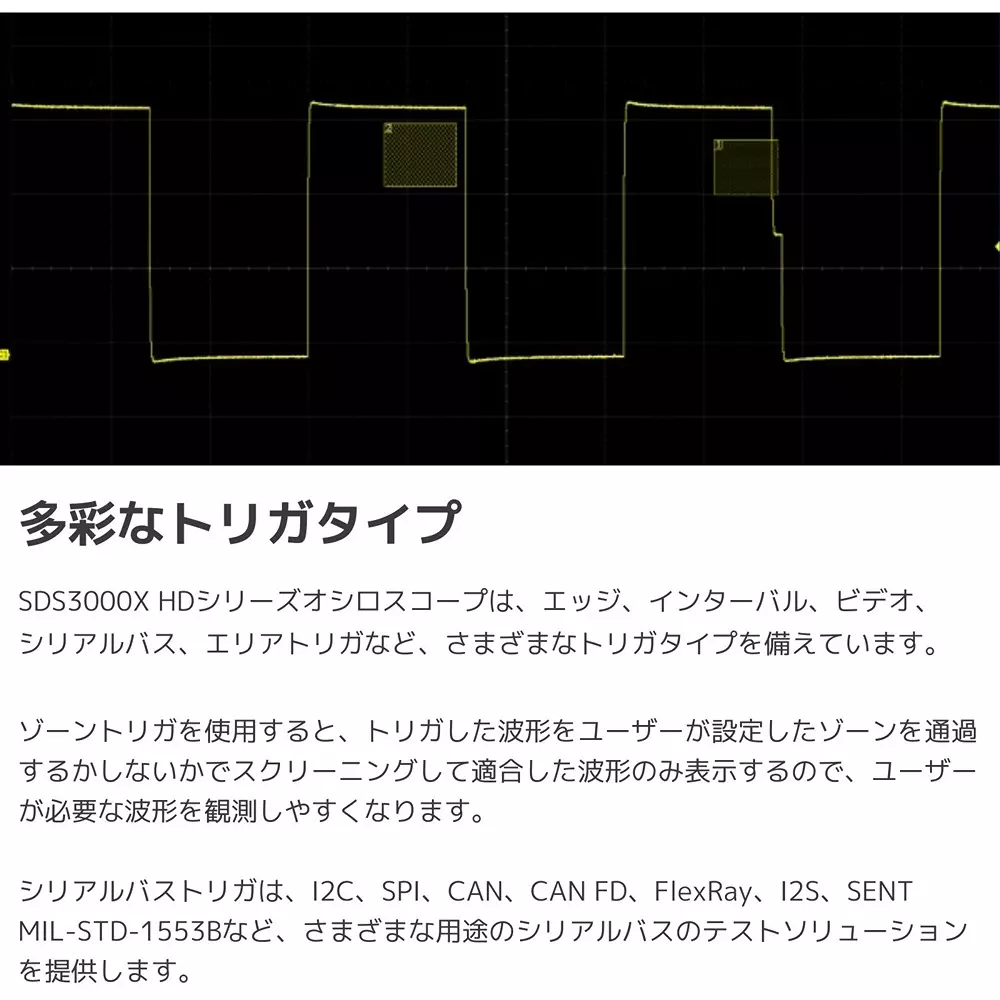

Maximum waveform capture rate: 200,000 wfm/s (normal mode), 890,000 wfm/s (sequence mode), FFT function, 12-bit to 16-bit (ERES), serial decoding functions: I2C, SPI, UART, CAN, LIN |
Mass (Kg) |
4.1 |
RoHS Directive |
Correspondence |
Frequency Band (MHz) |
500 |
Outer Dimensions |
317x236x149 mm |
