| Type of Product | CCTV Combo Kit |
| Image Sensor | 1/2.7 inch 2.4 Progressive Scan CMOS |
| Minimum Illumination | 0.04 Lux/F2.0 30IRE & 0Lux IR on |
| Power Consumption | Bullet: 2.7 W, DVR: <10 W |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
CCTV Combo Kit |
Image Sensor |
1/2.7 inch 2.4 Progressive Scan CMOS |
Minimum Illumination |
0.04 Lux/F2.0 30IRE & 0Lux IR on |
Power Consumption |
Bullet: 2.7 W, DVR: <10 W |
Model No |

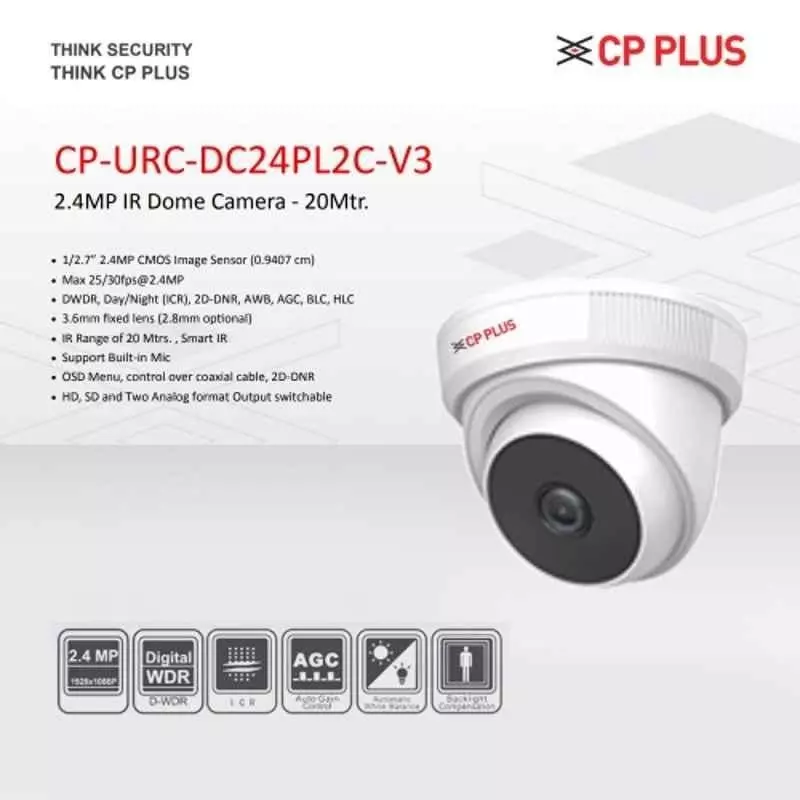

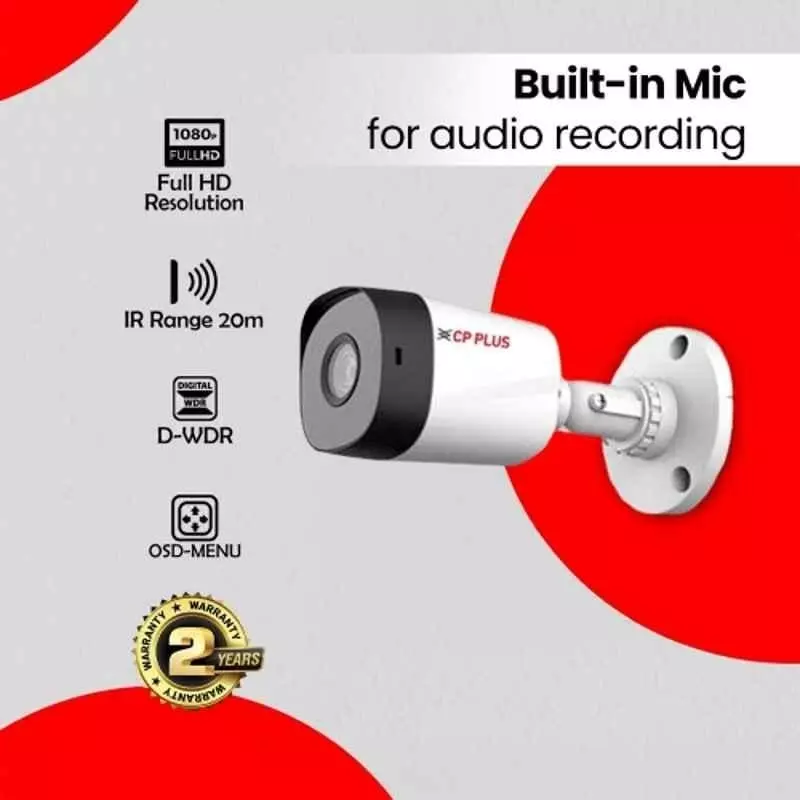

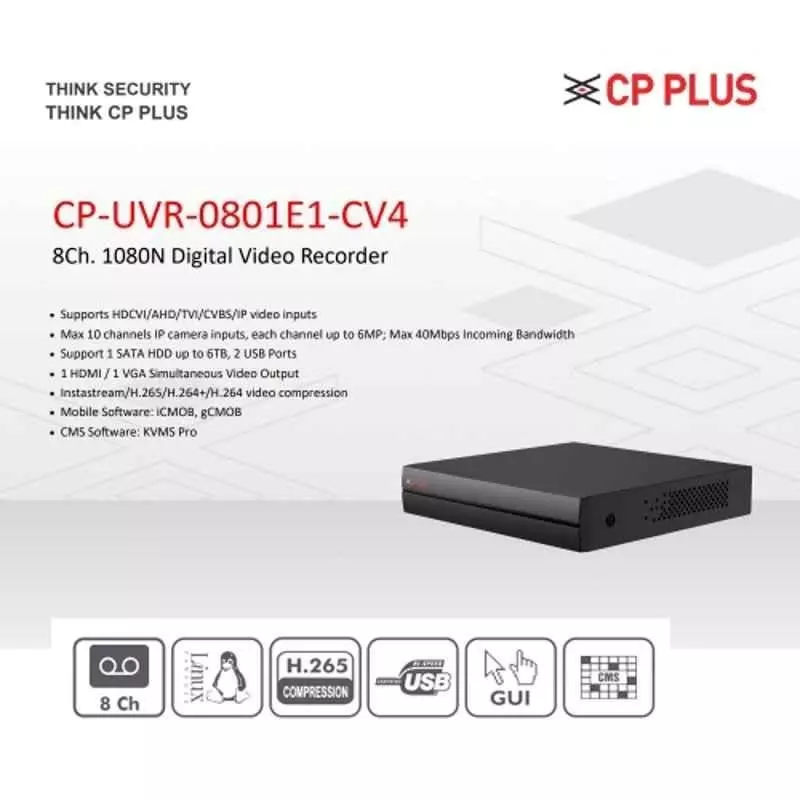

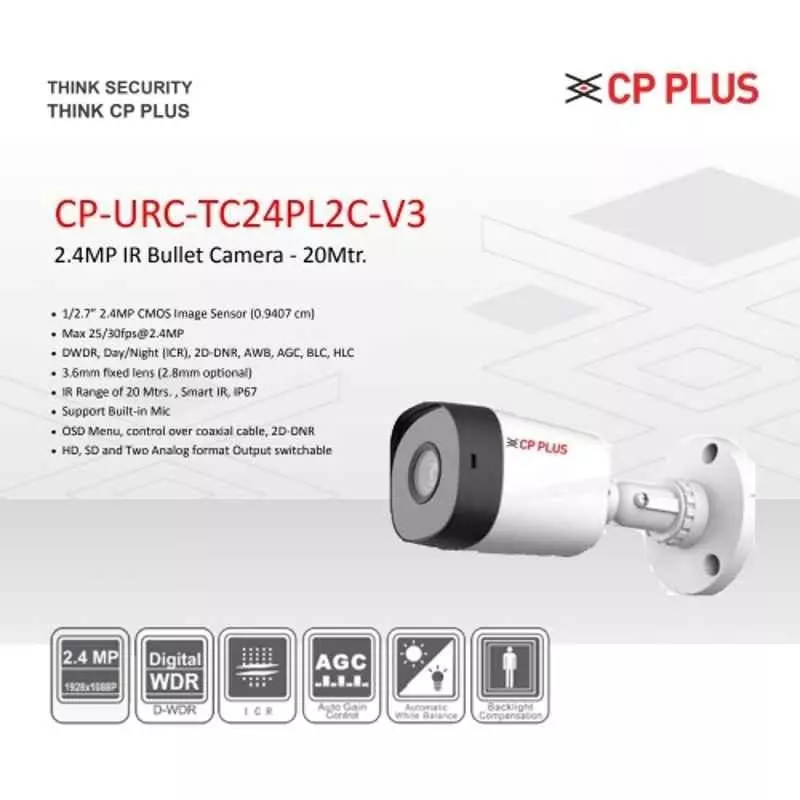

Dome Camera: CP-URC-DC24PL2C-V3, Bullet Camera: CP-URC-TC24PL2C-V3, DVR: CP-UVR-0801E1-CV4, SMPS: CP-LPS-PD08-12D |
Camera |
2.4 MP |
Operating System |
Embedded LINUX |
Lens Size |
3.6 mm |
No. of Channels |
DVR & SMPS: 8 |
Voltage |
12 V DC ±30%, DVR: 12 V DC |
Working Temperature |
DVR & SMPS: -10 to 45°C |
Operating Temperature |
-40 to 60°C |
Cable Length |
70 m |
IR Range |
20 m |
Working Humidity |
DVR: 10-90%, SMPS: 5 to 95% |
Package Contains |
8 Channel DVR 1 Bullet, 6 Dome Camera, 8 Channel SMPS, 70 m Cable 2 TB HDD & Connectors |
Country of Origin |
India |
Video Compression |
Instastream/H.265/H.264+/H.264 |
Storage Capacity |
2 TB |
audio bit rate |
64 Kbps Per Channel |
Ethernet |
1 RJ-45 Port (100 Mbps) |
Name of Manufacturer/Packer/Importer |
adtiya infotech ltd |
Video Resolution |
1920x1080p, 1280x1024p & 1280x720p |
Standard |
IP67 |
Input Voltage |
150-240 V AC |
Notes |
The Company can change its model number and product look without giving any prior notice in that scenario upgraded or same specification model will be provided |
Storage Humidity |
0-90% |
Software |
CMS: KVMS Pro |
Rated Power |
48 W |
Frequency Range |
50-60 Hz |
Video Streaming |
2.4MP at 25/30fps & 25/30/50/60fps at720P |
Recording Interval |
Default: 60 min, Pre-Record: 1-30 sec & Post-Record: 10-300 sec |
Video Recording |
Main Stream: 1st Channel 1080N/720P(1-25/30 fps) Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps), Sub-Stream: CIF/QCIF (1-15 fps) |
Mobile Software |
iCMOB & gCMOB |
Leakage Current |
0.008 A (Max) |
Casing Material |
Plastic |
Playback Function |
Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup, Selection & Digital Zoom |
Storage Temperature |
Bullet & SMPS: -40 to 60°C, DVR: -20 to 70°C |
