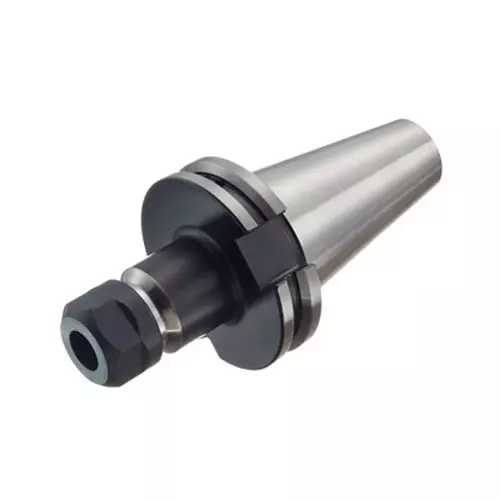

Sandvik Coromant ER20 ER Collet Chuck 21 mm Diameter M24 Thread Size, A1B14-50 20 070

Name: Sandvik Coromant ER20 ER Collet Chuck 21 mm Diameter M24 Thread Size, A1B14-50 20 070
Brand: Sandvik Coromant
SKU: TOO.CHU.233707173
Price: 16519 INR
Availability: InStock

Visit the Sandvik Coromant Store

EMI starts at ₹1468/month. No Cost EMI available.

Available offers

Flat ₹200 off on Order above ₹7,000 | Valid for NEW Business Users

View

Flat ₹100 off on Order above ₹5000 | Valid for NEW Business Users

View

Flat ₹500 off on Order above ₹15000 | Valid for NEW Business Users

View

Flat ₹400 off on Order above ₹10,000 | Valid for REPEAT Business User

View

Features

Type of Product	ER Collet Chuck
Style	Decentral Over Flange And Axial
Series	ER20
Overall Length	172 mm (6.7638 inch)

More Sandvik Coromant Chuck Collet products More Chuck Collet products

Warranty as per brand

100% Original Products

Secure payments

100% Buyer protection

Top Brands

specifications

description

Type of Product	ER Collet Chuck
Style	Decentral Over Flange And Axial
Series	ER20
Overall Length	172 mm (6.7638 inch)
Diameter	21 mm
Country of Origin	China
Name of Manufacturer/Packer/Importer	Kantilal & co
Thread Size	M24
Ordering ID	A1B14-50 20 070
Body Length	51 mm
Rotational Speed	12,000 1/min
Connection	AD/B Central/Flange
Body Diameter	34 mm
Weight	2.960 kg
Body Length (inch)	2.0039 inch
Taper Angle	0 °
Body Diameter (inch)	1.3386 inch
Body Material	Steel
Standard	ISO7388-1
