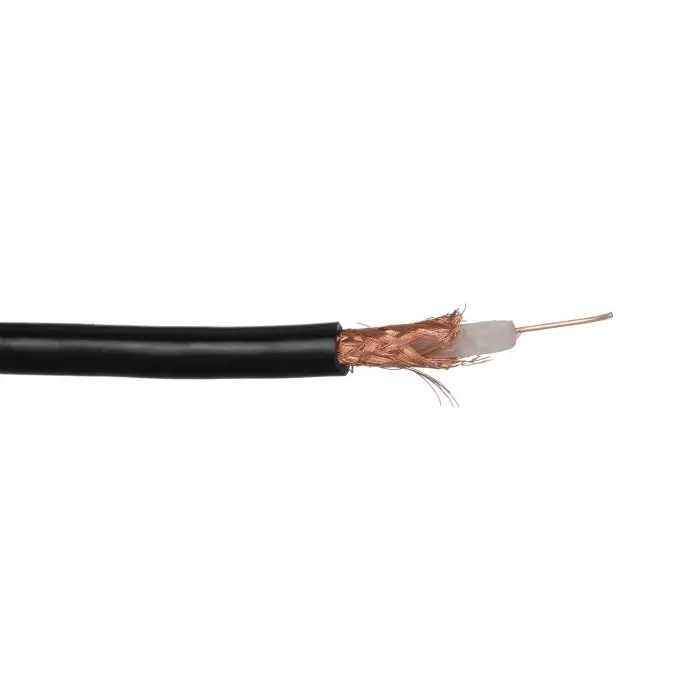

Alpha Wire Coaxial Cable 1/22 Core Strand Black 30 m Length, 9062A BK005

Ships within 15 days

Alpha Wire Coaxial Cable 1/22 Core Strand Black 30 m Length, 9062A BK005

Alpha Wire Coaxial Cable 1/22 Core Strand Black 30 m Length, 9062A BK005

Name: Alpha Wire Coaxial Cable 1/22 Core Strand Black 30 m Length, 9062A BK005
Brand: Alpha Wire
SKU: ELE.COA.729222812
Price: 6725 INR
Availability: InStock

Visit the Alpha Wire Store

EMI starts at ₹598/month. No Cost EMI available.

Available offers

Flat ₹200 off on an order above ₹6,000. Valid for New GST Customers.

View

Flat ₹200 off on an order above ₹5,000. Valid for your next order.

View

Flat ₹500 off on an order above ₹10,000. Valid for your next order.

View

Flat ₹100 off on an order above ₹4,000. Valid for New GST Customers.

View

Features

Insulation Material	PE
Conductor Material	Bare Copper
Color	Black
Attenuation	13dB@1GHz, 8dB@400 mHz

More Alpha Wire Co-Axial Cables products More Co-Axial Cables products

Warranty as per brand

100% Original Products

Secure payments

100% Buyer protection

Top Brands

specifications

Insulation Material	PE
Conductor Material	Bare Copper
Color	Black
Attenuation	13dB@1GHz, 8dB@400 mHz
Capacitance	43.3 pF/m
Series	MEC COAXIAL
Type of Product	Coaxial Cable
Model No	9062A BK005
Length	30 m
No. of Strands	1
Sheath Material	Polyvinyl Chloride PVC
Country of Origin	United States
Characteristic impedance (Ω)	93 Ω
Operating Temperature Range	-20 to +80 °C
Outer Diameter	6.15 mm
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
Strands	22 AWG
Coaxial Type	RG62A/U
Conductor Strand Type	Solid
Velocity Ratio	0.83
Terminated/Unterminated	Unterminated
Name of Manufacturer/Packer/Importer	RS Components & Controls (I) Ltd
Core Strands	1/22
