| Item Code | W4-E73Q-1A0F |
| Cable Type | Coaxial |
| Impedance | 50 Ohm |
| Conductor Material | Brass (Cu) |
Item Code |
W4-E73Q-1A0F |
Cable Type |
Coaxial |
Impedance |
50 Ohm |
Conductor Material |
Brass (Cu) |
Cable Length |
30 cm |
Frequency |
Up to 5.9 GHz |
Type of Product |

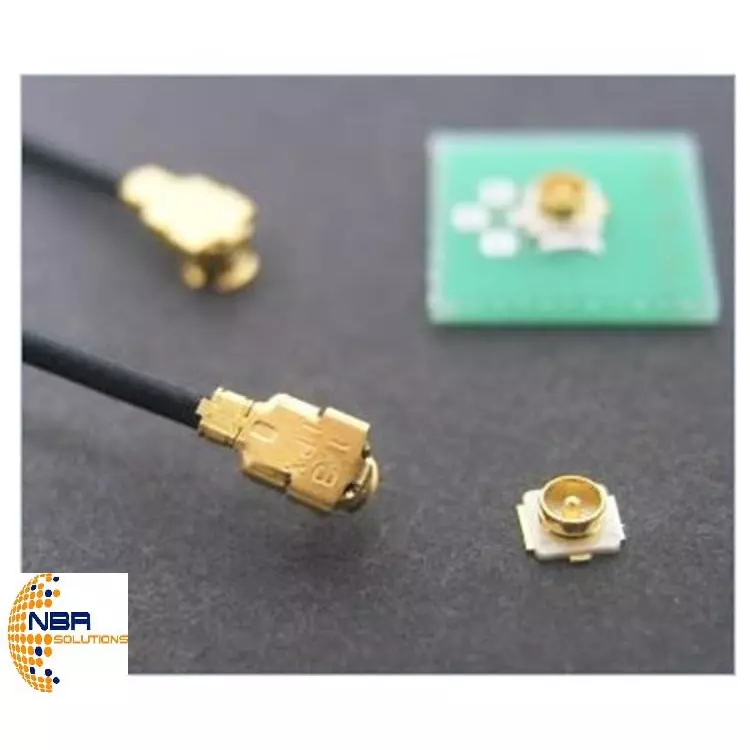

RF Pigtail Extension Cable |
Model No |
CA0609 |
Country of Origin |
India |
Connector Gender |
Female-to-Female |

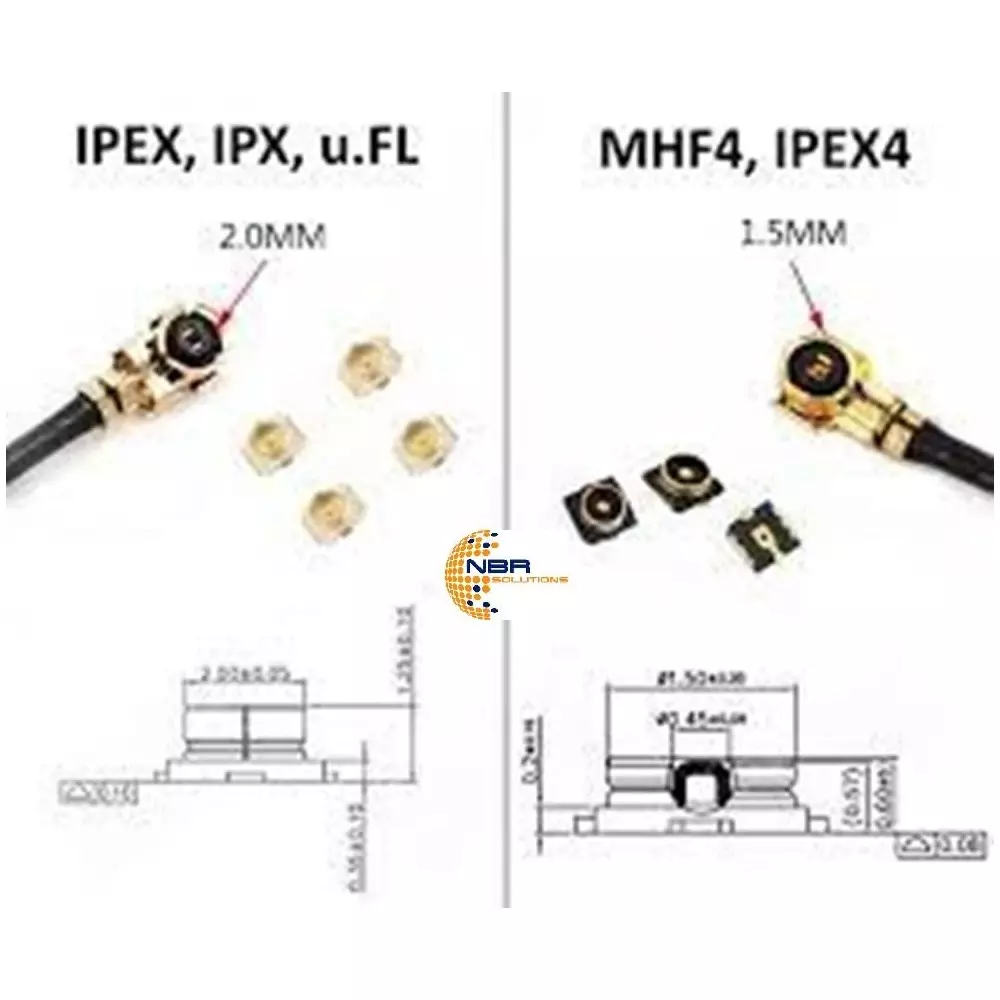

Connector 1 |
U.FL1 / UFL / IPEX1 / MHF1 Female |
Connector 2 |
U.FL4 / MHF4 / IPEX4 Female |
Name of Manufacturer/Packer/Importer |
NBR Solutions |
Connector Type |
UFL |
Special Features |
High Speed |
Compatible Device |
PCB |
Operating Temperature |
-40 °C to +65 °C |
Cable Diameter |
1.13 mm |
VSWR |
≤ 1.3 |
Cable Shielding |
Double Shielded |
Breakdown Voltage |
> 5 V |
Mating Cycle |
> 500 |
Insulation Resistance |
≥ 500 MΩ |
Storage Temperature |
-40 °C to +80 °C |
