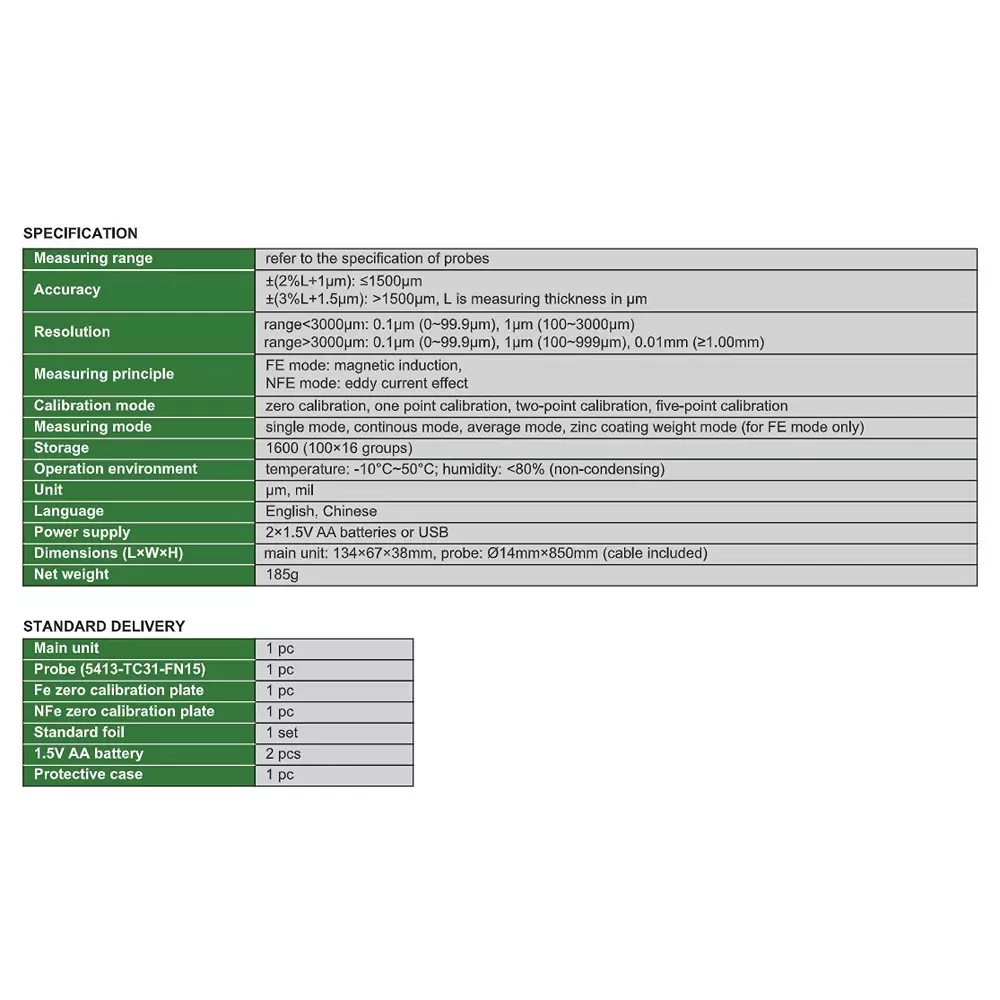

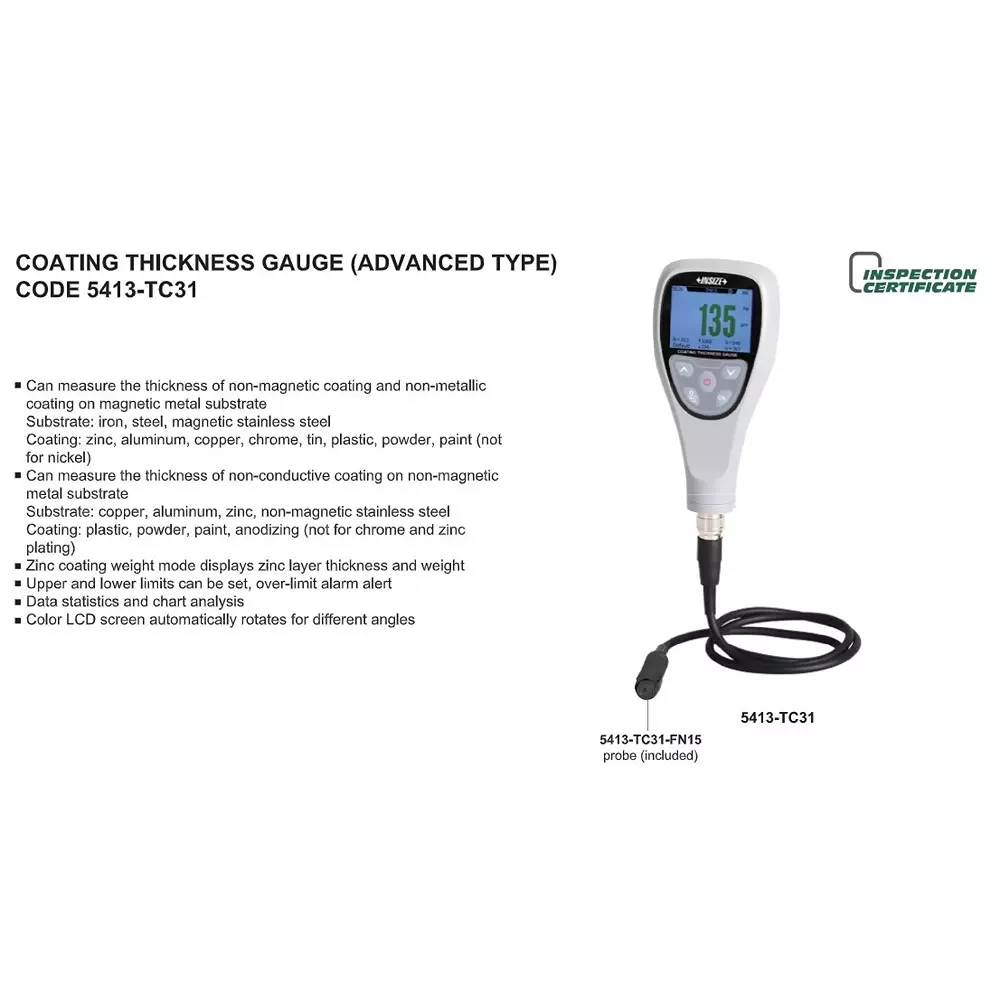

| Model No | 5413-TC31 |
| Type of Product | Coating Thickness Gauge |
| Resolution | 0.1 μm (0-99.9 μm), 1 μm (100-1500 μm) |
| Accuracy | ±(2% L + 1 µm): ≤1500 µm, ±(3% L + 1.5 µm): >1500 µm |
Model No |
5413-TC31 |
Type of Product |
Coating Thickness Gauge |
Resolution |
0.1 μm (0-99.9 μm), 1 μm (100-1500 μm) |
Accuracy |
±(2% L + 1 µm): ≤1500 µm, ±(3% L + 1.5 µm): >1500 µm |
Dimension |
Main Unit: 134x67x38 mm, Probe: 14 mm x 850 mm (Cable Included) |
Calibration |
Zero Calibration, 1 Point, 2 Point, 5 Point Calibration |
Features |
Zinc coating weight mode displays zinc layer thickness and weight Upper and lower limits can be set, over-limit alarm alert Data statistics and chart analysis Color LCD screen automatically rotates for different angles |
Range |
0-1500 µm |
Package Contains |
1 x Main Unit, 1 x Fe Zero Calibration Plate, 1 x NFe Zero Calibration Plate, 1 Set x Standard Foil, 2 x 1.5 V AA Battery, 1 x Protective Case, 1 x Probe (5413-TC31-FN15) |
Type |
Advanced Type |
Measuring Mode |
Single, Continuous, Average, Zinc Coating Weight (For FE Mode Only) |
Power Supply |
2x1.5 V AA Batteries or USB |
Operating Temperature |
-10°C to 50°C |
Storage |
1600 (100x16 groups) |
Units |
μm, mil |
Operating Humidity |
<80% RH (Non-Condensing) |
Country of Origin |
China |
Name of Manufacturer/Packer/Importer |
INSZIE |
Net Weight |
185 g |
Language |
English, Chinese |
Data Transmission |
No |
Measuring Principle |
FE Mode: Magnetic Induction, NFE Mode: Eddy Current Effect |
